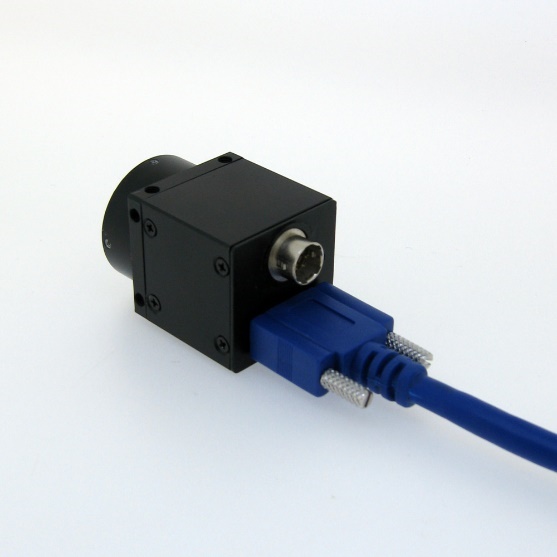

CatchBEST Jelly6 MU3HS230M/C USB3.0 Ultra High Speed Industrial Digital Camera

Jelly6 MU3HS230M/C

Jelly6 series USB 3.0 ultra high-speed industrial digital cameras adopt the latest USB3.0 technology, high speed Sony sensor and 128M built-in hardware frame buffer, the speed is much faster than USB2.0 and normal USB3.0 digital cameras, the resolution range from 2.3MP to 20.0MP.

Delivery

FOB

minimum order

1 set

Supply Ability

10000set / Month

Country of Origin

Beijing,China

Stock Time

28Day

Quantity

Contact Now

add to cart

Introduction

Jelly6 series USB 3.0 ultra high-speed industrial digital cameras adopt the latest USB3.0 technology, high speed Sony sensor and 128M built-in hardware frame buffer, the speed is much faster than USB2.0 and normal USB3.0 digital cameras, the resolution range from 2.3MP to 20.0MP. These cameras have high sensitivity, high dynamic range, hardware frame buffer and high-speed features. Jelly6 series digital cameras can be widely used in machine vision and a variety of image acquisition areas.

Features

1. From 2.3MP to 20.0MP mono/color industrial digital cameras;
2. Global shutter with 164fps@2.3MP, 90fps@4.0MP, 75fps@5.0MP, rolling shutter with 15fps@20.0MP;
3. With built-in 128M hardware frame buffer, make sure no frame lost, support more cameras work together;
4. Mirco USB3.1 High-speed interface, Bandwidth is 5Gb/s, plug and play, no need external power supply;
5. Support GPIO opto-isolated external trigger, External trigger delay setting does not affect the acquisition frame rate;
6. Provide completed API SDK for users’ secondary development, support VC, VB and C# development language;
7. Driver support Windows 32&64 bit operation system, drivers for Linux-Ubuntu & Android operation system can be customized;
8. CNC machining high precision aluminum alloy shell, small size 29×29×30mm, weight 45g;

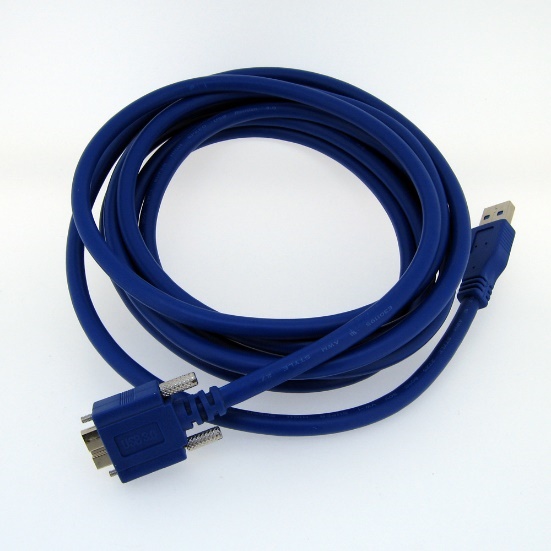

9. 3m USB3.0 cable comes with fixing screws.

Application

Jelly6 series USB3.0 ultra high-speed industrial cameras are mainly designed for machine vision and various high speed image acquisition areas. They can be used for Gel imaging, License image capture, Medical diagnosis, Microscopy imaging, Notes image capture, Industrial production line image capture, Fingerprint & palmprint image capture, Desktop image, High speed vehicle license plate capture, Outdoor Monitoring, iris capture and etc..

Specification

Model	MU3HI130M/C (IGYYO)	MU3HS230M/C (SGYYO)	MU3HI401M/C (IGYYO)	MU3HS500M/C (SGYYO)	MU3HS2000M/C (SRYYO)
Color/Mono	Mono/color	Mono/color	Mono/color	Mono/color	Mono/color
Sensor Type	CMOS	CMOS	CMOS	CMOS	CMOS
Sensor Model	ISG1307	Sony IMX174	ISG4006	Sony IMX250	Sony IMX183
Shutter	Global	Global	Global	Global	Rolling
Sensor Size	1/2 inch	1/1.2 inch	1 inch	2/3 inch	1 inch
Pixel Size	4.8×4.8μm	5.86×5.86μm	5.5×5.5μm	3.45×3.45μm	2.4×2.4μm
MaxResolution	1280×1024	1936×1216	2048×2048	2464×2056	5472×3648
Frame Rate	210fps	130fps	84fps	71fps	18fps
Image Output	Micro USB3.1, Bandwidth 5Gb/s
Power Supply	USB3.1 Power Supply, 300-500mA@5V
Frame Buffer	128MB frame buffer
Input/Output	Opto-isolated GPIO, 1 channel external trigger input, 1 channel flash output, 1 channel 5V power supply input / output
Main Function	Image display, image capture (bmp,jpg,tiff), video capture(compressor is optional)
ProgrammableControl	Preview and capture ROI, SKIP/Binning mode, Gain, Exposure etc.
White Balance	Auto / Manual
Exposure	Auto / Manual
Image Format	Support 8bit, 24bit, 32bit Image Preview and Capture, Save as “Jpeg”, “Bmp”, “Tiff” format
Driver Support	Twain, DirectShow
Operation System	SupportWindows XP/7/8/10 32&64 bit Operation System (Linux and Android Operation System customize development)
SDK	SupportVC, VB, C#, DELPHI developing language, supportLABVIEW, OPENCV, HALCON, MIL Software
Lens Port	C-mount(CS/M12 is optional)
WorkingTemperature	0°C~60°C
Storage Temperature	-30°C~70°C
Camera Dimension	29mm(height)×29mm( width)×30mm(length)
Camera Weight	54g(High-precision CNC aluminum alloy shell)
Warranty	3 years
Accessories	Color cameras come with IR cut filter(mono camera does not have filter), 3m USB cable with fix screws, 6-pin Hirose GPIO connector, 1 CD with software and SDK.

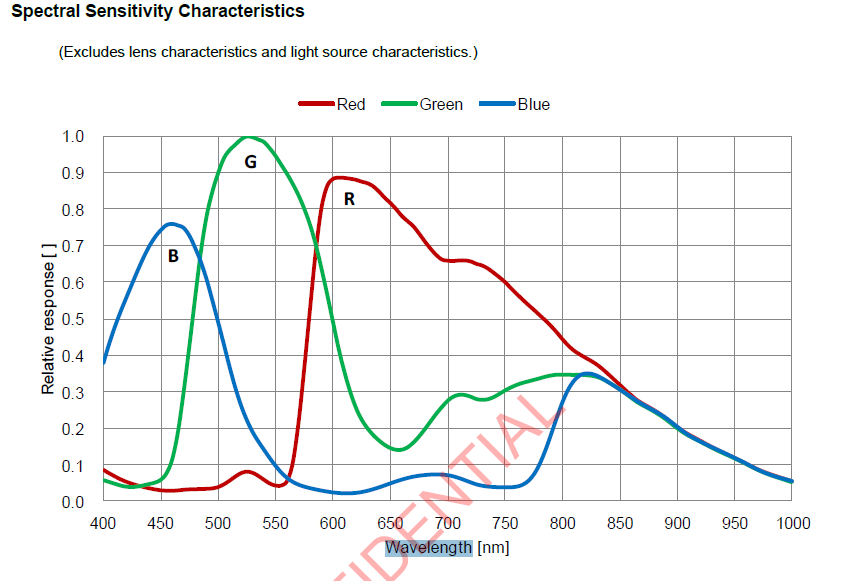

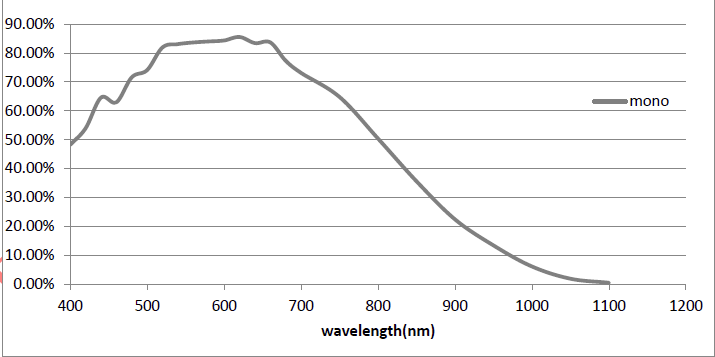

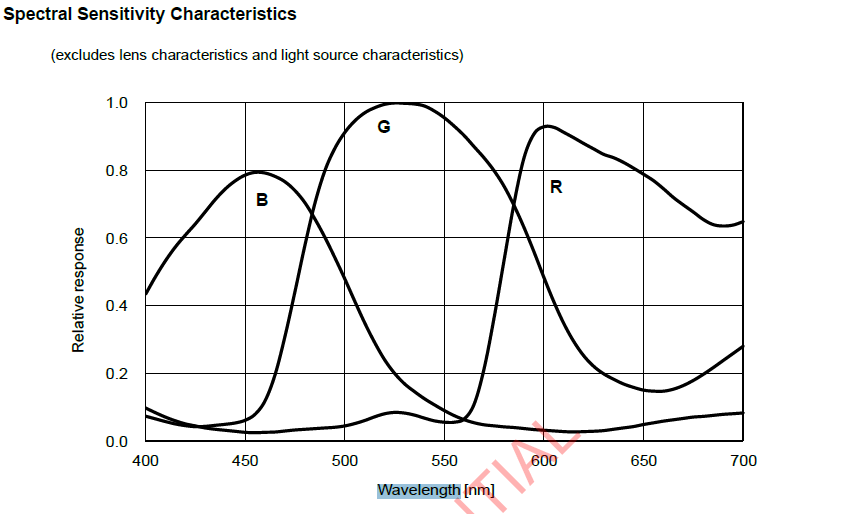

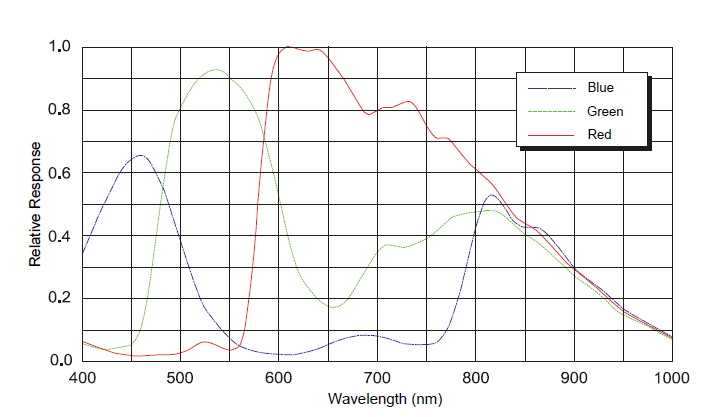

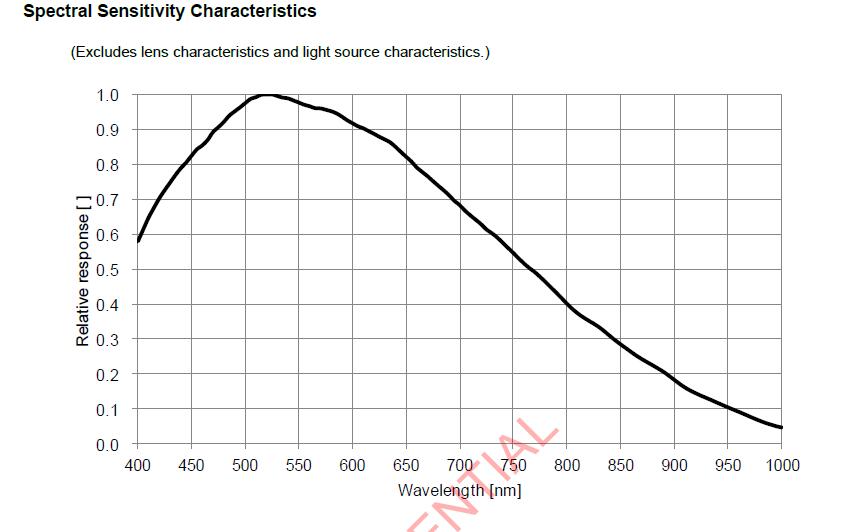

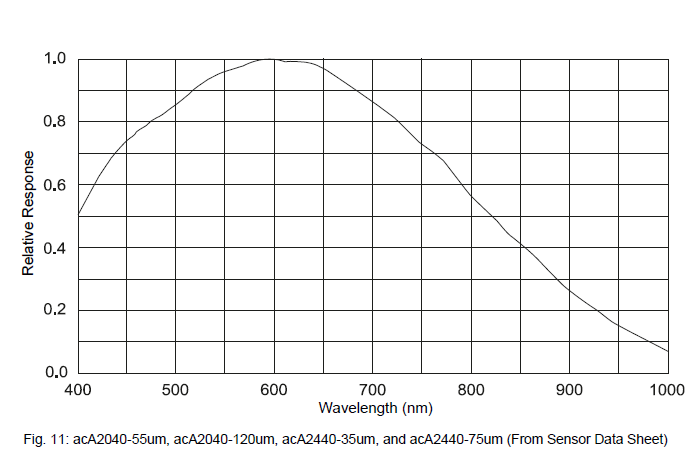

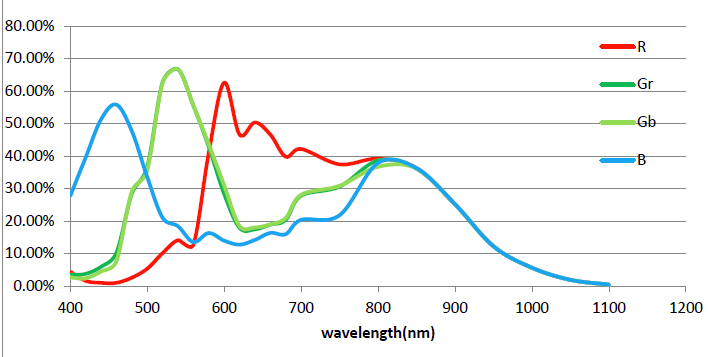

Spectral Response Curve

MU3HS230M MU3HS230C

MU3HI401M MU3HI401C

MU3HS500M MU3HS500C

MU3H2000M/C

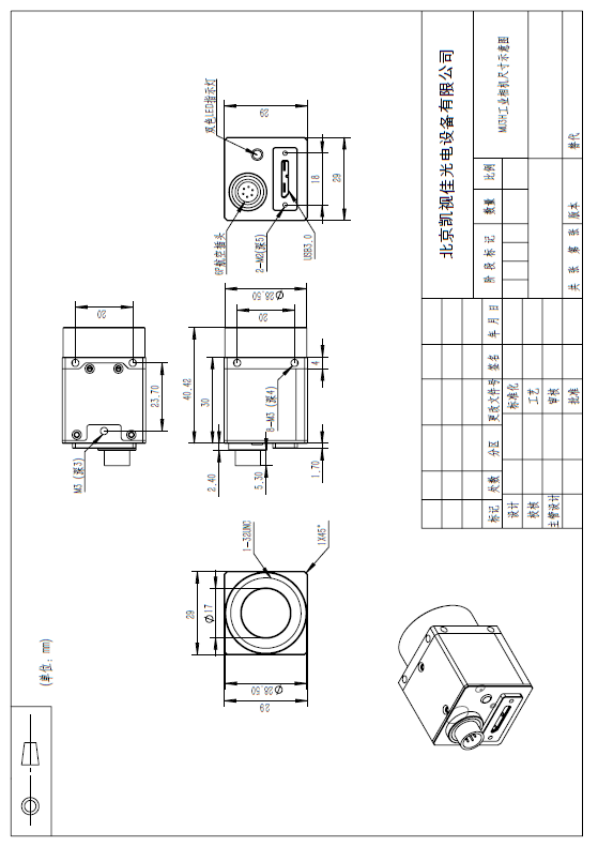

Dimension

Unit: mm
