Trinocular Inverted Metallurgical Microscope

BS-6005 Trinocular Inverted Metallurgical Microscope

BS-6005

BS-6005 series inverted metallurgical microscopes adopt professional metallurgical objective and plan eyepiece to provide superior image, high resolution and comfortable observation.

Delivery

FOB

minimum order

1 set

Supply Ability

10000set / Month

Country of Origin

Beijing,China

Stock Time

28Day

Quantity

Contact Now

add to cart

Introduction

BS-6005 series inverted metallurgical microscopes adopt professional metallurgical objective and plan eyepiece to provide superior image, high resolution and comfortable observation. They combine bight field, dark field and polarizing observation. They are widely used in teaching and research of metallographic analysis, semiconductor silicon wafer inspection, geology mineral analysis, precision engineering and similar fields.

Feature

1.Dark field objectives are available, make observation in dark & bright field.
2. Wide view field eyepiece, view field up to 22mm for comfortable observation.

3. 12V/50W Halogen lamp provide high intensity illumination, can detect the details better.

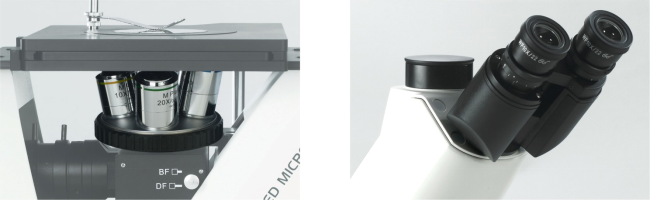

4. High quality bright field, bright field&dark field metallurgical objective.

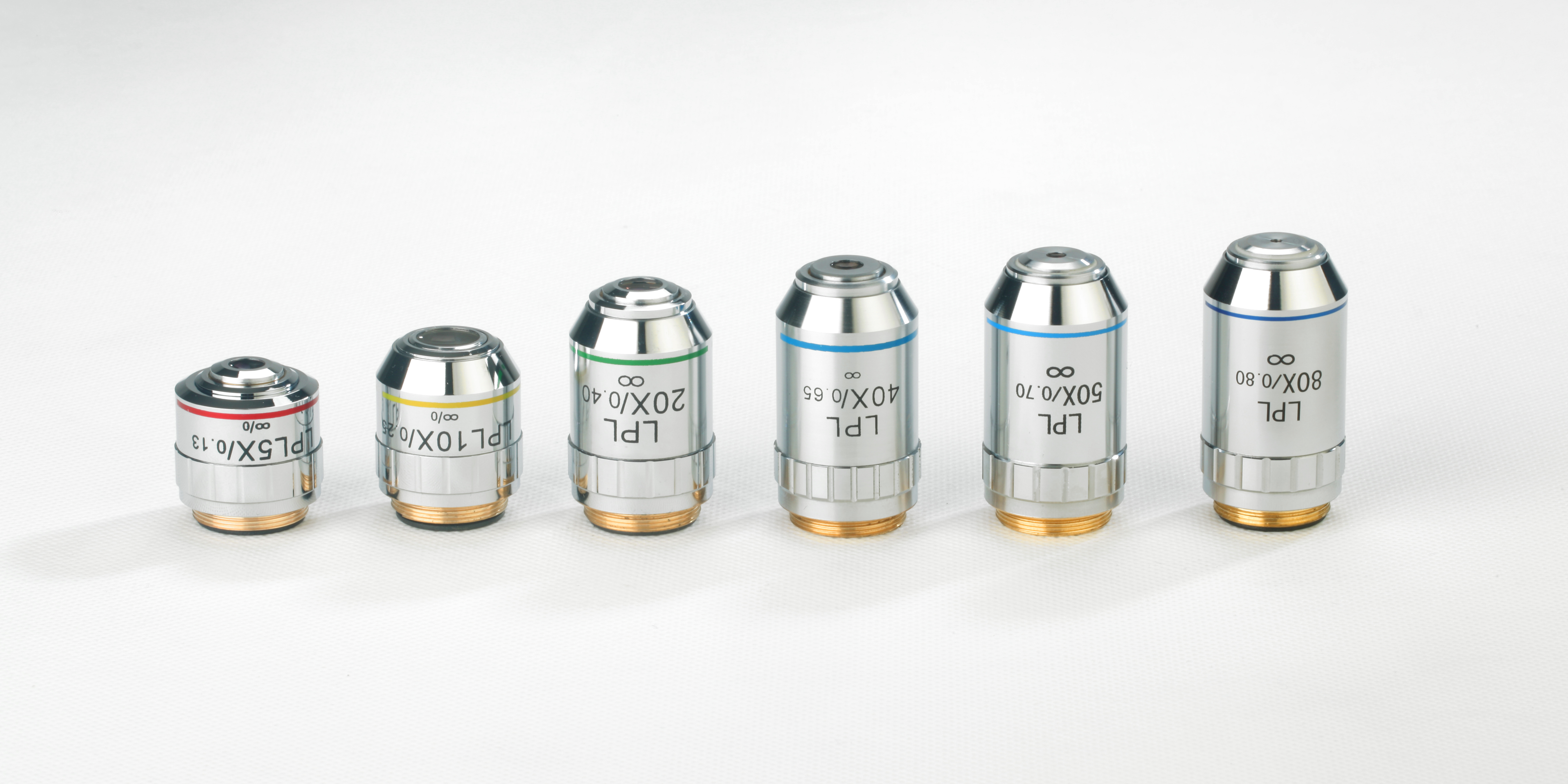

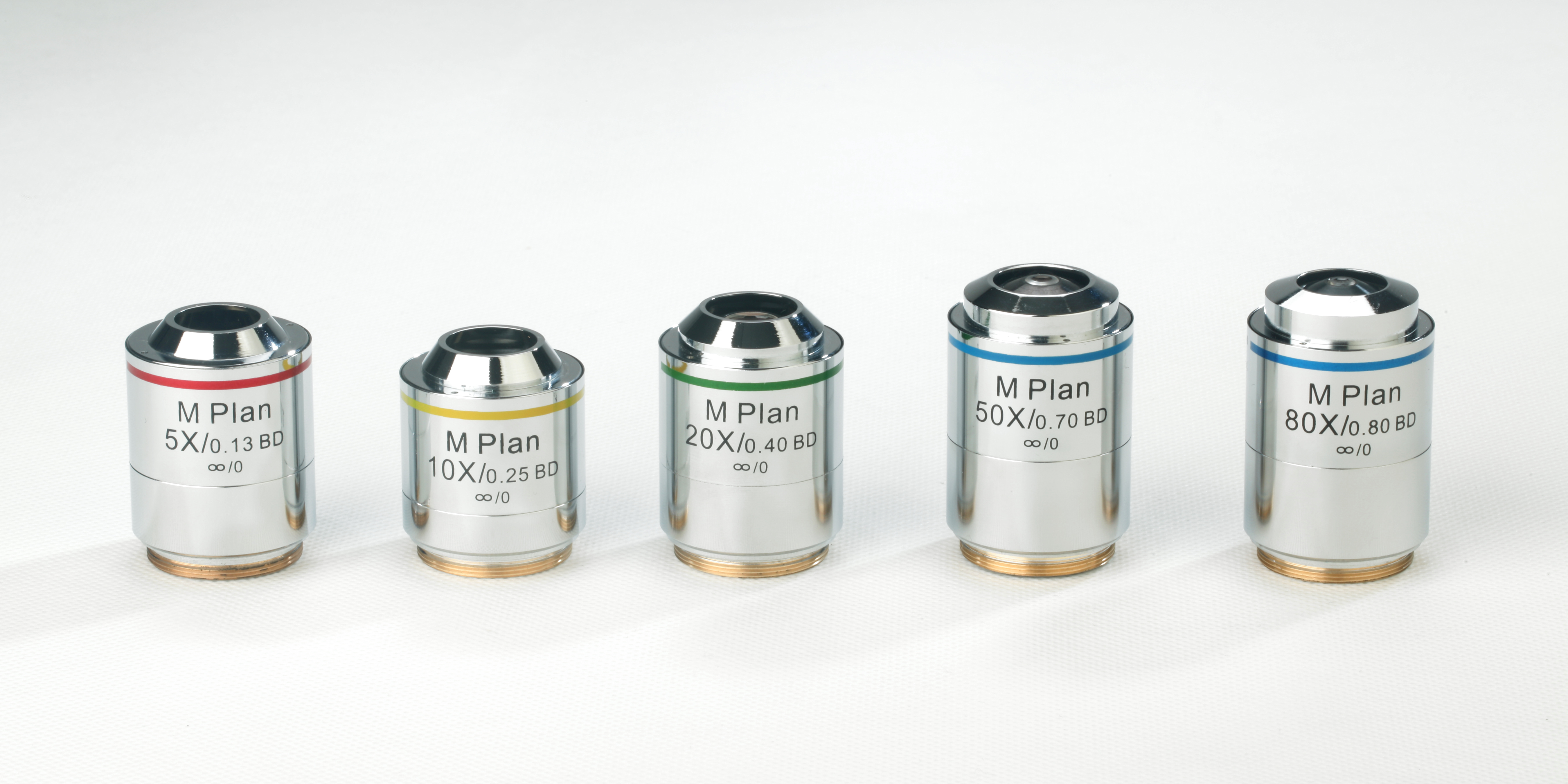

Metallurgical LWD Infinite Plan Objectives Metallurgical LWD Infinite Plan Objectives for Bright & Dark Field

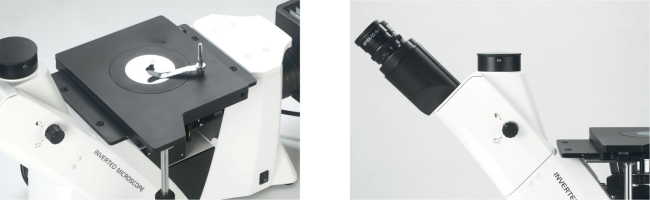

5. Large size (210 mm×180mm) three-layer working stage, more choice for samples.
6. Light distribution (both): 100 : 0 (100% for eyepiece); 80 : 20 (80% for trinocular head and 20% for eyepiece), easy to use camera and have high definition and high resolution images.

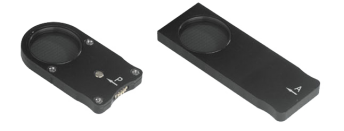

7. Polarizing set is standard.

Specification

Item	Specification	BS-6005	BS-6005D
Optical System	Infinite optical system	●	●
Viewing Head	Seidentopf trinocular viewing head, 45° inclined, Interpupillary distance: 48-76mm, Light distribution (both): 100: 0 (100% for eyepiece), 80:20 (80% for trinocular head and 20% for eyepiece)	●	●
Eyepiece	WF10×／22mm (adjustable)	●	●
Eyepiece	WF10×／22mm (adjustable, reticule 0.1mm)	●	●
Metallurgical LWD Infinite Plan Objectives	LPL 5×/0.13, WD=16.04mm	●	○
	LPL 10×/0.25, WD=18.48mm	●	○
	LPL 20×/0.40, WD=8.35mm	●	○
	LPL 50×/0.70, WD=1.95mm	●	○
	LPL 80×/0.80, WD=0.85mm	○	○
	LPL 100×/0.9(Dry), WD=1.1mm	○	○
Metallurgical LWD Infinite Plan Objectives for Bright & Dark Field	M Plan 5×/0.13 BD, WD=16.04mm		●
	M Plan 10×/0.25 BD, WD=18.48mm		●
	M Plan 20×/0.40 BD, WD=8.35mm		●
	M Plan 50×/0.70 BD, WD=1.95mm		●
Nosepiece	Quintuple nosepiece	●
Nosepiece	Quadruple nosepiece (specially for bright&dark field objectives)		●
Focusing	Low position coaxial coarse and fine adjustment. With tightness adjustment. Coarse stroke per rotation 10mm, fine stroke per rotation 0.2mm; fine division 2μm.	●	●
Stage	Three-layers mechanical stage, size 210mm×180mm, right hand low position control, Moving range 50mm× 50mm, scale 0.1mm	●	●
Illumination	Reflected Koehler illumination with iris diaphragm and centerable field diaphragm, 12V/50W Halogen (Input voltage: 100V-240V)	●	●
Illumination	Reflected Koehler illumination with iris diaphragm and centerable field diaphragm, 5W LED lamp (Input voltage: 100V-240V)	○	○
Auto power on-off system	Power off automatically upon user leaving 10 minutes, power on automatically upon user approaching	○	○
Polarizing kit	Polarizer and the analyzer	●	●
Filter	Blue filter	●	●
Filter	Green/ Amber/ Grey	○	○
Video Adapter	1× C-mount adapter, focus adjustable	○	○
	0.75× C-mount adapter, focus adjustable	○	○
	0.5× C-mount adapter, focus adjustable	○	○
Packing	Packing Size: 660mm×590mm×325mm, Gross Weight: 17 kgs, Net Weight: 12.5 kgs	●	●

Note: ● Standard Outfit, ○ Optional

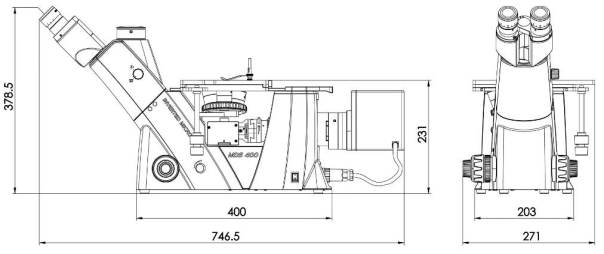

Dimension

Unit: mm
