BS-5062B Binocular Polarizing Microscope

BS-5062B
BS-5062 series polarizing microscopes feature a highly robust construction and first class optics to provide a long life and excellent quality images.
Delivery
FOB
minimum order
1 set
Supply Ability
10000set / Month
Country of Origin
Beijing,China
Stock Time
28Day
Quantity
Contact Now
add to cart

Introduction

BS-5062 series polarizing microscopes feature a highly robust construction and first class optics to provide a long life and excellent quality images. Accessories like Gypsum slide, Mica slide, Quartz wedge and Mechanical stage are available. The microscopes are specifically designed for geology, minerals and material areas. They also can be used in chemical fiber, semiconductor and pharmaceutical industries.

Feature

1.Excellent Infinite Optical System.
2. Widely used in geology, Mineralogy, Fossil fuel exploration.
3. Single polarization, othorgonal polarization or conoscopic observation is available.



Professional dedicated polarizing binocular / trinocular head can keep the cross in the right-hand eyepiece always same when the eyepiece tubes turned.

Bertrand lens
360° rotatable analyzer(with division, can be locked), can be moved out of the light path.

Centering Nosepiece

Centering Revolving Round Stage

Polarizer

Swing-out Condenser

Compensator

Polarizing Attached Mechanical Stage

Application

BS-5062 series polarizing microscopes are ideal instrument in geology, petroleum, coal, mineral, chemicals, semiconductor and pharmaceutical inspection fields. They are widely used in academic demonstration and scientific research areas.

Specification

Item

Specification

BS-5062B

BS-5062BR

BS-5062BTR

Optical System

Infinite Optical System

●

●

●

Viewing Head

Seidentopf Binocular Head, inclined at 30°, 360° Rotatable, Interpupilary Distance: 48-76mm.

●

●

●

Seidentopf Trinocular Head, inclined at 30°, 360° Rotatable, Interpupilary Distance: 48-76mm, Light distribution (both) 100: 0 (100% for eyepiece), 80:20 (80% for trinocular head and 20% for eyepiece)

○

○

○

Eyepiece

WF10×/22mm

●

WF10×/22 mm (Reticule 0.1mm)

●

WF10×/20 mm

●

●

WF10×/20 mm (Reticule 0.1mm)

●

●

Infinite Strain Free Plan Achromatic Objective (Transmitted)

4×/0.10       W.D=12.1mm

●

●

10×/0.25      W.D=4.64mm

●

●

20×/0.40(S)   W.D=2.41mm

●

●

40×/0.66(S)   W.D=0.65mm

●

●

60×/0.80 (S)   W.D=0.33mm

○

○

100×/1.25 (S, Oil)   W.D=0.12mm

○

○

LWD Infinite Strain Free Plan Achromatic Objective (Reflected)

5×/0.13 (S)      W.D=24.23mm

●

○

10×/0.25 (S)      W.D=18.48mm

●

○

20×/0.40 (S)      W.D=8.35mm

●

○

50×/0.70 (S)     W.D=1.95mm

●

●

100×/0.90 (S, Dry)     W.D=1.1mm

○

○

Nosepiece

Backward Quintuple nosepiece, center adjustable

●

●

●

Analyzer Unit

Rotatable 360°, module type, can be locked

●

●

●

Bertrand Lens

Built In, Center Adjustable

●

●

●

Optical Compensator

λ Slip(First Class Red), 1/4λ Slip, Quartz Wedge (Ⅰ- ⅣClass)

●

●

●

Revolving Round Stage

Diameter Φ156mm, Rotatable 360°, Center Adjustable, Division 1°, Vernier Division 6’

●

●

●

Attachable Mechanical Stage

Polarizing Attached Mechanical Stage with X-Y movement

○

○

○

Focusing

Coaxial Coarse & Fine Adjustment, Range 25mm, Fine Stroke 0.2mm, Fine Division 0.002mm

●

●

●

Swing-out Condenser

N.A.0.9/0.13 swing out condenser

●

●

Polarizing Unit

with Scale, Rotatable 360°, Can Be Locked

●



●

Transmitted Illumination

5W LED lamp (Input voltage:100V～240V)

●

●

Koehler Illumination 6V/30W Halogen Lamp (Input voltage: 100V～240V)

○

○

Reflected Illumination

5W LED lamp (Input voltage:100V～240V)

●

●

With field diaphragm, aperture diaphragm, polarizer,

12V/50W halogen lamp (Input voltage:100V～240V)

○

○

Filter

Blue

●

●

●

Amber

○

○

○

Green

○

○

○

Neutral

○

○

○

C-mount

1× (Focus adjustable)

○

○

○

0.75× (Focus adjustable)

○

○

○

0.5× (Focus adjustable)

○

○

○

Packing

Packing size 565mm×310mm×410mm, Gross Weight 12.5kgs, Net Weight 10kgs

●

Packing size 750mm×360mm×450mm, Gross Weight 15kgs, Net Weight 11kgs

●

Packing size 750mm×360mm×450mm, Gross Weight 16kgs, Net Weight 12kgs

●

Note: ● Standard Outfit, ○ Optional

Item

Specification

BS-5062T

BS-5062TR

BS-5062TTR

Optical System

Infinite Optical System

●

●

●

Viewing Head

Seidentopf Binocular Head, inclined at 30°, 360° Rotatable, Interpupilary Distance: 48-76mm.

○

○

○

Seidentopf Trinocular Head, inclined at 30°, 360° Rotatable, Interpupilary Distance: 48-76mm, Light distribution (both) 100: 0 (100% for eyepiece), 80:20 (80% for trinocular head and 20% for eyepiece)

●

●

●

Eyepiece

WF10×/22mm

●

WF10×/22 mm (Reticule 0.1mm)

●

WF10×/20 mm

●

●

WF10×/20 mm (Reticule 0.1mm)

●

●

Infinite Strain Free

Plan Achromatic Objective (Transmitted)

4×/0.10       W.D=12.1mm

●

●

10×/0.25      W.D=4.64mm

●

●

20×/0.40(S)   W.D=2.41mm

●

●

40×/0.66(S)   W.D=0.65mm

●

●

60×/0.80 (S)   W.D=0.33mm

○

○

100×/1.25 (S, Oil)   W.D=0.12mm

○

○

LWD Infinite Strain Free Plan Achromatic Objective (Reflected)

5×/0.13 (S)      W.D=24.23mm

●

○

10×/0.25 (S)      W.D=18.48mm

●

○

20×/0.40 (S)      W.D=8.35mm

●

○

50×/0.70 (S)     W.D=1.95mm

●

●

100×/0.90 (S, Dry)     W.D=1.1mm

○

○

Nosepiece

Backward Quintuple nosepiece, center adjustable

●

●

●

Analyzer Unit

Rotatable 360°, module type, can be locked

●

●

●

Bertrand Lens

Built In, Center Adjustable

●

●

●

Optical Compensator

λ Slip(First Class Red), 1/4λ Slip, Quartz Wedge (Ⅰ- ⅣClass)

●

●

●

Revolving Round Stage

Diameter Φ156mm, Rotatable 360°, Center Adjustable, Division 1°, Vernier Division 6’

●

●

●

Attachable Mechanical Stage

Polarizing Attached Mechanical Stage with X-Y movement

○

○

○

Focusing

Coaxial Coarse & Fine Adjustment, Range 25mm, Fine Stroke 0.2mm, Fine Division 0.002mm

●

●

●

Swing-out Condenser

N.A.0.9/0.13 swing out condenser

●

●

Polarizing Unit

with Scale, Rotatable 360°, Can Be Locked

●



●

Transmitted Illumination

5W LED lamp (Input voltage:100V～240V)

●

●

Koehler Illumination 6V/30W Halogen Lamp (Input voltage:100V～240V)

○

○

Reflected Illumination

5W LED lamp (Input voltage:100V～240V)

●

●

With field diaphragm, aperture diaphragm, polarizer,

12V/50W halogen lamp (Input voltage:100V～240V)

○

○

Filter

Blue

●

●

●

Amber

○

○

○

Green

○

○

○

Neutral

○

○

○

C-mount

1× (Focus adjustable)

○

○

○

0.75× (Focus adjustable)

○

○

○

0.5× (Focus adjustable)

○

○

○

Packing

Packing size 565mm×310mm×410mm, Gross Weight 12.5kgs, Net Weight 10kgs

●

Packing size 750mm×360mm×450mm, Gross Weight 15kgs, Net Weight 11kgs

●

Packing size 750mm×360mm×450mm, Gross Weight 16kgs, Net Weight 12kgs

●

Note: ● Standard Outfit, ○ Optional

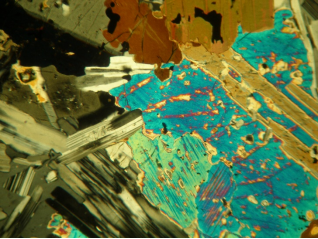

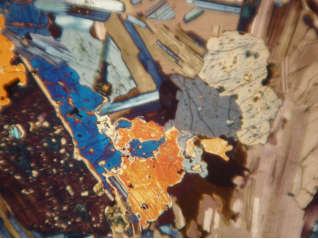

Sample Images



Dimension

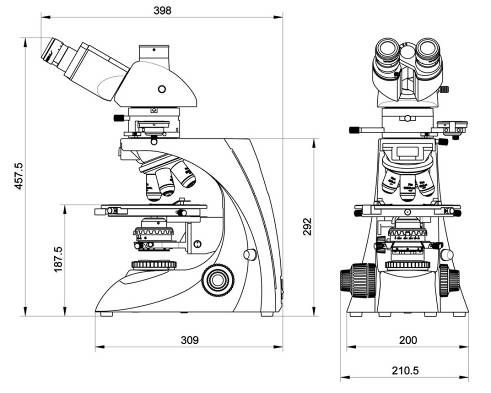

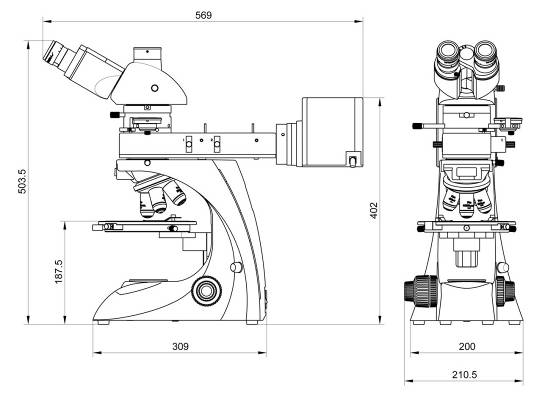

                                                BS-5062T                                                                   BS-5062TR

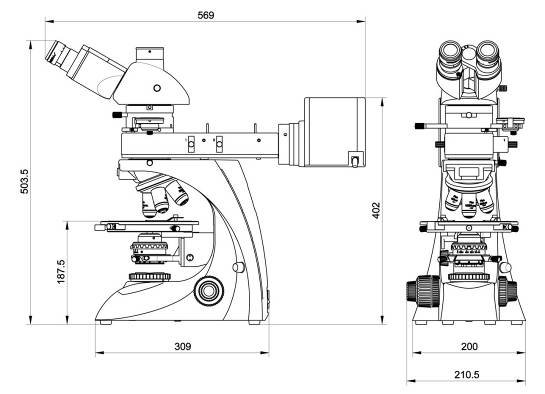

                                               BS-5062TTR
