BS-2063FB Fluorescence Binocular Microscope
Introduction
BS-2063F Series Fluorescence Microscope is specifically designed for the daily routine work in the demanding applications of education, pathology investigation, clinical and laboratory usage. Innovative LED as fluorescence illumination source, provide excellent image with easy and comfortable usage experience.
Feature
Dark field condenser (dry) available to 4X-60X Objective
Dark field condenser (oil) available to 100X Objective
Infinite Plan Objectives
Specification
Item | Specification | BS-2063 FB | BS-2063 FT |
Optical System | Color Corrected Infinite Optical System | ● | ● |
Viewing Head | Seidentopf Binocular Head, Inclined 30°, Rotatable 360°, Interpupilary Distance: 48-76mm | ● | |
Seidentopf Trinocular Head, Inclined 30°, Rotatable 360°, Interpupilary Distance: 48-76mm, Light distribution (both): 100: 0 (100% for eyepiece) 80:20(80% for trinocular head and 20% for eyepiece) | ● | ||
Eyepiece | WF10×/22mm (Diopter adjustable), tube diameter: 30mm | ● | ● |
WF15×/16mm(Diopter adjustable) | ○ | ○ | |
WF10×/22mm with 0.1mm eyepiece micrometer | ○ | ○ | |
Infinite Plan Achromatic Objective | 4×/0.10, W.D.=12.10mm | ● | ● |
10×/0.25, W.D.=4.64mm | ● | ● | |
20×/0.40(S), W.D.=2.41mm | ● | ● | |
40×/0.65 (S), W.D.=0.65mm | ● | ● | |
100×/1.25(S, Oil), W.D.=0.12mm | ● | ● | |
2.5×/0.07 W.D.=8.47mm | ○ | ○ | |
60×/0.80(S) W.D.=0.33mm | ○ | ○ | |
100×/1.15(S,Water) W.D.=0.19mm | ○ | ○ | |
Nosepiece | Backward Quintuple Nosepiece | ● | ● |
Stage | Rackless Double Layers Mechanical stage, Size: 182mm×140mm, Travel Range: 77mm×52mm, Scale: 0.1mm, Two Slide Holder | ● | ● |
Condenser | Swing out condenser N.A.0.9/0.13, withiris diaphragm | ● | ● |
Focusing | Coaxial Coarse and Fine Focusing Knob, Coarse Focusing Travel Range: 25mm, Coarse Stroke 42.4mm/rotation, Fine Stroke 0.2mm/Rotation, Fine division: 2µm | ● | ● |
Koehler Illumination | 6V/30W Halogen Lamp with Field Diaphragm, Brightness Adjustable | ○ | ○ |
3W LED Illumination with Field Diaphragm, Brightness Adjustable | ○ | ○ | |
Dark Field Unit | Darkfield condenser (Dry), apply to 4×- 40× objective | ○ | ○ |
Dark Field Condenser (Oil), apply to 100× objective | ○ | ○ | |
Polarizing Unit | Analyzer and Polarizer | ○ | ○ |
Phase Contrast Unit | Quintuple hole turret unit with 10×/20×/40×/100× phase contrast objective | ○ | ○ |
Independent slot with 10×/20×/40×/100× phase contrast objective | ○ | ○ | |

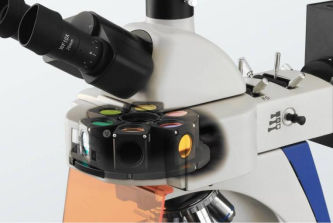

Fluorescent Attachment | 100W Mercury Epi-Fluorescence unit (Six-hole disc, Auramine O/Uv/V/B/G and another filters) | ○ | ○ |
3W LED Epi-Fluorescence unit (Six-hole disc, B &G filters) | ● | ● | |
Auramine O /U/V filters and corresponding fluorescence lamps | ○ | ○ | |
Video Adapter | 1× C-mount (Used for DSLR cameras or large format microscope camera) | ○ | |
0.5× C-mount (focus adjustable, used for microscope camera) | ● | ||
Photo Adapter | Used for CANON／NIKON／OLYMPUS/ SONY DLSR cameras | ○ | |
Filter | Blue | ● | ● |
Green/Amber/Grey | ○ | ○ | |
Power Supply | Wide voltage input: 100V～240V | ● | ● |
Packing | 1 carton/set, Packing Size: 755mm×340mm×440mm, Gross Weight: 17 kgs, Net Weight: 15 kgs | ● | ● |
Note:"●"In Table Is Standard outfits,"○"Is Optional Accessories.
Fluorescent filters
Auramine O | Wavelength (nm) |
Exciter | 470Sp |
Dichroic | 480DRLP |
Barrier | 485LP |
B Excitation | Wavelength (nm) |
Exciter | 470/37 |
Dichroic | 505LP |
Barrier | 515LP |
G Excitation | Wavelength (nm) |
Exciter | 500-550 |
Dichroic | 575 |
Barrier | 590 |
Uv Excitation | Wavelength (nm) |
Exciter | 330-380 |
Dichroic | 400 |
Barrier | 435 |
V Excitation | Wavelength (nm) |
Exciter | 380-420 |
Dichroic | 430 |
Barrier | 460 |

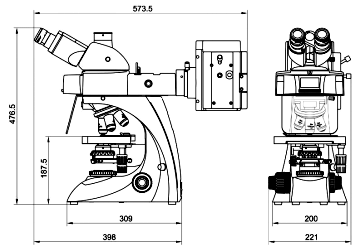

Dimension
Unit: mm
