BS-2063B Binocular Biological Microscope
Introduction
BS-2063 series microscopes are high level microscopes which are specially designed for college education, medical and laboratory study. It adopts an Infinite optical system, beautiful structure and ergonomic design. With an innovative optical and structure design, excellent optical performance and easy to operate system, these biological microscopes make your works enjoyable.
Feature
1. Excellent infinite optical system with high resolution and perfect definition.
2. Wide field 10×/Φ22mm eyepiece, more comfortable for observation.
3. 100X water objective is available for convenient viewing.
4. Trinocular head with light distribution 100:0 (100% for eyepiece) and 80:20(80% for trinocular head and 20% for eyepiece).
5. Rackless stage is safer than traditional stage.
6. Various accessories for upgrading.

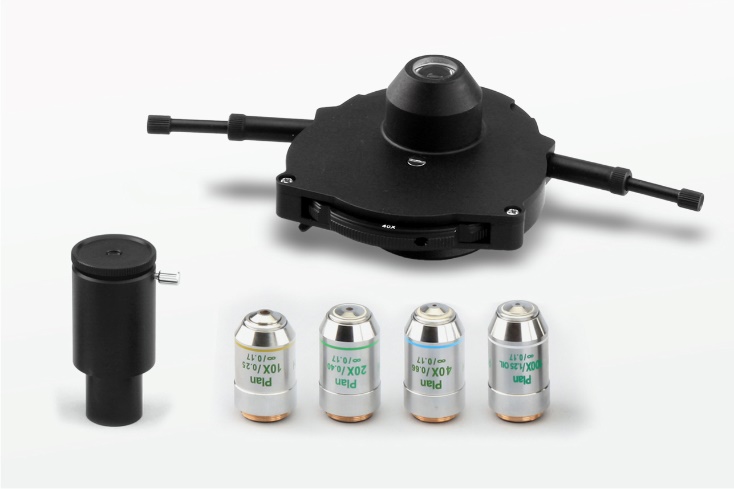

(1) Quintuple turret phase contrast unit with 10X/20X/40X/100X infinite plan phase contrast objective for phase contrast and bright field observation.

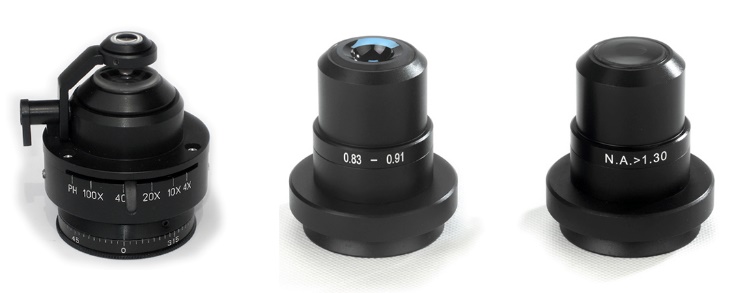

(2) N.A.0.9/0.13 Swing-out Condenser
Dark field condenser (dry) available to 4X-40X Objective
Dark field condenser (oil) available to 100X Objective

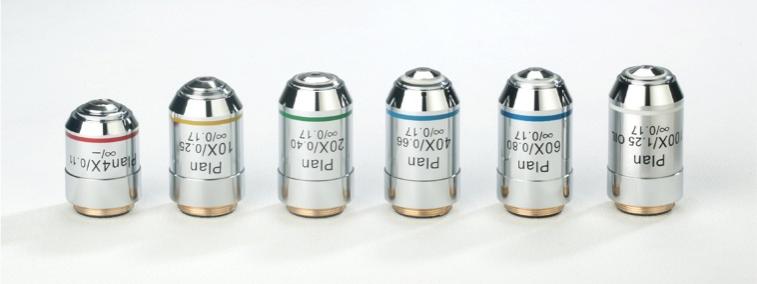

(3) Infinite Plan Objectives
Application
BS-2063 series microscopes are ideal instrument in biological, histological, pathological, bacteriology, immunizations and pharmacy field and can be widely used in medical and sanitary institutes, such as hospitals, clinics, academic laboratories, colleges and universities.
Specification
Item | Specification | BS-2063B | BS-2063T |
Optical System | Color Corrected Infinite Optical System | ● | ● |
Viewing Head | Seidentopf Binocular Head, Inclined 30°, Rotatable 360°, Interpupilary Distance: 48-76mm | ● | |
Seidentopf Trinocular Head, Inclined 30°, Rotatable 360°, Interpupilary Distance: 48-76mm, Light distribution (both): 100: 0 (100% for eyepiece) 80:20(80% for trinocular head and 20% for eyepiece) | ● | ||
Eyepiece | WF10×/22mm (Diopter adjustable), tube diameter: 30mm | ● | ● |
WF15×/16mm(Diopter adjustable) | ○ | ○ | |
WF10×/22mm with 0.1mm eyepiece micrometer | ○ | ○ | |
Infinite Plan Achromatic Objective | 4×/0.10, W.D.=12.10mm | ● | ● |
10×/0.25, W.D.=4.64mm | ● | ● | |
20×/0.40(S), W.D.=2.41mm | ● | ● | |
40×/0.65 (S), W.D.=0.65mm | ● | ● | |
100×/1.25(S, Oil), W.D.=0.12mm | ● | ● | |
2.5×/0.07 W.D.=8.47mm | ○ | ○ | |
60×/0.80(S) W.D.=0.33mm | ○ | ○ | |
100×/1.15(S,Water) W.D.=0.19mm | ○ | ○ | |
Nosepiece | Backward Quintuple Nosepiece | ● | ● |
Stage | Rackless Double Layers Mechanical stage, Size: 182mm×140mm, Travel Range: 77mm×52mm, Scale: 0.1mm, Two Slide Holder | ● | ● |
Condenser | Swing out condenser N.A.0.9/0.13, withiris diaphragm | ● | ● |
Focusing | Coaxial Coarse and Fine Focusing Knob, Coarse Focusing Travel Range: 25mm, Coarse Stroke 42.4mm/rotation, Fine Stroke 0.2mm/Rotation, Fine division: 2µm | ● | ● |
Koehler Illumination | 6V/30W Halogen Lamp with Field Diaphragm, Brightness Adjustable | ● | ● |
3W LED Illumination with Field Diaphragm, Brightness Adjustable | ○ | ○ | |
Dark Field Unit | Darkfield condenser (Dry), apply to 4×- 40× objective | ○ | ○ |
Dark Field Condenser (Oil), apply to 100× objective | ○ | ○ | |

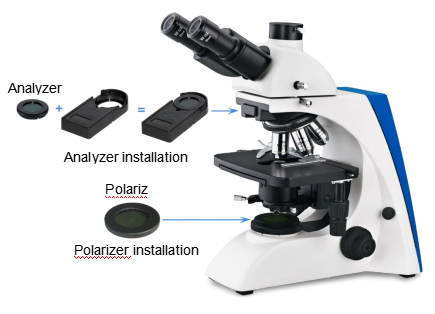

Polarizing Unit | Analyzer and Polarizer | ○ | ○ |
Phase Contrast Unit | Quintuple hole turret unit with 10×/20×/40×/100× phase contrast objective | ○ | ○ |
Independent slot with 10×/20×/40×/100× phase contrast objective | ○ | ○ | |

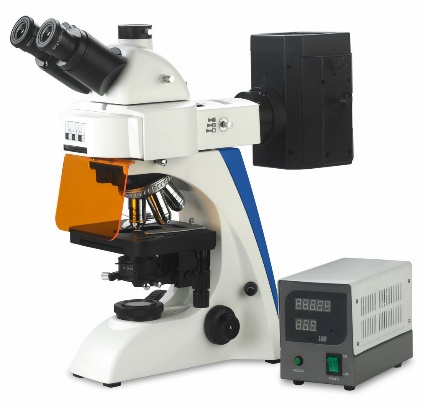

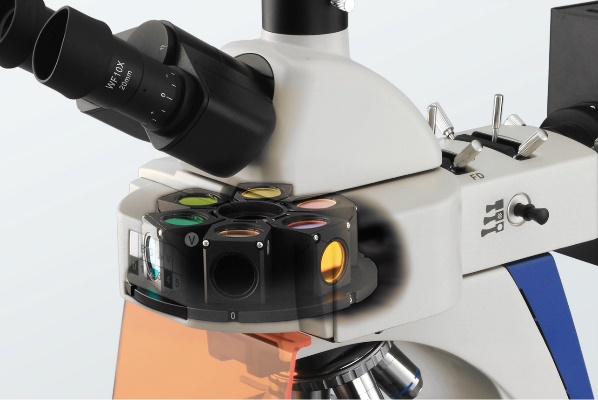

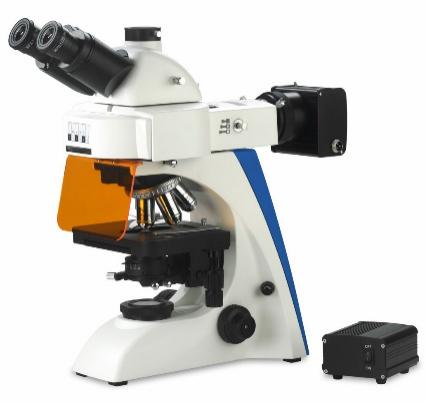

Fluorescent Attachment | 100W Mercury Epi-Fluorescence unit (Six-hole disc, Uv/V/B/G and another filters) | ○ | ○ |
3W LED Epi-Fluorescence unit (Six-hole disc, Uv/V/B/G and another filters) | ○ | ○ | |
Video Adapter | 1× C-mount (Used for DSLR cameras or large format microscope camera) | ○ | |
0.5× C-mount (focus adjustable, used for microscope camera) | ● | ||
Photo Adapter | Used for CANON／NIKON／OLYMPUS/ SONY DLSR cameras | ○ | |
Filter | Blue | ● | ● |
Green/Amber/Grey | ○ | ○ | |
Power Supply | Wide voltage input: 100V～240V | ● | ● |
Packing | 1 carton/set, Packing Size: 565mm × 310mm × 410mm, Gross Weight: 12 kgs, Net Weight: 10 kgs | ● | ● |
Note: ●Standard Outfit, ○Optional
Sample Image

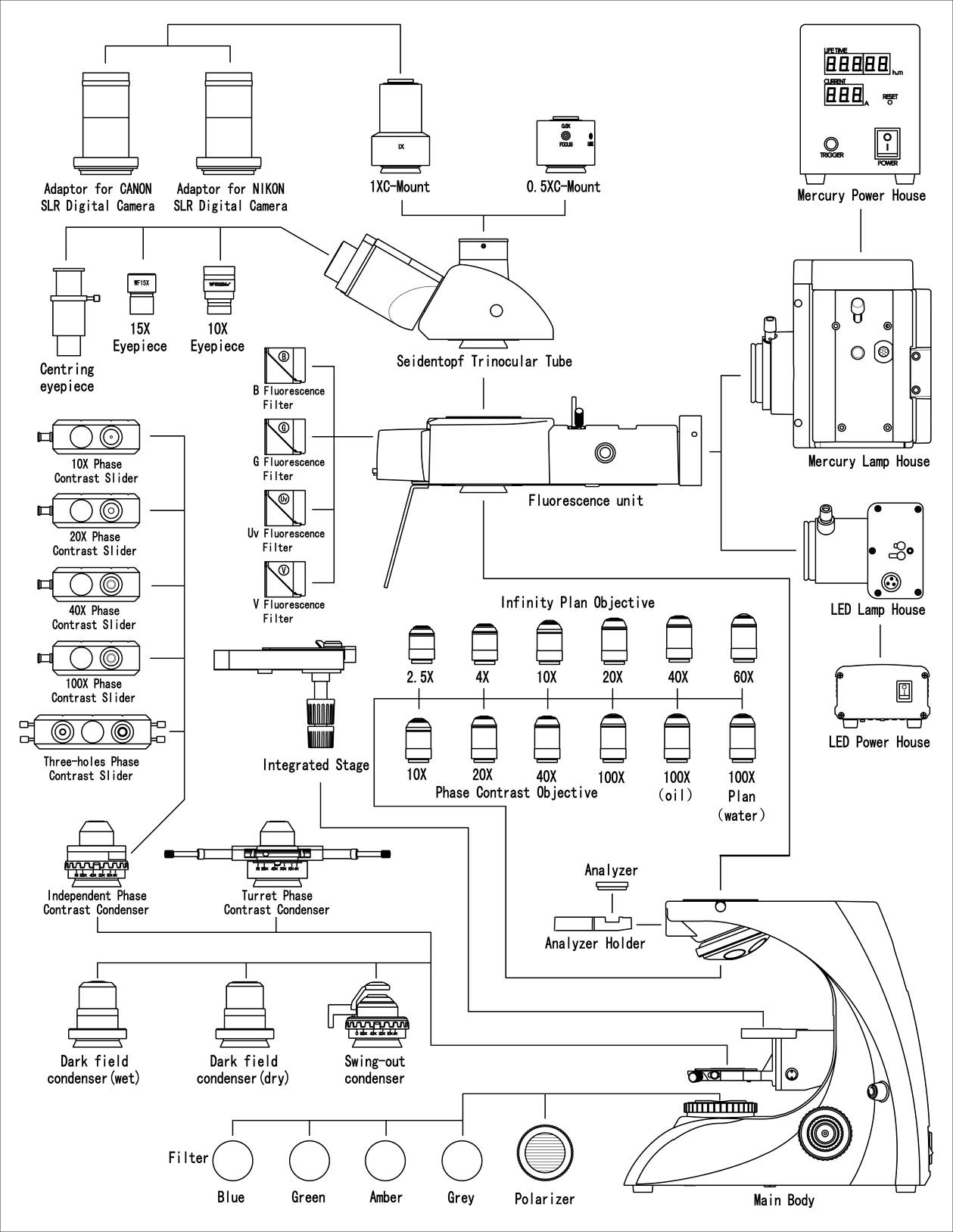

System Diagram

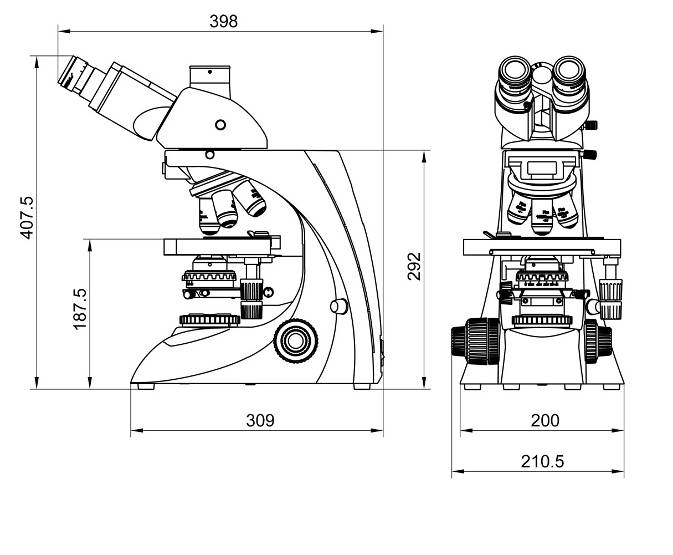

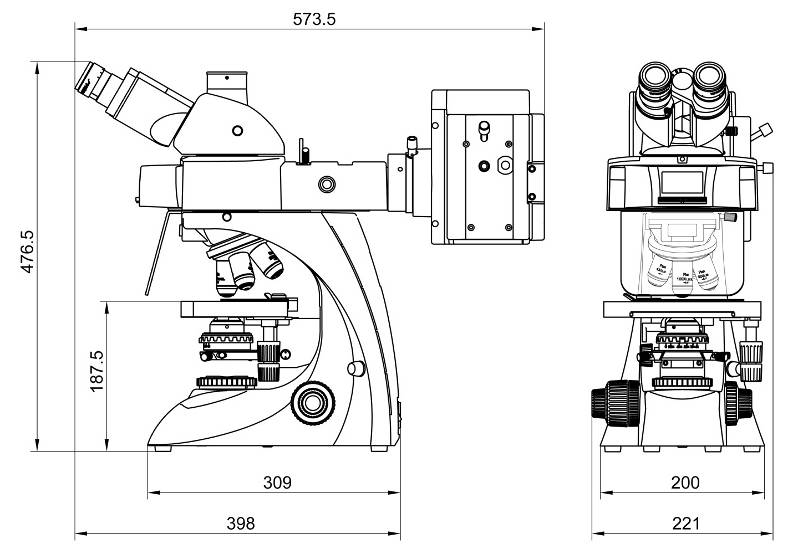

Dimension
BS-2063T Dimension BS-2063FT Dimension
