BS-1080FCA Free Calibration Smart Measuring Microscope
Introduction

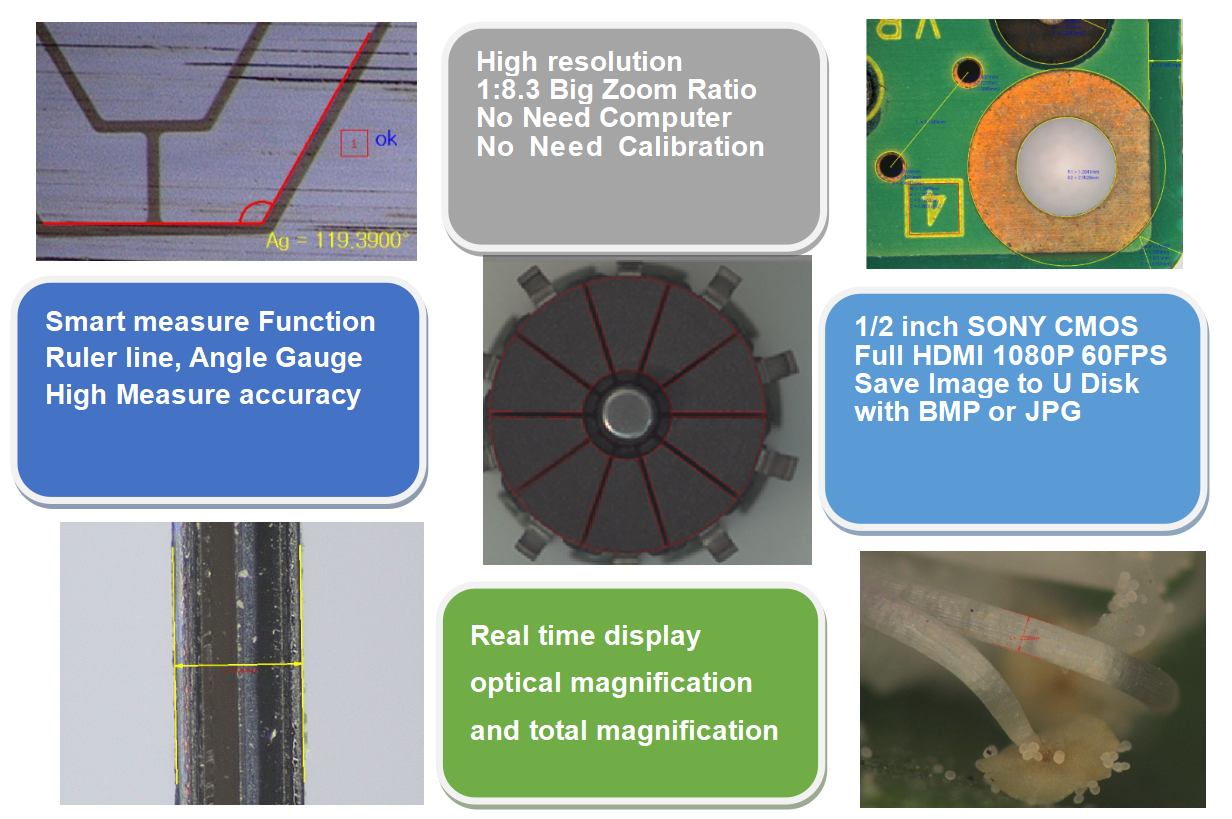

Features
2. 60fps, Full HDMI display, 1920x1080 high resolution image.
3. Real time Display optical magnification and total magnification.
4. Built in smart measuring software system. PC-Free, Smart calibration. Calibration Free. After factory setting. User don't need to calibrate again.

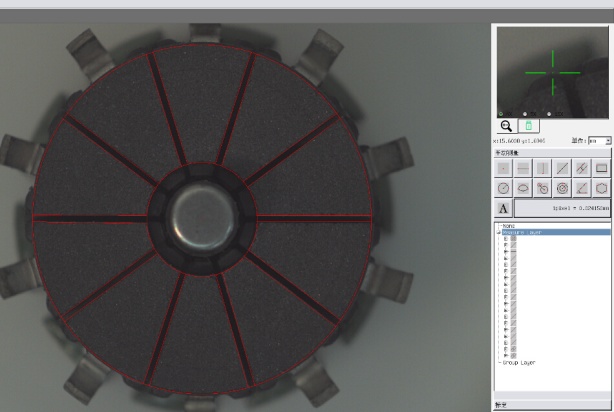

5. Screen printing drawing function. For Special irregular parts, can draw a variety of graphics and support the secondary editing of the drawing diagram.
6. Automatic tracing-edge Function has greatly Improved Measurement Precision.

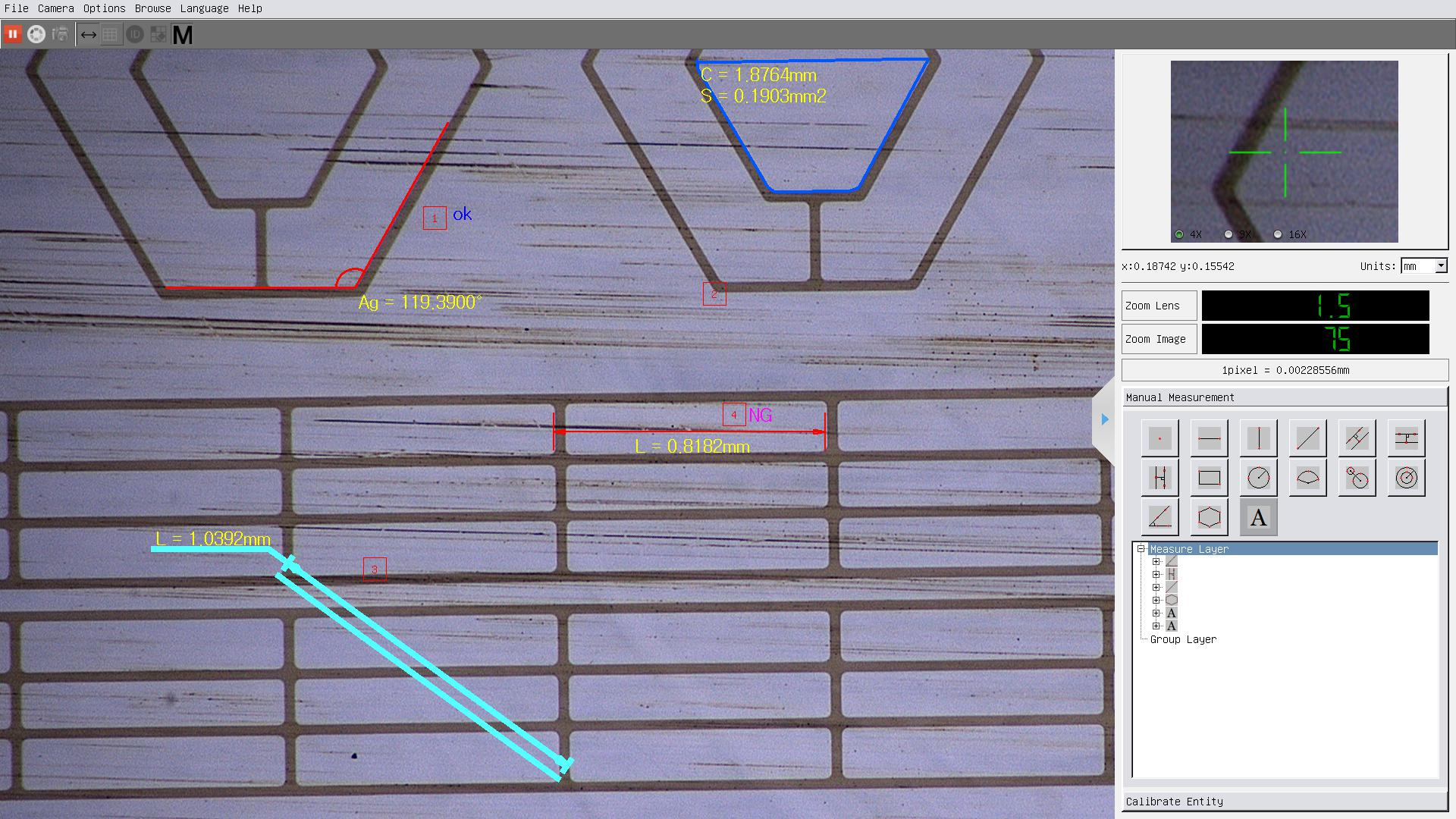

7. Measuring Function: support line, circle, fan-shaped, concentric circles, center distance of circle, Angle, arbitrary polygon measuring, etc. Measurement data can be saved with picture or Excel formate.
8. Windows software interface, Wireless mouse control, BMP or JPG photo storage, online preview.
Operation windows
 | Real time display zoom optical magnification and total magnification. Real-time monitoring of magnification changes and automatic switching of the corresponding calibration value for measurement. |
Screen printing drawing function. For Special irregular parts, can draw a variety of graphics and support the secondary editing of the drawing diagram. Graph can be added with new group, new group unlimited, can be used at any time. |  |

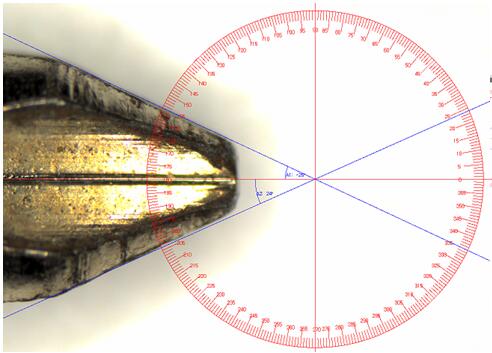

 | Gauge and crosshair Built-in Angle gauge screen printing and crosshair. Can add any angle. Adjust Angle freely. Can Move the center of angle gauge. |

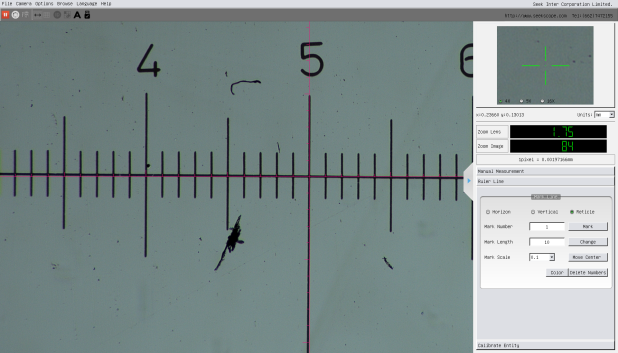

Ruler line. Zoom in or zoom out with magnification. Like put a real ruler on display. |  |
Application
BS-1080FC Free Calibration Smart Measuring Microscope is widely used in educational demonstration, agriculture research, industrial material, semi-conductor, integrated circuit board, electronics inspection area and so on.
Specification
Model | BS-1080FCA | BS-1080FCB |
Zoom Body | 0.3-2.5X zoom body (standard) | 0.6-5.0X zoom body optional |
FOV (mm) | 24mmx13.7mm - 2.88mmx1.64mm | 12mmx6.8mm - 1.44mmx0.81mm |
Total magnification | 15-120X | 30-240X |
Zoom ratio | 1:8.3 | |
Working distance | 86mm | |
Smart platform | EPGA+ARM architecture embedded System, Dual-core A9 Processor | |
Photo Resolution | 1920*1080 | |
Output format | Full HDMI | |
LCD monitor | 15.6-inch HDMI LCD monitor with resolution of 1920*1080 | |
Sensor | 1/2” Sony sensor | |
Frame Rate | 60 fps | |
Pixel Size | 3.75μmx3.75μm | |
Calibrate-Free | Software already set the calibration, So Calibration-Free | |
Measurement function | Can measure lines, parallel lines, circles, arcs, angles, concentric circles, center distance of circles, rectangles, polygons and other plane graphics (support customized measurement mode) | |
Storage | Photos (with measurement data or pure photo) and excel data files can be saved in the USB flash drive | |
Light Source | 12V 5W ring LED light source | |

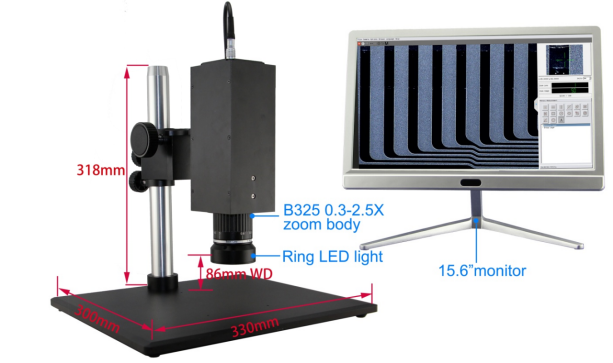

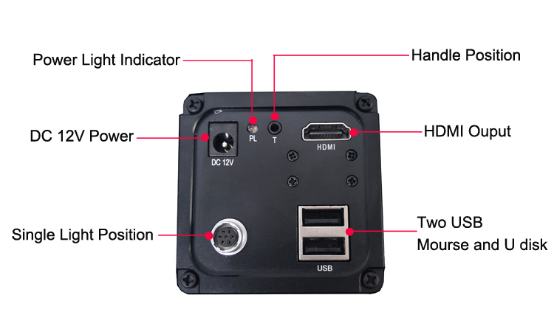

Configuration | Microscope with coarse focus pole column stand, LED ring light, 15.6-inch LCD monitor, HDMI digital camera | |
Remark: Can select the objective and the auxiliary objective which will change total magnification and working distance for your requirements, collocate the accessories to total magnification range: min 2.7 X, Max 10000 X. If select the high magnification objective, the objective above 4X, Suggest you to select the BS-1080FCB body for best image. | ||

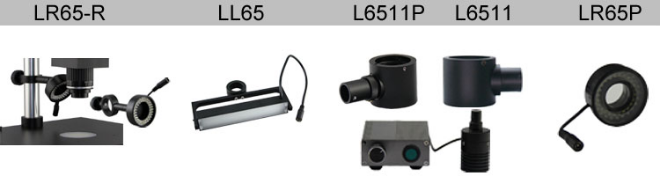

LR65-R | 12V 5W ring LED light source for Circular column of stand, the installation diameter is 32mm |
LL65 | Bar LED illumination, large lighting, suitable for low range, good uniformity |
LC6511P | 3W Coaxial light source with polarizer |
LC6511 | 3W Coaxial light source |
LR65P | 12V 5W Polarized ring LED light source |
Stand | Quadrate column stand, coarse&fine focus stand and transmitted light stand are optional |
BMS-303 | BMS-303 X-Y stage with 360 degree rotatable surface layer |
BS-1080FC with Quadrate column stand(coarse focus) BS-1080FC with fine focus and X-Y stage
BS-1080FC with Quadrate column stand (coarse&fine focus), X-Y stage BS-1080FC with pole column stand (coarse&fine focus), X-Y stage, coaxial illumination and LED ring light, Plan APO metallurgical objective
