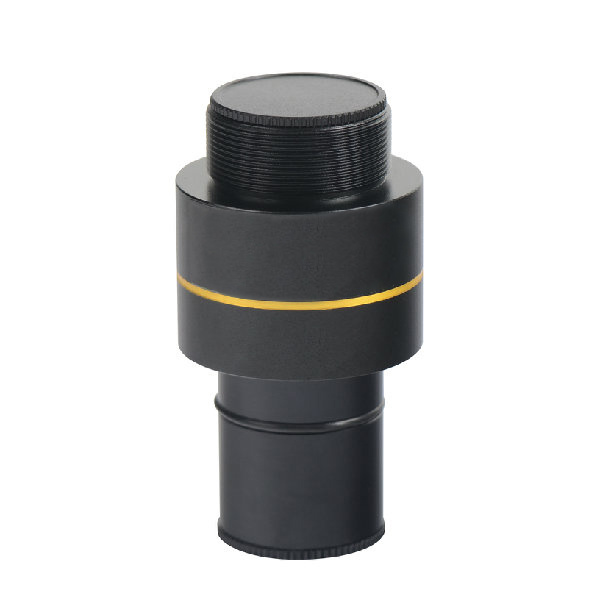

BCN2F-0.75x Fixed 23.2mm Microscope Eyepiece Adapter

Model


Description

BCN2F-0.37×

1.Available Size for 18 mm Field 18X0.37mm

2.Fit to 1/4”~1/3” Size Sensor

3.0.37X Magnification

4.Dia.23.2mm Eyepiece Tube to C-Mount

BCN2F-0.5×

1.Available Size for 18 mm Field 18X0.50mm

2.Fit to 1/2”~2/3” Size Sensor

3.0.50X Magnification

4.Dia.23.2mm Eyepiece Tube to C-Mount

BCN2F-0.75×

1.Available Size for 18 mm Field 18X0.75mm

2.Fit to 1/1.8”~1” Size Sensor

3.0.75X Magnification

4.Dia.23.2mm Eyepiece Tube to C-Mount

BCN2F-1×

1.Available Size for 18 mm Field 18X1mm

2.Fit to 1/1.2”~1.1” Size Sensor

3.1X Magnification

4.Dia.23.2mm Eyepiece Tube to C-Mount
