MDE3-510BC USB2.0 Digital Eyepiece Microscope Camera (Sony IMX335 Sensor, 5.1MP)
Introduction
The MDE3 series cameras come with high-speed USB2.0 interface and high frame rate video display keep the screen smooth without interruption; Also the MDE3 come with advanced video & image processing application ImageView.
The MDE3 can be widely used to transfer the mono or binocular student microscopes to digital microscope.
With 23.2 to 30mm or 23.2 to 30.75 convert ring, the MDE3 camera can also change the stereo microscope to digital stereo microscope.
Feature
1. Microscope eyepiece camera with 23.2 diameter and compact size;
2. An extension of ’s MDE2 series cameras with fixed reduction lens to ensure the full field of view of the microscope from the eyepiece can be imaged to the CMOS sensor;
3. High-quality camera with Aptina CMOS sensor;
4. Auto white balance and auto-exposure; Brightness, contrast, chroma, and saturation can be adjusted;
5. High-speed USB2.0 interface and high frame rate video display keep the screen smooth without interruption;
6. With advanced video & image processing application ImageView;
7. Providing Windows/Linux/Mac OS multiple platforms SDK;
8. Native C/C++, C#/VB.NET, DirectShow, Twain Control API.
Specification
Order Code | Sensor & Size(mm) | Pixel(μm) | G Responsivity Dynamic range SNRmax | FPS/Resolution | Binning | Exposure |
MDE3-510BC | 5.1M/IMX335(C) | 2.0x2.0 | 505mV 70dB 43dB | 26@2592x1944 | 1x1 1x1 1x1 | 0.1-2000 ms |
Other Specification for MDE3 Camera | |
Spectral Range | 380-650nm (with IR-cut Filter) |
White Balance | Auto White Balance |
Color Technique | N/A |
Capture/Control API | Native C/C++, C#/VB.NET, DirectShow, Twain and Labview |
Recording System | Still Picture and Movie |
Cooling System* | Natural |
Operating Environment | |
Operating Temperature (in Centidegree) | -10~ 50 |
Storage Temperature(in Centidegree) | -20~ 60 |
Operating Humidity | 30~80%RH |
Storage Humidity | 10~60%RH |
Power Supply | DC 5V over PC USB Port |
Software Environment | |
Operating System | Microsoft®Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit) OSx(Mac OS X) Linux |
PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher |
Memory:2GB or More | |
USB Port:USB2.0 High-speed Port | |
Display:17” or Larger | |
CD-ROM | |
The MDE3 body, made from aluminum alloy blackening, ocular housing: Dia.33 X 79.1mm ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT filter to filter the infrared light and protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

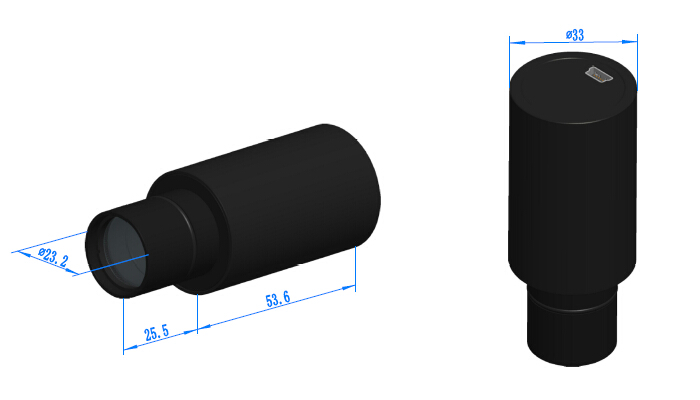

Dimension of MDE3

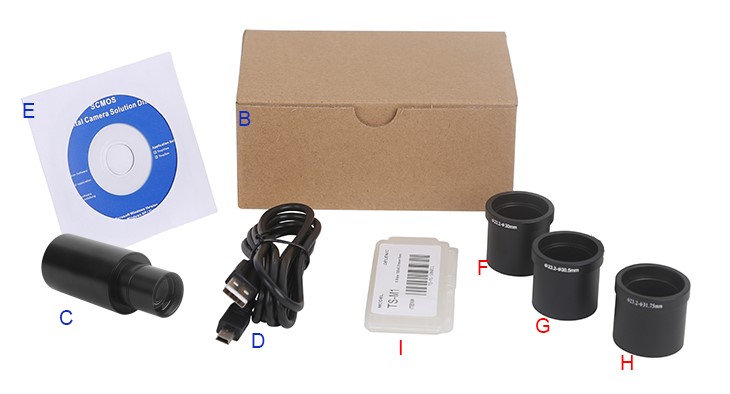

Standard Camera Packing List | ||
A | Carton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo | |
B | Gift box L:15cm W:15cm H:10cm (0.25~0.26Kg/ box) | |
C | SPCMOS series eyepiece camera | |
D | High-Speed USB2.0 A male to mini B 5-pin male gold-plated connectors cable /1.5m | |
E | CD (Driver & utilities software, Ø8cm) | |
Optional Accessory | ||
F | 108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube | |
G | 108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube | |
H | 108017(Dia.23.2mm to 31.75mm Ring)/ Adapter rings for 31.75mm eyepiece tube | |
I | Calibration kit | 106011/TS-M1(X=0.01mm/100Div.); |
