2K Color USB3.0 Line Scan Industrial Camera

CatchBEST Jelly4 MU3L2K7C(AGYYO) 2K Color USB3.0 Line Scan Industrial Camera

Jelly4 MU3L2K7C(AGYYO)

Jelly4 series USB 3.0 Line scan industrial cameras are especially well suited for applications that need both high speeds and high image quality.

Delivery

FOB

minimum order

1 set

Supply Ability

10000set / Month

Country of Origin

Beijing,China

Stock Time

28Day

Quantity

Contact Now

add to cart

Introduction

Jelly4 series USB 3.0 Line scan industrial cameras are especially well suited for applications that need both high speeds and high image quality. We offer high-performance line scan cameras with resolutions of 2048 (2K) and 4096 (4K) pixels. Monochrome for 2K and 4K, color versions for 2K are available.

Features

1. Mirco USB3.0 High-speed interface, Bandwidth is 5Gb/s, plug and play, no need external power supply;
2. Adopt Awaiba CMOS line scan camera sensor;
3. With FPGA 32MB built-in hardware frame buffer, make sure no frame lost, support more cameras work together;
4. Support GPIO opto-isolated external trigger, line frequency capture, external trigger delay setting does not affect the acquisition frame rate;
5. Provide completed API for users’ secondary development, support VC, VB and other development language;
6. Precision aluminum alloy shell, small size 29×44×30mm, weight 63g.
7. Support C-mount interface and customize lens interface.

Application

The line scan cameras are frequently used in printing machinery to inspect printed images. Surface and web inspection; Regardless of whether working with semi-conductors, paper, plastics or raw leather, line scan cameras are helpful tools for identifying flaws directly within the production process.
Another common use is for postal sorting or reading out barcodes, QR codes, lines of text (OCR) and other codes. This ensures that packages and letters will reach the right recipient in a timely manner.

Specification

Model	MU3L2K7M(AGYYO)	MU3L2K7C(AGYYO)	MU3L4K3M(AGYYO)
Color/Mono	Mono	Color	Mono
Sensor Type	CMOS	CMOS	CMOS
Sensor Model	DR-2K-7	DR-2K-7	DR-4K-3.5
Shutter	Global	Global	Global
Sensor Size	14.3mm	14.3mm	14.3mm
Pixel Size	7.0×7.0μm	7.0×7.0μm	3.5×3.5μm
Resolution	2K	2K	4K
Resolution	2048x1	2048x2	4096x1
Horizontal Frequency	80MHz	80MHz	40MHz
Pixel Depth	8 bit	8 bit	8 bit
Min Exp time	2μs	2μs	1μs
Frame Buffer Joint Capacity	7398 lines	7398 lines	3699 lines
Interface	USB3.0	USB3.0	USB3.0
Image Output Format	Raw8/Mono8	Raw8/Bayer24/32	Raw8/Mono8
Synchronous Control	Internal trigger/soft trigger/external trigger/fixed frame rate trigger
Exposure	Auto / Manual
WorkingTemperature	0°C~60°C
Storage Temperature	-30°C~70°C
Lens port	C-mount
Image Output	Micro USB3.0, Bandwidth 5Gb/s
Power Supply	USB3.0 Power Supply, 900mA@5V
Frame Buffer	32M Bit
Input/Output	Opto-isolated GPIO, 1 channel external trigger input, 1 channel flash output, 1 channel 5V power supply input / output
Main Function	Image display, image capture (bmp,jpg,tiff), video capture(compressor is optional)
Operation System	SupportWindows XP/7/8/10 32&64 bit Operation System (Linux and Android Operation System custom development)
SDK	SupportVC, VB, C#, DELPHI developing language, support LABVIEW, OPENCV, HALCON, MIL Software
Camera Dimension	29mm(height)×44mm( width)×30mm(length)
Camera Weight	63g(High-precision CNC aluminum alloy shell)
Accessories	Color cameras come with IR cut filter(mono camera does not have filter), 3m-5m USB cable with fix screws, 6-pin Hirose GPIO connector, 1 CD with software and SDK.

Spectral Response Curve

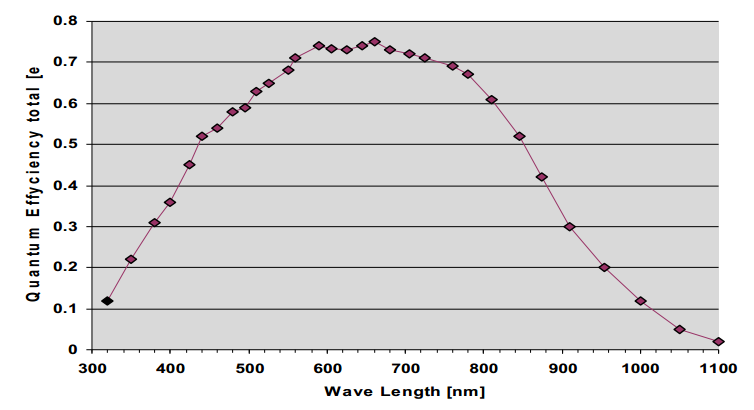

Mono Line Scan Camera (for 2K & 4K)

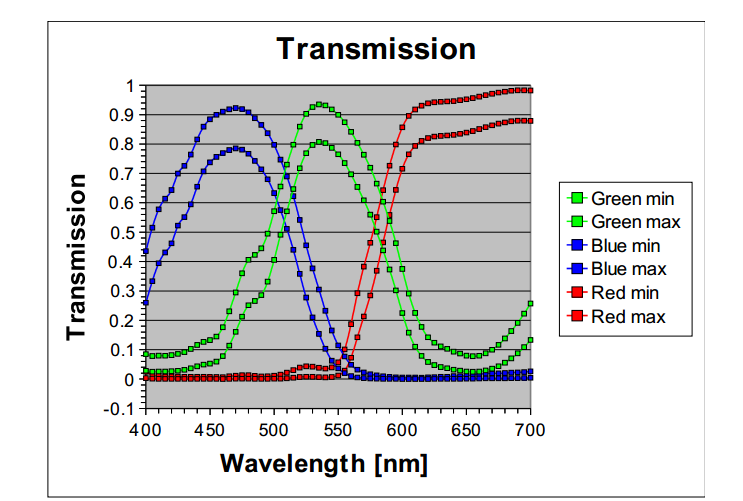

Color Line Scan Camera (for 2K)

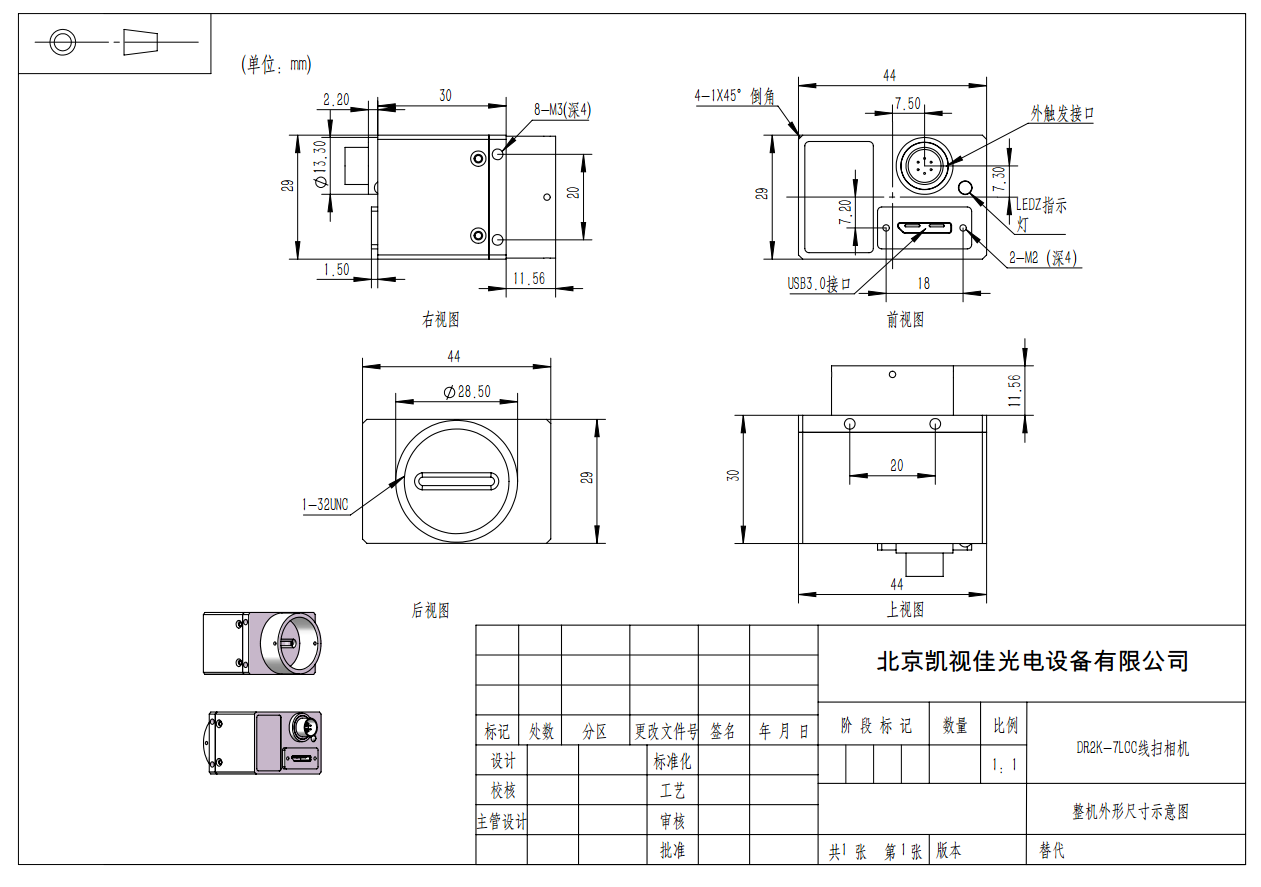

Dimension

Unit: mm
