BUC5IB-170C Cooled C-Mount USB3.0 CMOS Microscope Camera (Sony IMX432 Sensor, 1.7MP)

BUC5IB-170C

BUC5IB series cameras have adopted SONY Exmor CMOS sensor as the image-picking device and USB3.0 is used as the transfer interface to increase the frame rate.

Delivery

FOB

minimum order

1 set

Supply Ability

10000set / Month

Country of Origin

Beijing,China

Stock Time

28Day

Quantity

Contact Now

add to cart

Introduction

BUC5IB series cameras have adopted SONY Exmor CMOS sensor as the image-picking device and USB3.0 is used as the transfer interface to increase the frame rate.
With the two-stage peltier cooling sensor chip to -42 degree below ambient temperature. This will greatly increase the signal to noise ratio and decrease the image noise. Smart structure is designed to assure the heat radiation efficiency and avoid the moisture problem. Electric fan is used to increase the heat radiation speed.
BUC5IB series cameras come with advanced video & image processing application ImageView; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API.
The BUC5IB series cameras can be widely used in low light environment and microscope fluorescence image capture and analysis, as well as the astronomy deep sky applications.

Features
The basic characteristic of BUC5IB can be summarized as follows:
1. Standard C-Mount camera with SONY Exmor CMOS sensors from 1.7M to 45M;
2. Two-stage TE-cooling with controllable electric fan;
3. Sensor chip cooling up to 42°C below ambient temperature;
4. Working temperature can be regulated to specified temperature in 5 minutes;
5. Smart structure to assure the heat radiation efficiency and avoid the moisture problem;
6. IR-CUT/AR coated windows;
7. Up to 1 hour long time exposure;
8. USB3.0 5Gbit/second interface ensuring high speed data transmission;
9. Ultra-FineTM color engine with perfect color reproduction capability;
10. With advanced video & image processing application ImageView;
11. Support both video and trigger modes;
12. Providing Windows/Linux/Mac OS multiple platforms SDK;
13. Native C/C++, C#/VB.NET, DirectShow, Twain control API.

Specification

Model

Sensor & Size(mm)

Pixel(μm)

G Sensitivity

Dark Signal

FPS/Resolution

Binning

Exposure

BUC5IB-170C

1.7M/IMX432(C, G)

1.1 “(14.4x9.9)

9.0 x9.0

4910mv with 1/30s
0.3mv with 1/30s

33@1600x1100

1x1

0.1ms~3600s

C:Color; M:Monochrome; G: Global shutter

Other Specification for BUC5IB Cameras
Spectral Range	380-650nm (with IR-cut Filter)
White Balance	ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor
Color Technique	Ultra-Fine^TM Color Engine/NA for Monochromatic Sensor
Capture/Control SDK	Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)
Recording System	Still Picture and Movie
Cooling System*	Two-stage TE-cooling System -45 °C below Camera Body Temperature
Operating Environment
Operating Temperature (in Centidegree)	-10~ 50
Storage Temperature (in Centidegree)	-20~ 60
Operating Humidity	30~80%RH
Storage Humidity	10~60%RH
Power Supply	DC 5V over PC USB Port External Power Adapter for Cooling System, DC12V, 3A
Software Environment
Operating System	Microsoft^®Windows^® XP / Vista / 7 / 8 /10 (32 & 64 bit) OSx(Mac OS X) Linux
PC Requirements	CPU: Equal to Intel Core2 2.8GHz or Higher
	Memory: 2GB or More
	USB Port: USB3.0 High-speed Port
	Display: 17” or Larger
	CD-ROM

Dimension

The BUC5IB body, made from tough, alloy with CNC technique, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT or AR to block the IR light or protect the camera sensor. The fan‘s vibration is minimized to the low level to eliminate the vibration caused imaging blur. This design ensures a rugged, robust solution with an increased lifespan when compared to the other industrial camera solutions.

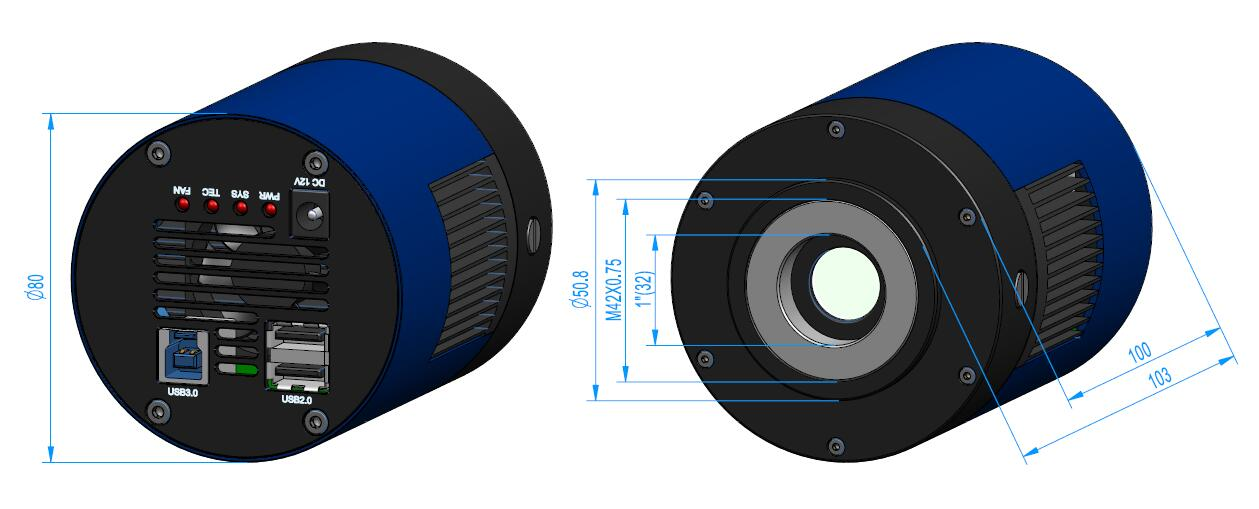

Dimension of BUC5IB (Cylindrical housing)

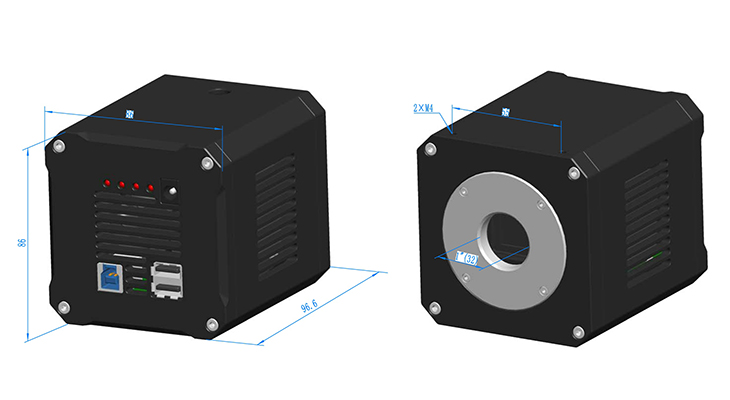

Dimension of BUC5IB (Cuboid housing)

Packing Information for BUC5IB Cameras

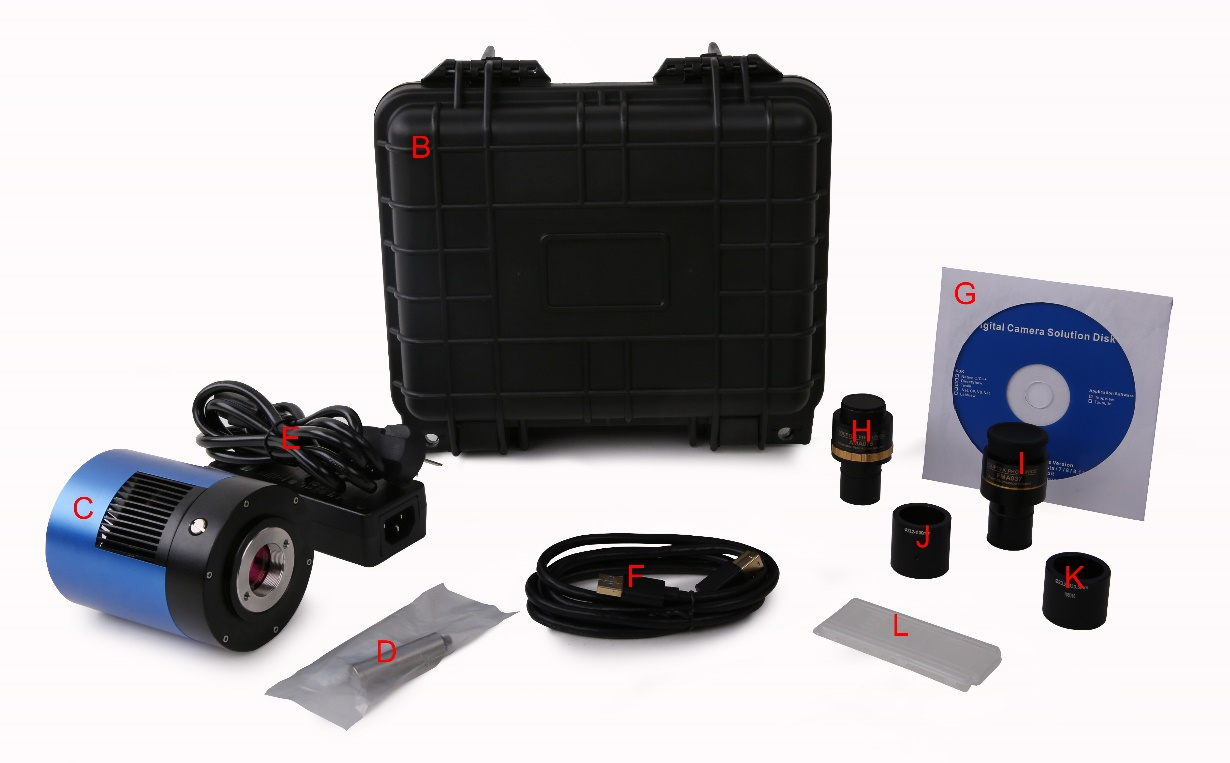

Packing Information of BUC5IB Camera(Cylindrical housing)

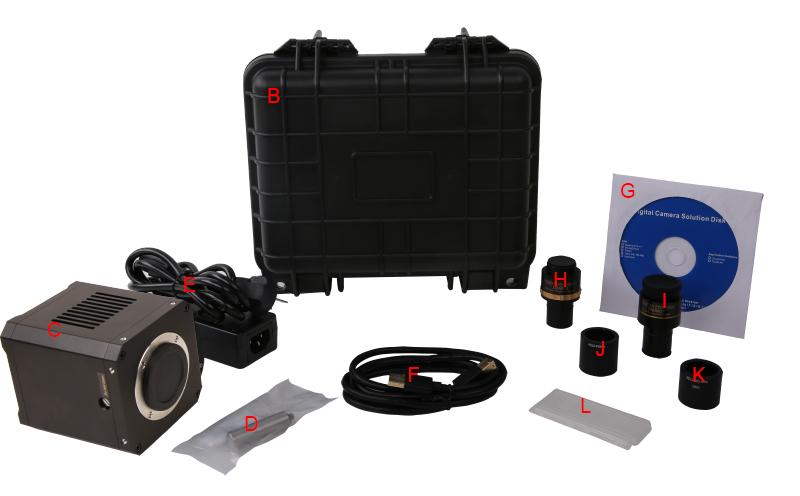

Packing Information of BUC5IB Camera(Cuboid housing)

Standard Package
A	Carton L:50cm W:30cm H:30cm (20pcs, 12~17Kg/ carton), not shown in the photo (TBD)
B	3-A safety equipment case: L:28cm W:23cm H:15cm (1pcs, 2.8Kg/ box); Carton size: L:28.2cm W:25.2cm H:16.7cm (TBD)
C	BUC5IB camera(C-mount)
D	Drying tube and desiccant
E	Power adapter: input: AC 100~240V 50Hz/60Hz, output: DC12 V 3A
F	High-Speed USB3.0 A male to B male gold-plated connectors cable /1.5m
G	CD (Driver & utilities software, Ø12cm)
Optional Accessory
H	Adjustable lens adapter		C-mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope)	BCN2A-0.37× BCN2A-0.5× BCN2A-0.75× BCN2A-1×
			C-Mount to Dia.31.75mm eyepiece tube (Please choose 1 of them for your telescope)	BCN3A-0.37× BCN3A-0.5× BCN3A-0.75× BCN3A-1×
I	Fixed lens Adapter		C-mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope)	BCN2F-0.37× BCN2F-0.5× BCN2F-0.75× BCN2F-1×
			C-mount to Dia.31.75mm eyepiece tube (Please choose 1 of them for your telescope)	BCN3F-0.37× BCN3F-0.5× BCN3F-0.75× BCN3F-1×
	Note: For H and I optional items, please specify your camera type (C-mount, microscope camera or telescope camera), our engineer will help you to determine the right microscope or telescope camera adapter for your application.
J	(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube
K	(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube
L	Calibration kit	106011/TS-M1(X=0.01mm/100Div.); 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)

Extension of BUC5IB with Microscope Adapter

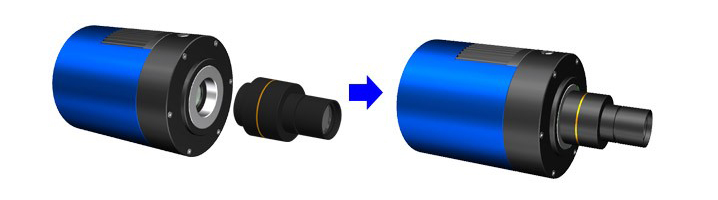

BUC5IB+ BCN2A-XXX(23.2mm Adapter)

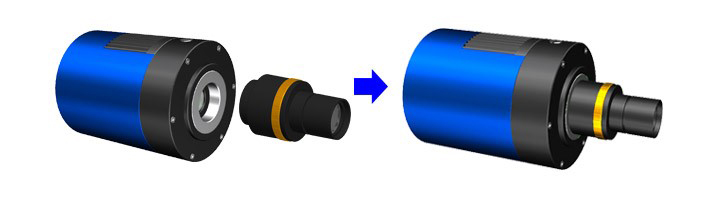

BUC5IB+ BCN2F-XXX(23.2mm Adapter)

Sample Image

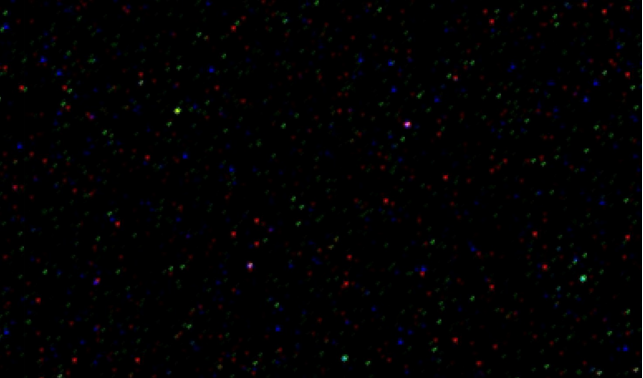

Hot noise for the BUC5IB-1600C at Gain 20 , 600 seconds, 15 Centidegree

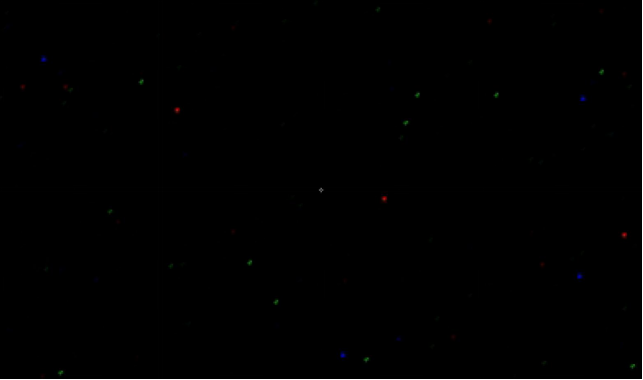

Hot noise for the BUC5IB-1600C Gain 20, 600 seconds, minus 15 Centidegree
