BUC5IA-2000M Cooled C-Mount USB3.0 CMOS Microscope Camera (Sony IMX183 Sensor, 20.0MP)
Introduction
With the two-stage peltier cooling sensor chip to -40 degree below ambient temperature. This will greatly increase the signal to noise ratio and decrease the image noise. Smart structure is designed to assure the heat radiation efficiency and avoid the moisture problem. Electric fan is used to increase the heat radiation speed.
The BUC5IA series cameras can be widely used in low light environment and microscope fluorescence image capture and analysis.
Features
The BUC5IA-2000C/M's 1-inch sensor image can cover the most uniform central area of the image plane, with a resolution of up to 20 megapixels, you can capture the high-definition details of your samples in one shot.
With the top-level cooled camera technology, the BUC5IA-2000C/M cooled camera operates at -15 °C and can ensure long-term reliable operation, significantly reducing the hot pixels caused by the accumulation of dark current, and obtaining a purer fluorescent background image. More than twice the sensitivity of a CCD, to meet the needs of professional fluorescence imaging.
Without sacrificing speed and image information, the BUC5IA-2000C/M offers a variety of real-time intelligent image processing capabilities that allow you to view and capture flawless sample images in real time with the click of a button.

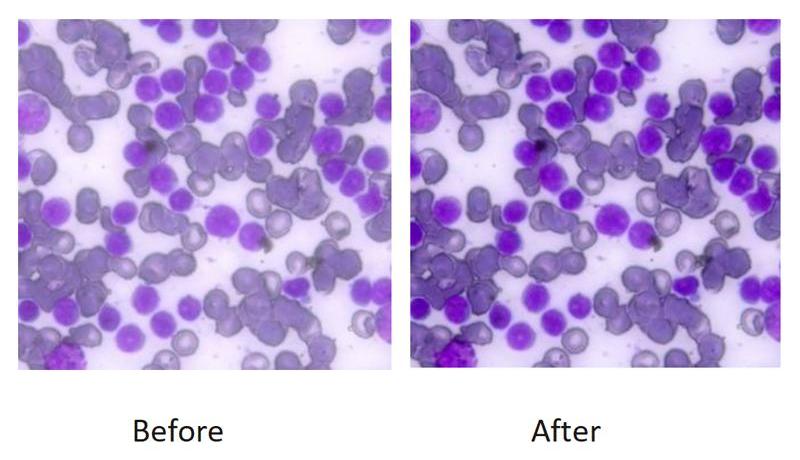

Real-time sharpening, enhanced detail, and more transparent
Resolution | BUC5IA-2000C/M | CCD |
20MP | 15fps | <1fps |
5MP | 53fps | 4fps |
5. Revolutionary PC Computing Imaging Software Capture V2.0

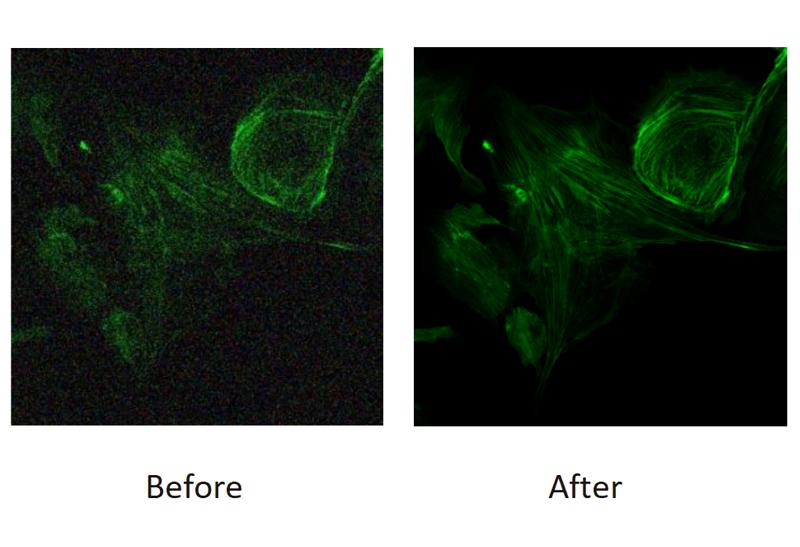

6. Advanced Cooling Technology Reduces Dark Current Down to 0.001e-/pixel/s.
BUC5IA-2000C/M can achieve a dark current noise control level as low as 0.001e/sec, which significantly reduces the hot pixel noise during long exposure time.
Specification
Product Model | BUC5IA-2000C | BUC5IA-2000M |
Color/Mono | Color | Mono |
Sensor Model | Sony | Sony |
Quantum Efficiency | 84%@535nm | 84%@495nm |
Resolution | 5472(H) x 3648(V) | 5472(H) x 3648(V) |
Pixel Size | 2.40μm x 2.40μm | 2.40μm x 2.40μm |
Sensor Size | 15.86mm; 1inch | 15.86mm; 1inch |
Shutter Mode | Rolling | Rolling |
Read Noise | <1e- | <0.8e- |
Dark current | 0.001e-/pixel/s | 0.001e-/pixel/s |
Cooling | Forced air(Ambient at +25℃):-15 ℃ | Forced air(Ambient at +25℃):-15 ℃ |
Frame Rate | 14fps@5472x3648, 53fps@2736x1824 67fps@1824x1216 | 16fps@5472x3648(8bit), 8fps@5472x3648(16bit), 53fps@2736x1824(8bit), 22fps@2736x1824(16bit) |
Binning | 2x2, 4x4 | 2x2, 3x3, 4x4, 8x8 |
Exposure Settings | Auto/Manual | Auto/Manual |
Exposure Time | 0.244ms - 2mins | 0.244ms - 60mins |
Picture Format | JPG/PNG/TIFF/DICOM | JPG/PNG/TIFF/DICOM |
Data Interface | USB3.0 | USB3.0 |
Bit Depth | 16bit/8bit | 16bit/8bit |
Camera Size | 85mm x 85mm x 100mm | 85mm x 85mm x 100mm |
Power Supply | 12V/8A | 12V/8A |
Camera Weight | 1200g | 1200g |
PC Software | Captrue V2.0 | Captrue V2.0 |
Operating System | Windows(32bit/64bit) | Windows(32bit/64bit) |
Operating Environment | Operating: 0-40℃ Humidity: 10%-85% | Operating: 0-40℃ Humidity: 10%-85% |

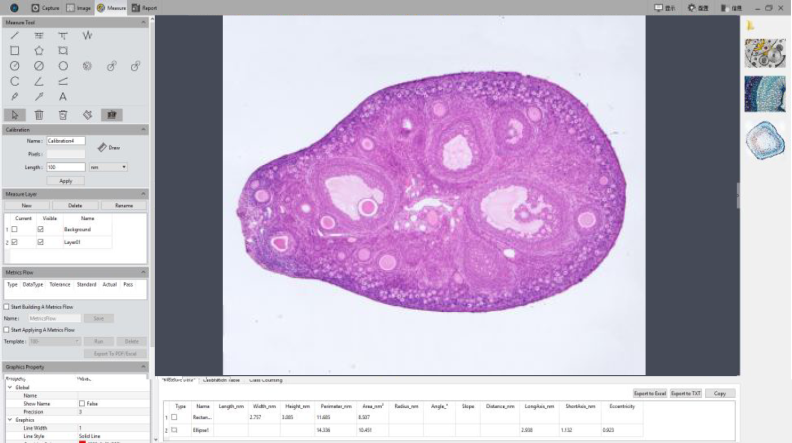

Capture 2.0 software is a large imaging software developed by us to support our new cameras. It has three modules: camera control, image processing and measurement. Its core features include compatibility with Microsoft Windows and Apple Mac OS dual-systems with advanced"real-time stitching"and"real-time EDF"algorithms and so on.
* Real-time Image Stitching EDF 3D Noise Reduction;
* Real-time fluorescence image synthesis and editing;
* HDR image synthesis;
* Micro-imaging-based intelligent automatic exposure;
* Intelligent flat field correction based on dynamic calculation Smart measurement workflow;
* Supports single shot, delayed camera;
* User parameter group save and load Dynamicstatic measurement;
* Customize measuring gauges, layers, precision;
* Customize image naming, style, save location;
* Implements drawing: points, lines, rectangles, polygons, circles, arcs, angles, Data export as TXT or Excel, report generation and printing.
