BUC5F-830CC C-mount USB3.0 CMOS Microscope Camera (Sony IMX485 Sensor, 8.3MP)

BUC5F-830CC

Delivery

FOB

minimum order

1 set

Supply Ability

10000set / Month

Country of Origin

Beijing, China

Stock Time

15Day

Quantity

Contact Now

add to cart

Introduction

BUC5F series USB3.0 digital cameras adopt SONY Exmor CMOS sensor as the image-picking device and USB3.0 is used as the transfer interface.

BUC5F series cameras hardware resolutions range from 1.5MP to 45MP and come with the integrated CNC aluminum alloy compact housing.

BUC5F series cameras integrated with 12 bit Ultra-fine^TM Hardware Image Signal Processor Video Pipline(Ultra-fine^TM HISP VP) for Demosaic, Automatic Exposition, Gain Adjustment, One Push White Balance, Chrominance Adjustment, Saturation Adjustment, Gamma Correction, Luminance Adjustment, Contrast Adjustment, Bayer and finally form RAW data for 8/12 bit output. This will move the heavy burden of the processing from the PC to the Ultra-fine^TM HISP VP and greatly accelerating the processing speed.

BUC5F series cameras come with advanced video & image processing application ImageView; Providing Windows/ Linux/ macOS/ Android multiple platforms SDK (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc).

The BUC5F series cameras can be widely used in bright field, dark field, fluorescent light environment and normal microscope image capture and analysis with higher frame rate.

Features

The basic characteristic of BUC5F series cameras are as follows:

1. SONY Exmor, Exmor R(Back-illuminated), Exmor RS CMOS sensor with USB3.0 interface;

2. Real-time 8/12bit depth switch(depending on sensor);

3. Ultra-fine^TM HISP VP and USB3.0 5 Gbps interface ensuring high frame rates;

4. Super high sensitivity up to 8935mV(IMX482);

5. Ultra low noise and low power dissipation by using column-parallel A/D conversion;

6. With hardware resolution from 2.0M to 45M;

7. Rolling Shutter or Global Shutter;

8. Standard C-Mount camera;

9. CNC aluminum alloy housing;

10. With advanced video & image processing application ImageView;

11. Providing Windows/Linux/Mac OS multiple platforms SDK;

12. Native C/C++, C#/VB.Net, DirectShow, Twain, LabView.

Specification

Order Code

Sensor & Size(mm)

Pixel Size(μm)

G Sensitivity

Dark Signal

FPS/Resolution

Binning

Exposure

BUC5F-4500C

45M/IMX294(C)

1.4” (18.93x13.00)

2.315x2.315

108mv with 1/30s

0.03mv with 1/30s

8.1@8176x5616

30.0@4088x2808

8.1@7408x5556

33.0@4088x2808

10.4@8176x4320

34.7@4096x2160

62.5@2048x1080

86.5@1344x720

1x1(3:2)

2x2(3:2)

1x1(4:3)

2x2(4:3)

1x1(17:9)

2x2(17:9)

3x3(17:9)

4x4(17:9)

0.1ms~15s

BUC5F-4500BC

45M/IMX492(C)

1.4” (18.93x13.00)

2.315x2.315

108mv with 1/30s

0.03mv with 1/30s

8.1@8176x5616(C)

30.0@4080x2808(M)

8.1@7408x5556(C)

33.0@3696x2778(M)

10.4@8176x4320(C)

34.7@4096x2160(M)

62.5@2048x1080(M)

86.5@1344x720(M)

1x1(3:2)

2x2(3:2)

1x1(4:3)

2x2(4:3)

1x1(17:9)

2x2(17:9)

3x3(17:9)

4x4(17:9)

0.1ms~15s

BUC5F-3200C

32M/IMX294(C)

1.15” (12.96x12.96)

2.315x2.315

108mv with 1/30s

0.03mv with 1/30s

8.1@5600x5600

30.0@2800x2800

30.0@1400x1400

1x1

2x2

4x4

0.1ms~15s

BUC5F-2500C

25M/IMX511(C)

1/2.3” (5.519x5.519)

1.12x1.12

96.3mv with 1/30s

0.1mv with 1/30s

12@4928x4928

46@2464x2464

100@1648x1648

1x1

2x2

3x3

0.013ms~15s

BUC5F-2100C

21M/IMX269 (C)

4/3” (17.4x13.0)

3.3 x3.3

399mv with 1/30s

0.1mv with 1/30s

17@5280x3954

17@3952x3952

56@2640x1976

67@1760x1316

192@584x438

1x1

2x2

3x3

9x9

0.1ms~15s

BUC5F-2000C

20M/IMX183(C)

1” (13.06x8.76)

2.4 x2.4

462mv with 1/30s

0.21mv with 1/30s

15@5440x3648

50@2736x1824

60@1824x1216

1x1

2x2

3x3

0.1ms~15s

BUC5F-2000CC

20M/IMX183(C)

1” (13.06x8.76)

2.4 x2.4

462mv with 1/30s

0.21mv with 1/30s

20@5440x3648

48@2736x1824

58@1824x1216

1x1

2x2

3x3

0.1ms~15s

BUC5F-1800C

18M/SONY Special(C)

1/2.2” (5.86x4.46)

1.2 x1.2

130mv with 1/30s

0.1mv with 1/30s

17@4880x3720

40@2448x1836

50@1728x1296

1x1

2x2

3x3

0.1ms~15s

BUC5F-1560C

15.6M/SONY Special (C)

1.1” (13.0x13.0)

3.3 x3.3

399mv with 1/30s

0.1mv with 1/30s

17@3952x3952

56@1976x1976

67@1316x1316

1x1

2x2

3x3

0.1ms~15s

BUC5F-1230C

12.3M/IMX304(C, GS)

1.1” (14.13x10.35)

3.45x3.45

1146mv with 1/30s

0.1mv with 1/30s

23.4@4096x3000

46.3@2048x1500

1x1

0.244ms~15s

BUC5F-1200C

12M/IMX226(C)

1/1.7” (7.40x5.55)

1.85x1.85

280mv with 1/30s

0.1mv with 1/30s

25@4000x3000

50@2048x1080

1x1

2x2

0.1ms~15s

BUC5F-1200BC

12M/IMX577(C)

1/2” (6.29x4.71)

1.55x1.55

250mv with 1/30s

0.25mv with 1/30s

30@4056x3040

60@2028x1520

120@1014x760

1x1

2x2

4x4

0.1ms~5s

BUC5F-900C

9.0M/IMX305(C, GS)

1” (14.13x7.45)

3.45x3.45

1146mv with 1/30s

0.15mv with 1/30s

34@4096x2160

60@2048x1080

1x1

0.1ms~15s

BUC5F-900BC

9.0M/IMX533(C)

1” (11.31x11.28)

3.76x3.76

535mv with 1/30s

0.04mv with 1/30s

40@3008x3000

123@1488x1500

186@992x998

1x1

2x2

3x3

0.1ms~15s

BUC5F-830CC

8.3M/IMX485(C)

1/1.2” (11.14x6.26)

2.9x2.9

2188mv with 1/30s

0.15mv with 1/30s

45@3840x2160

70@1920x1080

1x1

2x2

0.02ms~15s

BUC5F-830DC

8.3M/IMX585(C)

1/1.2” (11.14x6.26)

2.9x2.9

5970(mV/lx/s)

0.13mv with 1/30s

45@3840x2160

70@1920x1080

1x1

2x2

0.02ms~15s

BUC5F-830EC

8.3M/IMX678(C)

1/1.8” (7.68x4.32)

2.0x2.0

3541(mV/lx/s)

0.15mv with 1/30s

45@3840x2160

70@1920x1080

1x1

2x2

0.02ms~15s

BUC5F-800C

8.0M/IMX294(C)

1.15” (13.00x13.00)

4.63 x4.63

419mv with 1/30s

0.12mv with 1/30s

30@2808x2808 (14bit)

139@1392x1392

139@696x696

1x1

2x2

4x4

0.1ms~15s

BUC5F-630C

6.3M/IMX178(C)

1/1.8” (7.37x4.92)

2.4x2.4

425mv with 1/30s

0.15mv with 1/30s

30@3072x2048

38@1536x1024

1x1

2x2

0.1ms~15s

BUC5F-630BC

6.3M/IMX178(C)

1/1.8” (7.37x4.92)

2.4x2.4

425mv with 1/30s

0.15mv with 1/30s

59@3072x2048

59@1536x1024

1x1

2x2

0.02ms~15s

BUC5F-500C

5.0M/IMX264(C, GS)

2/3” (8.45x7.07)

3.45x3.45

1146mv with 1/30s

0.15mv with 1/30s

35@2448x2048

50@1224x1024

1x1

0.1ms~15s

BUC5F-310C

3.1M/IMX123(C)

1/2.8” (5.12x3.84)

2.5x2.5

600mv with 1/30s

0.15mv with 1/30s

50@2048x1536

50@1920x1080

1x1
1x1

0.1ms~15s

BUC5F-310BC

3.1M/IMX265(C, GS)

1/1.8” (7.07x5.30)

3.45x3.45

1146mv with 1/30s

0.15mv with 1/30s

53@2048x1536

85@1024x768

1x1

0.1ms~15s

BUC5F-210C

2.1M/IMX482(C)

1/1.2” (11.14x6.26)

5.8x5.8

8935mv with 1/30s

0.6mv with 1/30s

96@1920x1080

1x1

14us~15s

BUC5F-200C

2M/IMX385(C)

1/2” (7.2x4.05)

3.75x3.75

2350mv with 1/30s

0.15mv with 1/30s

125@1920x1080

1x1

0.1ms~15s

Note: C: Color; M: Monochrome; GS: Global Shutter

Other Specification for BUC5F Series Cameras
Spectral Range	380-650nm (with IR-cut Filter)
White Balance	ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor
Color Technique	Ultra-fine^TM HISPVP /NA for Monochromatic Sensor
Capture/Control API	Windows/Linux/macOS/Android Multiple Platform SDK (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)
Recording System	Still Picture and Movie
Cooling System*	Natural
Operating Environment
Operating Temperature (in Centigrade)	-10~ 50
Storage Temperature (in Centigrade)	-20~ 60
Operating Humidity	30~80%RH
Storage Humidity	10~60%RH
Power Supply	DC 5V over PC USB Port
Software Environment
Operating System	Microsoft^®Windows^® XP / Vista / 7 / 8 /10 /11(32 & 64 bit) OSx(Mac OS X) Linux
PC Requirements	CPU: Equal to Intel Core2 2.8GHz or Higher
	Memory: 2GB or More
	USB Port: USB3.0 High-speed Port
	Display: 17” or Larger
	CD-ROM

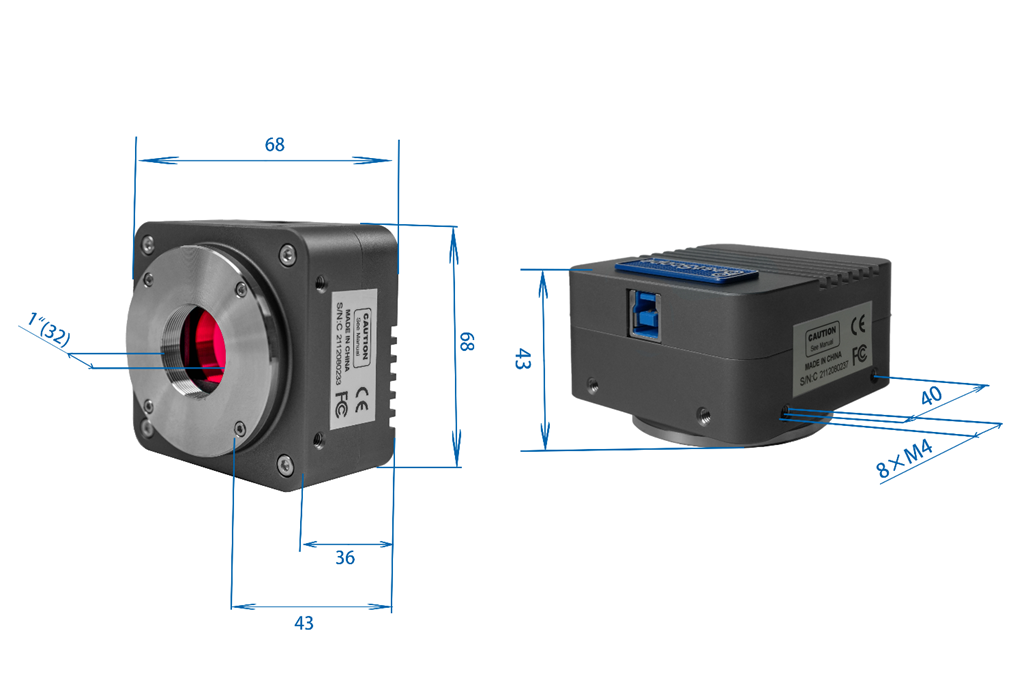

Dimension

The BUC5F body, made from tough, CNC aluminum alloy, ensures a heavy duty, workhouse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compare to other industrial camera solutions.

Packing Information for BUC5F

Standard Camera Packing List
A	Carton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo
B	Gift box L:15cm W:15cm H:10cm (0.58~0.6Kg/ box)
C	BUC5F series USB3.0 C-mount CMOS camera
D	High-speed USB3.0 A male to B male gold-plated connectors cable /2.0m
E	CD (Driver & utilities software, Ø12cm), we have used USB flash drive to replace the CD.
Optional Accessory
F	Adjustablelensadapter	C-mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope)
		C-mount to Dia.31.75mm eyepiece tube (Please choose 1 of them for your telescope)
G	Fixedlens adapter	C-mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope)
		C-Mount to Dia.31.75mm Eyepiece Tube (Please choose 1 of them for your telescope)
	Note: For F and G optional items, please specify your camera type (C-mount, microscope camera or telescope camera), ourengineer will help you to determine the right microscope or telescope camera adapter for your application.
H	(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube
I	(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube
J	(Dia.23.2mm to 31.75mm Ring)/ Adaptor rings for 31.75mm eyepiece tube
K	Calibrationkit	106011/TS-M1(X=0.01mm/100Div.); 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)

Extension of BUC5F with Microscope or Telescope Adapter

Extension	Picture
C-mount Camera		Machine vision; Medical imaging; Semiconductor equipment; Test instruments; Document scanners; 2D barcode readers; Web camera and security video; Microscope imaging;
Microscope Camera
Telescope Camera

Sample Image
