BUC4C-140M C-mount USB2.0 CCD Monochrome Microscope Camera (Sony ICX205AL Sensor, 1.4MP)
Introduction
BUC4C series CCD cameras are ultra-high performance Super HAD CCD camera. The cameras adopt Sony Super HAD CCD sensor as the image capture device; The Super HAD CCD is a version of Sony's high performance CCD HAD (Hole-Accumulation Diode) sensor with sharply improved sensitivity by the incorporation of a new semiconductor technology developed by Sony Corporation. USB2.0 is used as the data transfer interface.
BUC4C series CCD cameras come with advanced video & image processing application ImageView; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
The BUC4C series CCD cameras can be widely used in bright field, dark field, fluorescent light environment for microscope image capture and analysis.
Features
The BUC4C’s basic characteristic is as follows:
1. Standard C-Mount camera with SONY Super HAD CCD 0.8~5.2M sensor;
2. USB2.0 interface ensuring high speed data transmission;
3. Ultra-Fine color engine with perfect color reproduction capability;
4. With advanced video & image processing application ImageView;
5. Providing Windows/Linux/Mac OS multiple platforms SDK;
6. Native C/C++, C#/VB.NET, DirectShow, Twain Control API.
BUC4C Datasheet
Order Code | Sensor & Size(mm) | PixelSize(μm) | G Sensitivity Dark Signal | FPS/Resolution | Binning | Exposure |
BUC4C-520C | 5.2M/ICX655AQ(C) | 3.45x3.45 | 420mv with 1/30s 4mv with 1/30s | 4.3@2448x2050 | 1x1 | 0.22ms~60s |
BUC4C-510C | 5.1M/ICX452AQ(C) | 2.775x2.775 | 260mv with 1/30s 16mv with 1/30s | 4@2592x1944 | 1x1, 2x2 | 0.212ms~77ms |
BUC4C-500C | 5.0M/ICX282AQ(C) | 3.40x3.40 | 280mv with 1/30s 16mv with 1/30s | 4.5@2560x1920 | 1x1, 2x2 | 0.203ms~60s |
BUC4C-200C | 2.0M/ICX274AQ(C) | 4.40x4.40 | 420mv with 1/30s 8mv with 1/30s | 10@1600x1200 | 1x1 | 0.135ms~60s |
BUC4C-140BC | 1.4M/ICX205AK(C) | 4.65x4.65 | 400mv with 1/30s 16mv with 1/30s | 15@1360x1024 | 1x1 | 0.127ms~60s |
BUC4C-140M | 1.4M/ICX205AL(M) | 4.65x4.65 | 450mv with 1/30s 16mv with 1/30s | 15@1360x1024 | 1x1 | 0.127ms~60s |
C:Color; M:Monochrome;
Other Specification for BUC4C | |
Spectral Range | 380-650nm (with IR-cut Filter) |
White Balance | ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor |
Color Technique | Ultra-FineTM Color Engine/NA for Monochromatic Sensor |
Capture/Control API | Native C/C++, C#/VB.NET, DirectShow, Twain and Labview |
Recording System | Still Picture and Movie |
Cooling System* | Natural |
Operating Environment | |
Operating Temperature(in Centigrade) | -10~ 50 |
Storage Temperature(in Centigrade) | -20~ 60 |
Operating Humidity | 30~80%RH |
Storage Humidity | 10~60%RH |
Power Supply | DC 5V over PC USB Port |
Software Environment | |
Operating System | Microsoft®Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit) OSx(Mac OS X) Linux |
PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher |
Memory:2GB or More | |
USB Port:USB2.0 High-speed Port | |
Display:17” or Larger | |
CD-ROM | |

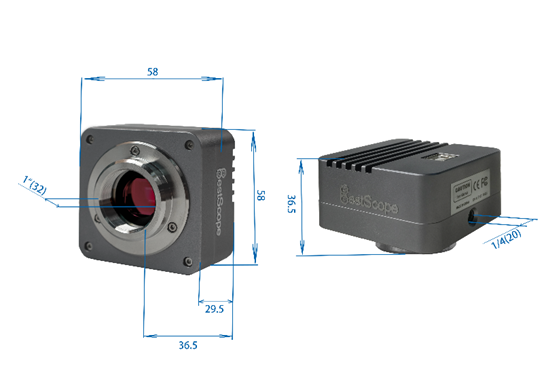

Dimension of BUC4C
The BUC4C body, made from tough, zinc alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.
Dimension of BUC4C

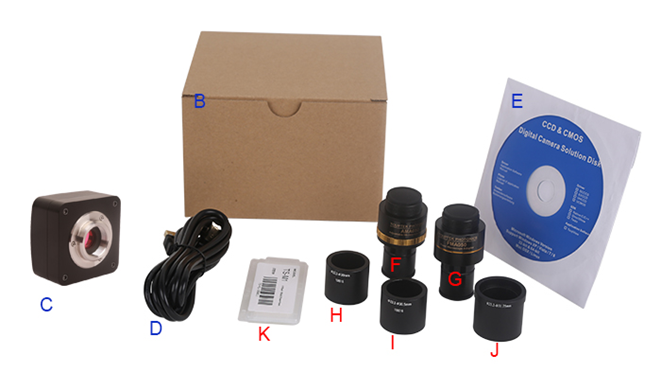

Packing Information of BUC4C
Standard Camera Packing List | |||
A | Carton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo | ||
B | Gift box L:15cm W:15cm H:10cm (0.67~0.8Kg/ box) | ||
C | BUC4C series camera | ||
D | High-speed USB2.0 A male to B male gold-plated connectors cable /2.0m | ||
E | CD (Driver & utilities software, Ø12cm) | ||

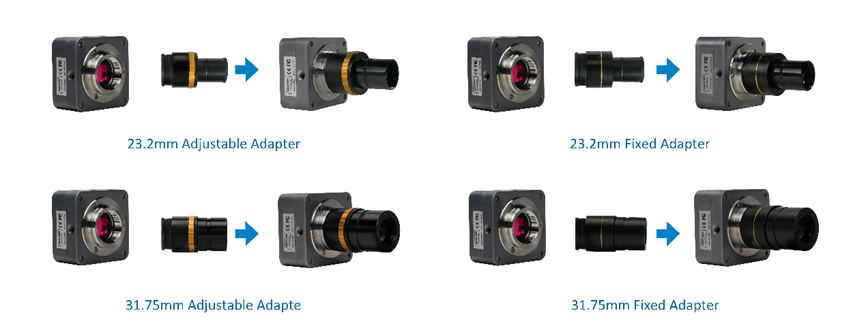

Optional Accessory | |||
F | Adjustablelensadapter | C-mount to Dia.23.2mm eyepiece tube | |
C-mount to Dia.31.75mm eyepiece tube | |||
G | Fixedlens adapter | C-mount to Dia.23.2mm eyepiece tube | |
C-mount to Dia.31.75mm eyepiece tube | |||
Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera) , engineer will help you to determine the right microscope or telescope camera adapter for your application; | |||
H | 108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube | ||
I | 108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube | ||
J | 108017(Dia.23.2mm to 31.75mm Ring)/ Adaptor rings for 31.75mm eyepiece tube | ||
K | Calibration kit | 106011/TS-M1(X=0.01mm/100Div.); | |
Extension of BUC4C with Microscope or Telescope Adapter
Extension | Picture | |
C-mount Camera |
| Machine vision; Medical imaging; |
Microscope Camera |
| |
Telescope Camera | ||
