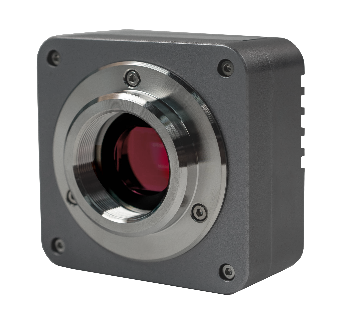

BUC1D-510AC C-Mount USB2.0 CMOS Microscope Camera (AR0521 Sensor, 5.1MP)
Introduction
BUC1D series cameras’ hardware resolutions ranges from 2.1MP to 12MP and come with the zinc aluminum alloy compact housing. BUC1D come with advanced video & image processing application ImageView; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API; The BUC1D can be widely used in bright field light environment and microscope image capture and analysis with moderate frame rate.
Feature
2. With hardware resolution among 2.10MP to 12MP;
3. USB2.0 interface ensuring high speed data transmission;
4. Integrated with large capacity memory chip ensures data synchronous transmission, low latency, high frame rate and stability;
5. Compatible with Microsoft USB Video Class protocol and support the third-party software development;
6. Built in Ultra-fine hardware ISP engine ensures high color restoration;
(1) Support automatic/manual exposure switching, accurate exposure time control, and real-time adjustment of exposure target area;
(2) Support automatic/manual/ROI white balance;
(3) Support color adjustment/color mode selection/image flipping;
(4) Support histogram adjust/flat field correction/dark field correction/video ROI;
7. High performance MJPEG compression algorithm, combined with the unique decoding method of image restoration algorithm ensure highest frame rate of USB2.0 camera in the industry. The FPS for 5MP and 8MP can be up to 30FPS; the FPS for 12MP can be up to 15FPS;
8. Comply with CE and FCC agreements;
9. CNC aluminum alloy housing;
10. With advanced video & image processing application ImageView;
11. Providing Windows/Linux/Mac OS multiple platforms SDK;
12. Very competitive pricing.
Specification
Order Code | Sensor & Size(mm) | Pixel(μm) | G Responsivity Dynamic range SNRmax | FPS/Resolution | Binning | Exposure |
BUC1D-510AC | 5.1M/AR0521(C) | 2.2x2.2 | 18.8ke-/lus 73dB 40dB | 30@2592x1944 | 1x1 1x1 1x1 | 0.1-1000 ms |
Other Specification for BUC1D Camera | |
Spectral Range | 380-650nm (with IR-cut Filter) |
White Balance | ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor |
Color Technique | Ultra-FineTM Color Engine/NA for Monochromatic Sensor |
Capture/Control API | Native C/C++, C#/VB.NET, DirectShow, Twain and Labview |
Recording System | Still Picture and Movie |
Cooling System* | Natural |
Operating Environment | |
Operating Temperature (in Centigrade) | -10~ 50 |
Storage Temperature (in Centigrade) | -20~ 60 |
Operating Humidity | 30~80%RH |
Storage Humidity | 10~60%RH |
Power Supply | DC 5V over PC USB Port |
Software Environment | |
Operating System | Microsoft®Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit) OSx(Mac OS X) Linux |
PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher |
Memory:2GB or More | |
USB Port:USB2.0 High-speed Port | |
Display:17” or Larger | |
CD-ROM | |
The BUC1D body, made from tough, aluminum alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

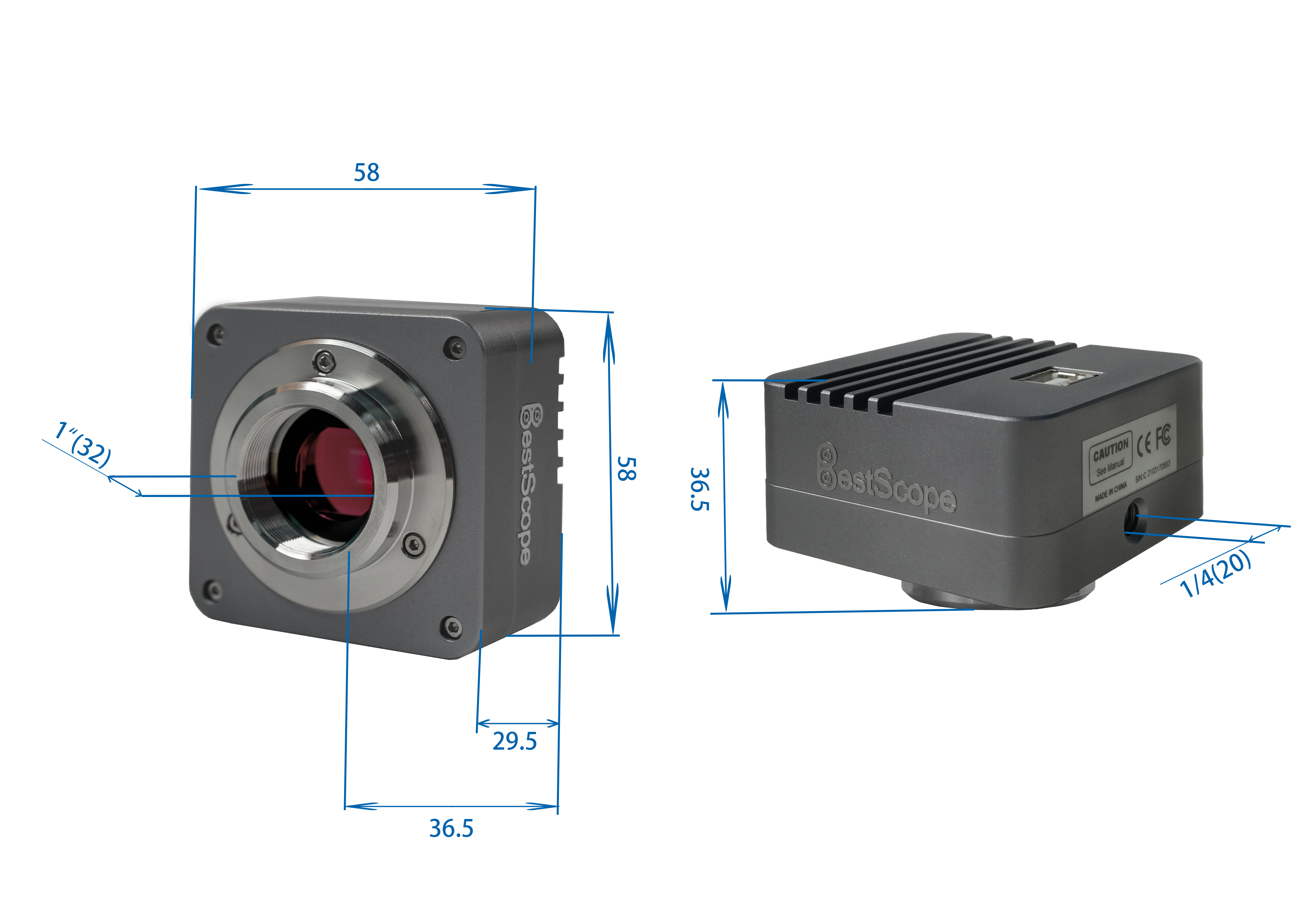

Dimension of BUC1D

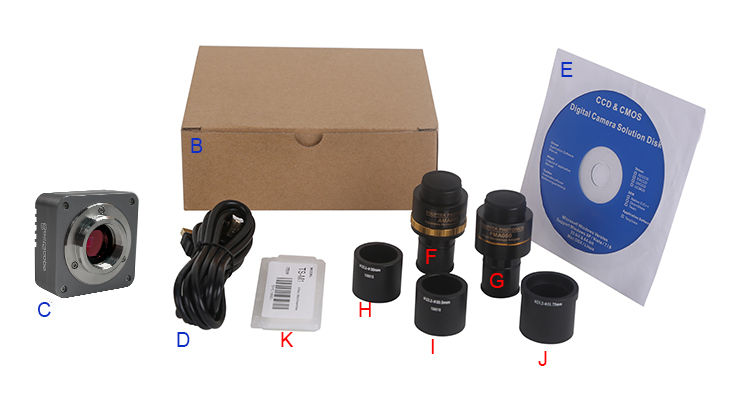

Standard Camera Packing List | |||
A | Carton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo | ||
B | Gift box L:15cm W:15cm H:10cm (0.5~0.55Kg/ box) | ||
C | BUC1D series USB2.0 C-mount CMOS camera | ||
D | High-speed USB2.0 A male to B male gold-plated connectors cable /2.0m | ||
E | CD (Driver & utilities software, Ø12cm) | ||

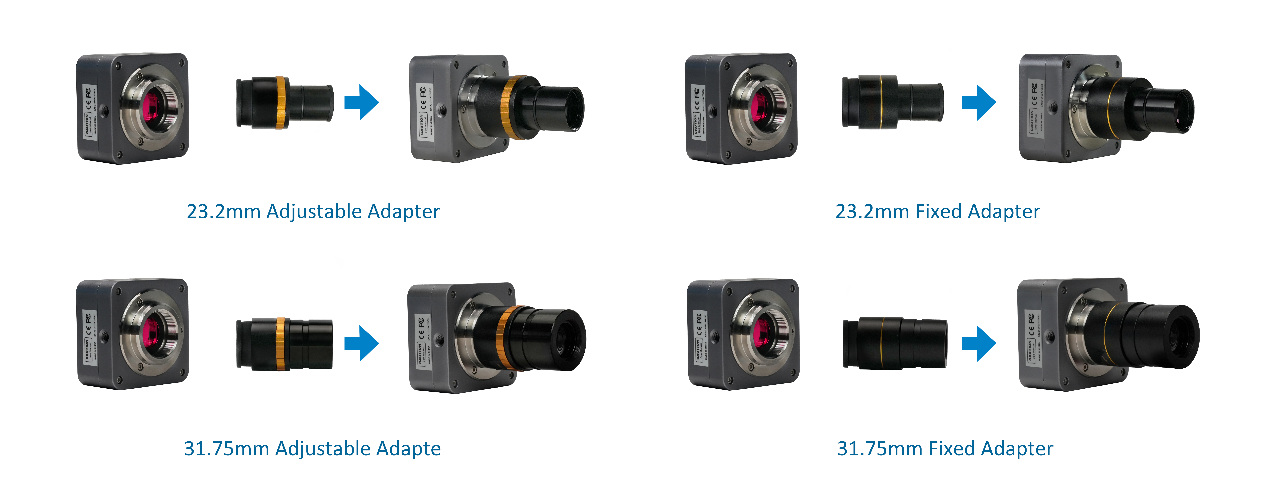

Optional Accessory | |||
F | Adjustable lens adapter | C-mount to Dia.23.2mm eyepiece tube | |
C-mount to Dia.31.75mm eyepiece tube | |||
G | Fixed lens Adapter | C-mount to Dia.23.2mm eyepiece tube | |
C-mount to Dia.31.75mm eyepiece tube | |||
Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera) , Our engineer will help you to determine the right microscope or telescope camera adapter for your application; | |||
H | 108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube | ||
I | 108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube | ||
J | 108017(Dia.23.2mm to 31.75mm Ring)/ Adapter rings for 31.75mm eyepiece tube | ||
K | Calibration kit | 106011/TS-M1(X=0.01mm/100Div.); | |
Extension | Picture | |
C-mount Camera | Machine vision; Medical imaging; | |
Microscope Camera | ||
| Telescope Camera | ||
