BUC1C-900C Microscope Digital Camera (Special Sensor, 9.0MP)
Introduction
BUC1C series cameras’ hardware resolutions ranges from 0.35M to 14M and come with the zinc aluminum alloy compact housing. BUC1C come with advanced video & image processing application ImageView; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API; The BUC1C can be widely used in bright field light environment and microscope image capture and analysis with moderate frame rate.
Feature
1. Standard C-Mount with Aptina CMOS sensor;
2. With hardware resolution among 0.35M to 14M;
3. Durable zinc aluminum alloy housing;
4. USB2.0 interface ensuring high speed data transmission;
5. Ultra-FineTM color engine with perfect color reproduction capability;
6. With advanced video & image processing application ImageView;
7. Providing Windows/Linux/Mac OS multiple platforms SDK;
8. Native C/C++, C#/VB.NET, DirectShow, Twain Control API.
Specification
Order Code | Sensor & Size(mm) | Pixel(μm) | G Responsivity Dynamic range SNRmax | FPS/Resolution | Binning | Exposure |
BUC1C-900C | 9M/Special(C) | 1.67x1.67 | 0.31v/lux-sec 65.2dB 34dB | 1.9@3488x2616 | 1x1, 2x2, 4x4 | 0.4ms~2000ms |
Other Specification for BUC1C Camera | |
Spectral Range | 380-650nm (with IR-cut Filter) |
White Balance | ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor |
Color Technique | Ultra-FineTM Color Engine/NA for Monochromatic Sensor |
Capture/Control API | Native C/C++, C#/VB.NET, DirectShow, Twain and Labview |
Recording System | Still Picture and Movie |
Cooling System* | Natural |
Operating Environment | |
Operating Temperature (in Centigrade) | -10~ 50 |
Storage Temperature (in Centigrade) | -20~ 60 |
Operating Humidity | 30~80%RH |
Storage Humidity | 10~60%RH |
Power Supply | DC 5V over PC USB Port |
Software Environment | |
Operating System | Microsoft®Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit) OSx(Mac OS X) Linux |
PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher |
Memory:2GB or More | |
USB Port:USB2.0 High-speed Port | |
Display:17” or Larger | |
CD-ROM | |
The BUC1C body, made from tough, zinc alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.
Dimension of BUC1C
Standard Camera Packing List | ||
A | Carton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo | |
B | Gift box L:15cm W:15cm H:10cm (0.5~0.55Kg/ box) | |
C | BUC1C series USB2.0 C-mount CMOS camera | |
D | High-speed USB2.0 A male to B male gold-plated connectors cable /2.0m | |
E | CD (Driver & utilities software, Ø12cm) | |
Optional Accessory | ||

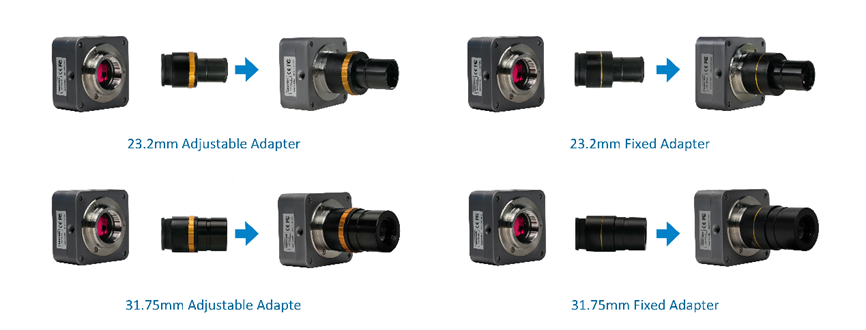

F | Adjustable lens adapter | C-mount to Dia.23.2mm eyepiece tube |
C-mount to Dia.31.75mm eyepiece tube | ||
G | Fixed lens adapter | C-mount to Dia.23.2mm eyepiece tube |
C-mount to Dia.31.75mm eyepiece tube | ||
Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera), engineer will help you to determine the right microscope or telescope camera adapter for your application; | ||
H | 108015(Dia.23.2mm to 30.0mm Ring)/adapter rings for 30mm eyepiece tube | |
I | 108016(Dia.23.2mm to 30.5mm Ring)/ adapter rings for 30.5mm eyepiece tube | |
J | 108017(Dia.23.2mm to 31.75mm Ring)/ adapter rings for 31.75mm eyepiece tube | |
K | Calibration kit | 106011/TS-M1(X=0.01mm/100Div.); |
Extension | Picture | |
C-mount Camera |
| Machine vision; Medical imaging; |
Microscope Camera |
| |
| Telescope Camera | ||
