BS-2063FT(LED,TB) LED Fluorescence Trinocular Microscope
Introduction
BS-2063F(LED, TB) Series LED Fluorescence Microscope is a professional solution for tuberculosis test applications with LED fluorescence excitation and transmitted-light brightfield illumination.
If you want to analyze tuberculosis with Ziehl-Neelsen-Staining or if you like to use fluorescence excitation, e.g. with Auramine O dye. BS-2063F(LED,TB) can simply switch between the two modes.
Feature
- N.A.0.9/1.25 Swing-out Condenser
- Dark field condenser (dry) available to 4X-60X Objective
- Dark field condenser (oil) available to 100X Objective
Application
BS-2063F(LED,TB) Series LED Fluorescence Microscope is specifically designed for the daily routine work of education, pathology diagnosis, hospital, clinical and laboratory examinations and research.
Specification
Item | Specification | BS-2063FB (LED,TB) | BS-2063FT (LED,TB) |
Optical System | Color Corrected Infinite Optical System | ● | ● |
Viewing Head | Seidentopf Binocular Head, Inclined 30°, Rotatable 360°, Interpupillary Distance: 48-76mm | ● | |
Seidentopf Trinocular Head, Inclined 30°, Rotatable 360°, Interpupillary Distance: 48-76mm, Light distribution (both): 100: 0 (100% for eyepiece) 80:20(80% for trinocular head and 20% for eyepiece) | ● | ||
Eyepiece | WF10×/22mm (Diopter adjustable), tube diameter: 30mm | ● | ● |
WF15×/16mm(Diopter adjustable) | ○ | ○ | |
WF10×/22mm with 0.1mm eyepiece micrometer | ○ | ○ | |
Infinite Plan Achromatic Objective (without coverslips) | 4×/0.10, W.D.=12.10mm | ○ | ○ |
10×/0.25, W.D.=4.64mm | ● | ● | |
20×/0.40(S), W.D.=2.41mm | ○ | ○ | |
40×/0.65 (S), W.D.=0.65mm | ● | ● | |
60×/0.90(S) W.D.=0.33mm | ● | ● | |
100×/1.25(S, Oil), W.D.=0.12mm | ● | ● | |
Nosepiece | Backward Quintuple Nosepiece | ● | ● |

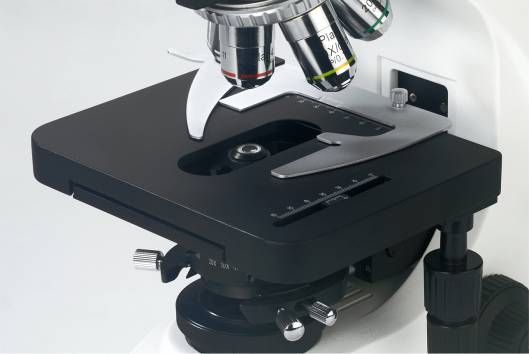

Stage | Rackless Double Layers Mechanical stage, Size: 182mm×140mm, Travel Range: 77mm×52mm, Scale: 0.1mm, Two Slide Holder | ● | ● |
Condenser | Swing out condenser N.A.0.9/1.25, withiris diaphragm | ● | ● |
Focusing | Coaxial Coarse and Fine Focusing Knob, Coarse Focusing Travel Range: 25mm, Coarse Stroke 42.4mm/rotation, Fine Stroke 0.2mm/Rotation, Fine division: 2µm | ● | ● |
Koehler Illumination | 3W LED Lamp, lifetime 20000 hours, brightness adjustable Field diaphragm, center adjustable Rechargeable battery pack (6V DC), 24 hrs working time | ● | ● |
Dark Field Unit | Darkfield condenser (Dry), apply to 4×- 40× objective | ○ | ○ |
Dark Field Condenser (Oil), apply to 100× objective | ○ | ○ | |
Polarizing Unit | Analyzer and Polarizer | ○ | ○ |

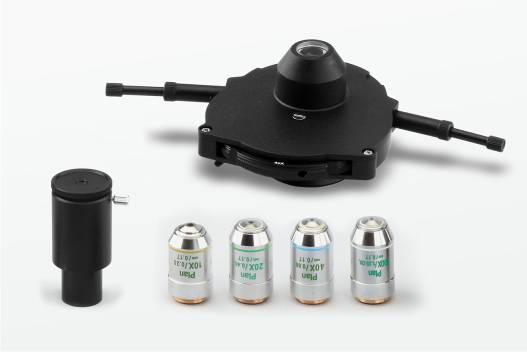

Phase Contrast Unit | Quintuple hole turret unit with 10×/20×/40×/100× phase contrast objective | ○ | ○ |
Fluorescent Attachment | LED Epi-Fluorescent unit (Six-hole disc, Auramine O fluorescent filter (Chroma brand, mainly used for Tuberculosis examination)) 3W LED fluorescent lamp Rechargeable battery pack (6V DC) ,24 hrs working time | ● | ● |
100W Mercury lamp Epi-Fluorescence unit (Six-hole disc, Auramine O/Uv/V/B/G and other filters) | ○ | ○ | |
Video Adapter | 1× C-mount (Used for DSLR cameras or large format microscope camera) | ○ | |
0.5× C-mount (focus adjustable, used for microscope camera) | ● | ||
Photo Adapter | Used for CANON／NIKON／OLYMPUS/ SONY DLSR cameras | ○ | |
Filter | Blue | ● | ● |
Green/Amber/Grey | ○ | ○ | |
Power Supply | Wide voltage input: 100V-240V | ● | ● |
Packing | 1 carton/set, Packing Size: 755mm×340mm×440mm, Gross Weight: 17 kgs, Net Weight: 15 kgs | ● | ● |
Note:"●"In Table Is Standard outfits,"○"Is Optional Accessories.

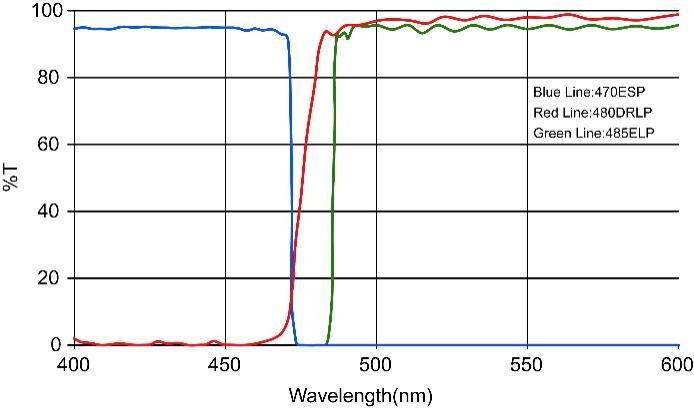

Fluorescent filters
Auramine O | Wavelength (nm) |
Exciter | 470Sp |
Dichroic | 480DRLP |
Barrier | 485LP |
