BMM-4K8MPA Electric Controlled Continuous Zoom and Autofocus Digital Macro Microscope
BMM-4K8MPA
Delivery
FOB
minimum order
1 set
Supply Ability
5000set / Month
Country of Origin
Beijing, China
Stock Time
28Day
Quantity
Introduction
BMM is a series of electric controlled continuous zoom and autofocus all-in-one digital macro microscope with a large field of view. It is integrated with HDMI camera, Electric Controlled Continuous Zoom Auto-focus Objective and LED Integrated Illumintaion Light. BMM is the abbreviation of BestScope Macro Microscope. Different products in the BMM series can be formed with different part to satisfy the applicatuon requirement.
BMM can be assembled with various brackets or arms and offer a continuous zooming ratio with different lens. BMM also supports autofocus mode and manual focus mode.
BMM comes with a high-performance SONY CMOS sensor. It also has an embedded ARM core, allowing the camera to be connected directly to the HDMI monitor. The camera has XFCAMView software built within it, including Camera Control Panel, Auto Focus Control Panel, Measurement Toolbar, and Synthesis Camera Control Toolbar. Users can directly control the camera and perform various operations through a USB mouse. The images and videos captured by BMM can be saved on an SD card for on-site analysis and follow-up research.
BMM can be widely used in industrial inspection, medical observation, teaching and scientific research, automation system, and other fields.
BMM-4K8MPA supports 4K30FPS HDMI output and USB/ LAN/WIFI outputs.
Features
1. 5 groups 16 elements lens with 0.028~0.56X, 20X zoom ratio, supports auto and manual focus
2. 192mm standard working distance with 150~195mm depth of field
3. At standard working distance, the large field of view 200mm*112.5mm at low magnification, helping users to quickly locate the target object, the small field of view 10mm*5.6mm at higher magnification, helping users to observe microscopically
4. Sony 1/2.8” 4K Starvis CMOS with high signal-to-noise ratio
5. 4K HDMI/USB/ETH/WiFi multiple video outputs
6. 4K/1080P auto switching according to monitor resolution
7. SD card/USB flash drive for captured image and video storage, support local preview and playback
8. Built-in mouse control software XFCAMView, all functions can be realized with USB mouse
9. Embedded mouse Camera Control Panel, Measurement Toolbar, Synthesis Control Toolbar, AF Control Panel
10. Multi-language support
11. Head suction LED ring light, the brightness can be directly controlled by XFCAMView
12. With the adapter bracket of 76mm diameter, a electric controlled continuous zoom BMM can be built
Application
BMM can be widely used in industrial inspection, medical observation, teaching and scientific research, automation system, and other fields.
Specification
1. BMM Camera Module Datasheet
Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity/ Dark Signal | FPS/Resolution | Binning | Exposure(ms) |
BMM-4K8MPA | Sony IMX415LQR-C 1/2.8"(5.57x3.13) | 1.45x1.45 | 300mv/0.13 with 1/30s | 30@3840*2160(HDMI) 30@3840*2160(NETWORK) 30@3840*2160(USB) | 1x1 | 0.04~1000 |
C: Color; M: Monochrome;
2. BMM Lens Module Datasheet
Order Code | Working Distance(mm) | Zoom Range | MTF(lp/mm) | Distortion | FOV@1X(mm) | FOV@20X(mm) |
BMM-20X | 150~195 | 0.028X~0.56X | 160 | 0.5% | 200x112.5 | 10x5.6 |
1X and 20x are defined as the normalized magnification, which is only used to represent the relative relationship between the lowest and highest magnification. Here, the normalized equations are 1x = 0.028/0.028; 20X=0.56/0.028;
3. BMM Light Module

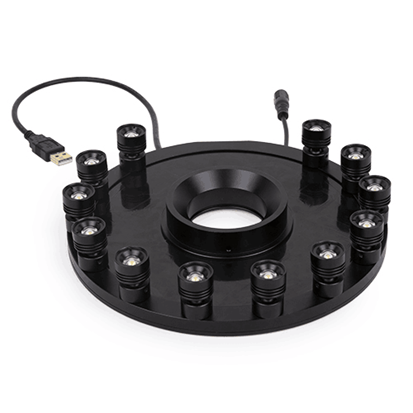

BRL-8A LED Ring Light
Order Code | LED | Power | Inner Dia.(mm) | Out Dia.(mm) |
BRL-8A | 8 CREE xpes | 3V/3A | 50 | 76 |
BRL: BestScope ring light with adjustable brightness
BMM can use BRL-12A as external light for the large FOV illumination

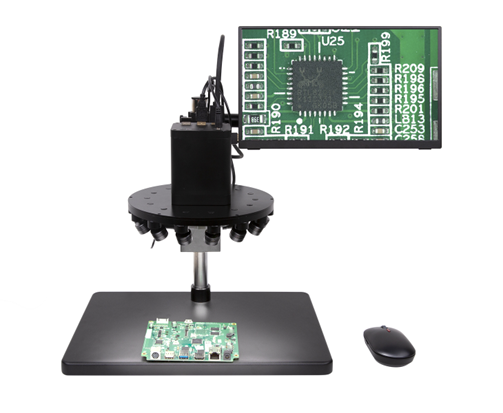

BRL-12A LED light BS-30A(Stand)+BMM-4K8MPA(with BRL-12A)+4K Monitor
4. Specification of BMM-4K8MPA
Interface & Button Functions | ||
 | USB Mouse | USB mouse for XFCAMView control |
USB2.0 | Connect USB flash drive to save pictures and videos Connect 5G WLAN module to transfer video wirelessly in real time with ImageView/ ImageLite | |
HDMI | Comply with HDMI1.4 standard. 4K/1080P format video output and supporting automatic switch between 4K and 1080P format according to the connected monitors | |
USB Video | Connect PC or other host device to realize video image transmission with ImageView/ ImageLite | |
LAN | LAN port to connect router and switch to transfer video withImageView/ ImageLite | |
ON/OFF | Power on/off switch | |
LED | Power LED indicator | |
SD | Comply with SDIO3.0 standard and SD card could be inserted for video and images saving | |
DC12V3A | DC12V3A power input | |
XFCAMView Software Funcitons | ||
UI Operation | With USB mouse to operate on the embedded XFCAMView | |
Image Capture | 8M (3840*2160) JPEG/TIFF image in SD card or USB flash drive | |
Video Record | Video format：8M(3840*2160) H264/H265 encoded MP4 file Video saving frame rate:30fps | |
Camera Control Panel | IncludingExposure,Gain, White Balance,Sharpness,Denoise,Denoise,Saturation, Gamma, Contrast,Brightness, Power Frequency control | |
Measurement Toolbar | IncludingCalibration,Measurement, and measurement parameter Exportfunctions | |
Synthesis Control Toolbar | Including software Zoom,Flip,Freeze,Crosshair,LEDControl,Auto-focus,Comparison,Browser,Setting,VersionCheckfunction | |
Auto Focus Control Panel | IncludingZoom,AutoFocus,OnePush,ManualFocus,Reset, and other functions | |
Software ImageView Environment under LAN/WLAN/USB Video Output | |
White Balance | Auto White Balance |
Color Technique | Ultra-Fine Color Engine |
Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) |
Recording System | Still Picture or Movie |
Operating System | Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 /10(32 & 64 bit)/View OSx(Mac OS X)/Lite Linux/Lite |
PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher |
Memory: 4GB or More | |
Ethernet Port: RJ45 Ethernet Port | |
Display:19” or Larger | |
CD-ROM | |
Operating Environment | ||
Operating Temperature(in Centidegree) | -10~ 50 | |
Storage Temperature(in Centidegree) | -20~ 60 | |
Operating Humidity | 30~80%RH | |
Storage Humidity | 10~60%RH | |
Dimension | ||
Length x Width x Height | 80mm x 80mm x 80mm | |
Shipping Weight | 0.75kg | |

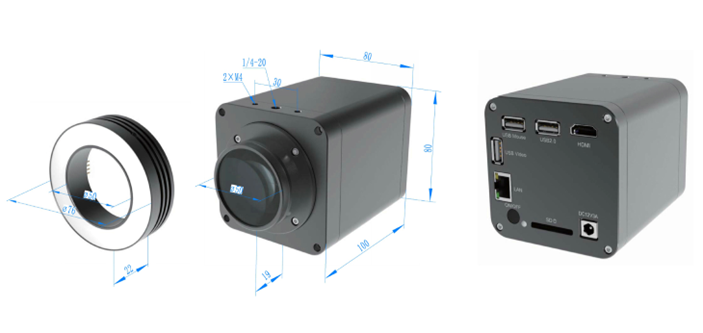

Dimension of BMM-4K8MPA
Dimension of BMM-4K8MPA
Packing Information of BMM-4K8MPA
Packing Information of BMM-4K8MPA

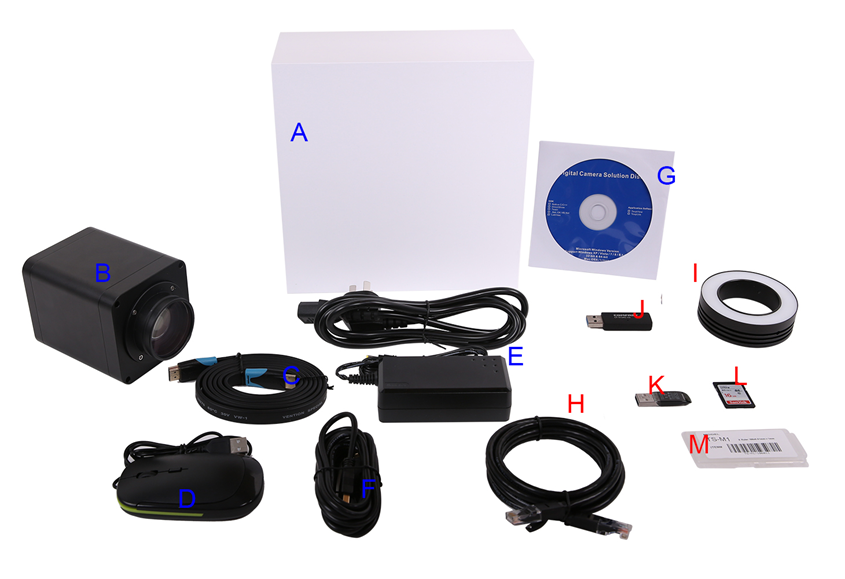

Standard Packing List | |||
A | Gift box: L:220cm W:220cm H:110cm (1pcs, 2.0kg/box) | ||
B | BMM-4K8MPA | ||
C | Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 3A | American Standard: Model: HKA03612030-7K : UL/CE/FCC(With American Standard AC Power Cable) European Standard: Model: HKA03612030-7K : UL/CE/FCC(With European Standard AC Power Cable) EMI Standard: FCC Part 15 Subpart B EMS Standard: EN61000-4-2,3,4,5,6 | |
D | USB Mouse | ||
E | HDMI Cable | ||
F | USB2.0 A male to A male gold-plated connectors cable /2.0m | ||
G | CD (Driver & utilities software, Ø12cm) | ||
Optional Accessory | |||
H | Ethernet cable | ||
I | LED Ring Light(BRL-8A) | ||
J | USB flash drive | ||
K | USB WLAN adapter | ||
L | SD card(16G) | ||
M | Calibration kit | 106011/TS-M1(X=0.01mm/100Div.); 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.) | |
Images Captured with BMM-4K8MPA

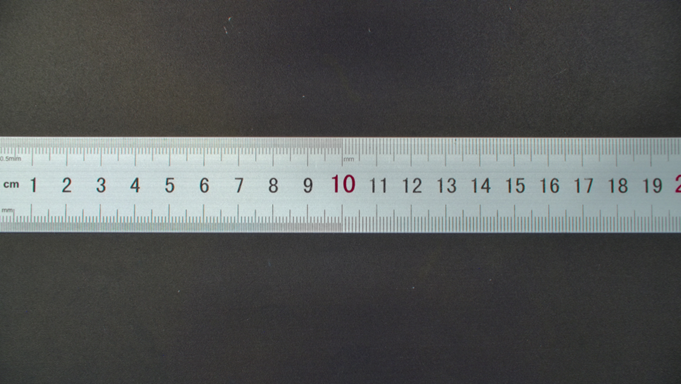

Ruler Captured with BMM-4K8MPA at 1X

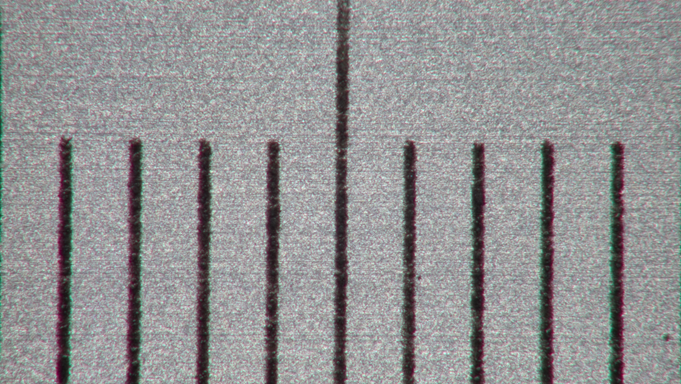

Ruler Captured with BMM-4K8MPA at 10X

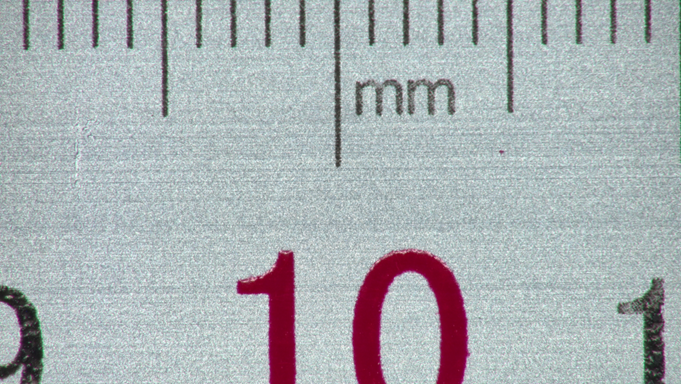

Ruler Captured with BMM-4K8MPA at 20X

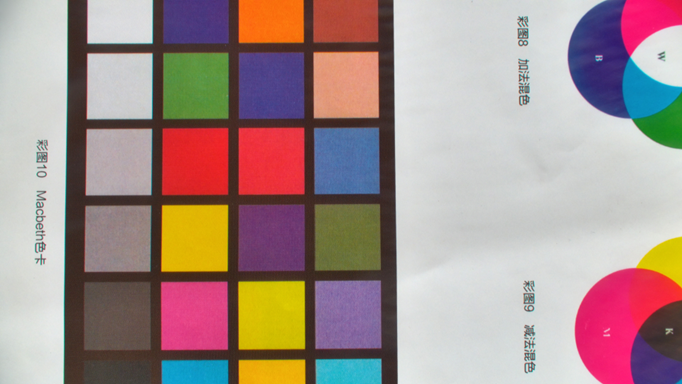

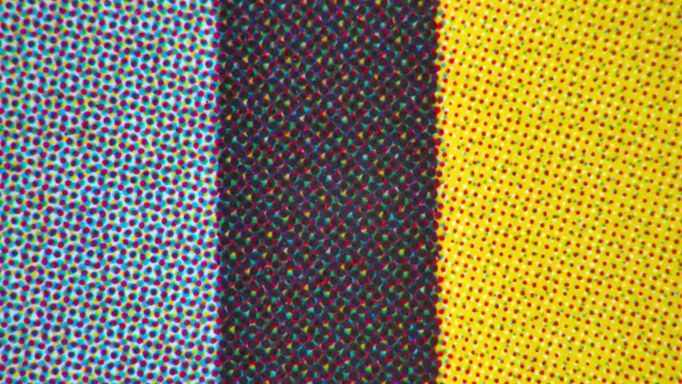

Print Captured with BMM-4K8MPA at 1.0X

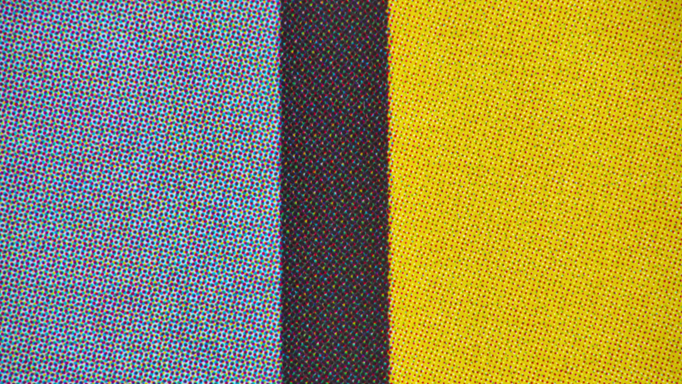

Print Captured with BMM-4K8MPA at 10X
Print Captured with BMM-4K8MPA at 20X

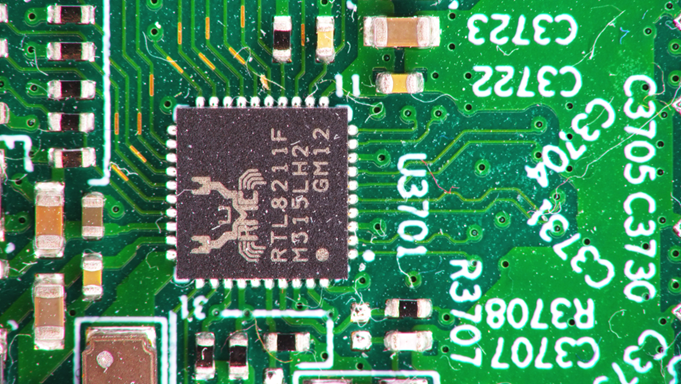

PCB Captured with BMM-4K8MPA at 4.0X

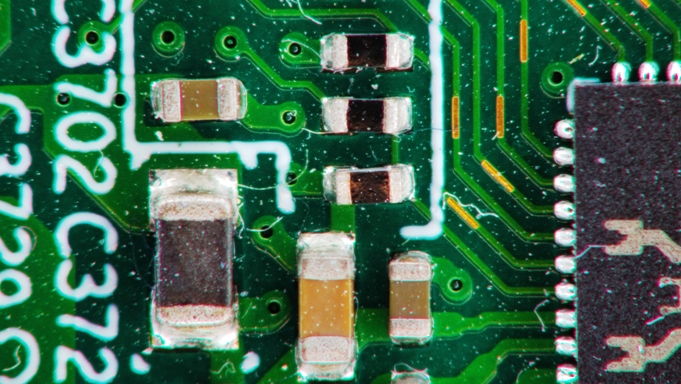

PCB Captured with BMM-4K8MPA at 10X

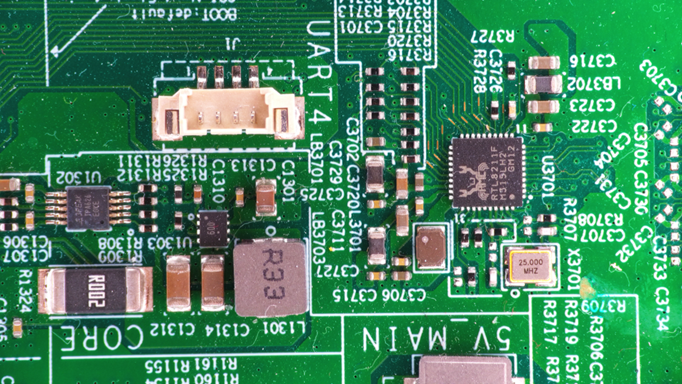

PCB Captured with BMM-4K8MPA at 20X
