BLC-221 LCD Digital Microscope Camera(Sony IMX307 Sensor, 2.0MP)

BLC-221

The BLC-221 LCD digital camera is intended to be used for the acquisition of digital images from the stereo microscopes, biological microscopes and other optical microscopes.

Delivery

FOB

minimum order

1 set

Supply Ability

10000set / Month

Country of Origin

Beijing,China

Stock Time

28Day

Quantity

Contact Now

add to cart

Introduction

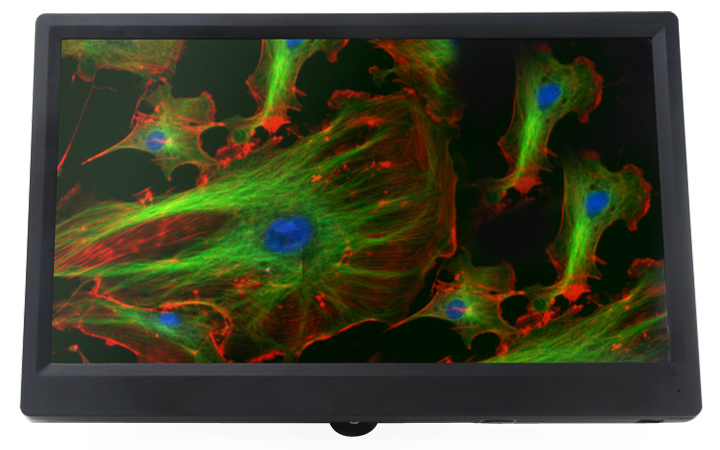

The BLC-221 LCD digital camera is intended to be used for the acquisition of digital images from the stereo microscopes, biological microscopes and other optical microscopes. This LCD digital camera is a combination of BHC4-1080A HDMI digital camera and HD1080P133A full HD LCD screen. The basic characteristic is listed as below:
1. 2.0MP Sony Starvis back illuminated CMOS sensor.
2. FHD HDMI video outputs.
3. SD card for the captured image and video storage.
4. Embedded XCamView for the control of the camera, with measurement function.
5. With strong ISP and other related processing functions.
6. 11.6 inch 1080P LCD screen, the perfect match of camera and LCD screen resolution.

Application

The possible applications of BLC-221 are as follows:
1. Scientific research, education (teaching, demonstration and academic exchanges).
2. Digital laboratory, medical research.
3. Industrial visual (PCB examination, IC quality control, mechanical part inspection).
4. Medical treatment (pathological observation).
5. Food (microbial colony observation and counting).

Interface on the Camera Body

Available Ports on the Back Panel of the Camera Body

Camera Datasheet

Order Code

Sensor & Size(mm)

Pixel(μm)

G Sensitivity

FPS/Resolution

Binning

Exposure(ms)

BLC-221

Sony IMX307(C)

1/2.8"(5.57x3.13)

2.9x2.9

1300mv with 1/30s

60@1920*1080(HDMI)

1x1

0.01~1000

Camera Function Description

Video Output

Video Output Interface

Function Description

HDMI Interface

Comply with HDMI1.4 standard;

60fps@1080P

Image Capture and Video Saving in SD card

Function Name

Function Description

Video Saving

Video format: 2M(1920*1080) H264 encoded MP4 file；

Video saving frame rate: 50~60fps (related with SD card performance);

Image Capture

2M (1920*1080) JPEG image in SD card

ISP Function

Function Name	Function Description
Exposure / Gain	Automatic / Manual Exposure
White Balance	Manual / Automatic / ROI Mode
Sharpening	Supported
3D Denoise	Supported
Saturation Adjustment	Supported
Contrast Adjustment	Supported
Brightness Adjustment	Supported
Gamma Adjustment	Supported
50HZ/60HZ Anti-flicker Function	Supported

Image Operation Function

Function Name	Function Description
Zoom In/Zoom Out	Up to 10X
Mirror/Flip	Supported
Freeze	Supported
Cross Line	Supported
Embedded Files Browser	Supported
Video Playback	Supported

Other Functions

Function Name	Function Description
Restore Factory Settings	Supported
Multiple Language Support	English / Simplified Chinese / Traditional Chinese / Korean / Thai / French / German / Japanese / Italian

HD1080P133A Datasheet

Order Code	Active Area(Inch)	Video Fomat	Resolution	Contrast	Color(Million)	View Angle
HD1080P133A	11.6	HDMI	1080P	1000:1	16.7	IPS Full View

Basic Performance
LCD Panel	Panasonic IPS LCD Screen(Super TFT)
Input Video Format	HDMI
Native Resolution	1920 x 1080
Display Type	16:9 Ratio 11.6 Inch Active Matrix Super TFT LCD
Typical Contrast Ratio	1000:1
Colors	16.7 Million
Viewing Angle(L/R/U/D)	IPS Full Vew
Active Display Area	258mm(W) × 145mm(H)
Pixel Pitch	0.134(W) X 0.134(H) mm
Brightness	350 cd/ sq.m ;400cd sq.m / Optional
Backlight	LED Backlight, 50000 hours
Outline Parameter
Color	Black
Dimension	281(L)179(H)15.6(W) mm
Weight	400g
Operating Environment
Operating Temperature	-15 Degree~55 Degree
Humidity Non Condensing	Operating:10%-90%, Storage: 5%-90%
Synchronization Range	30-80 KHz Horizontal, 55-75 Hz Vertical
Power Supply	AC110V-220V /DC12V(1A )
Power Consumption	Max 12W

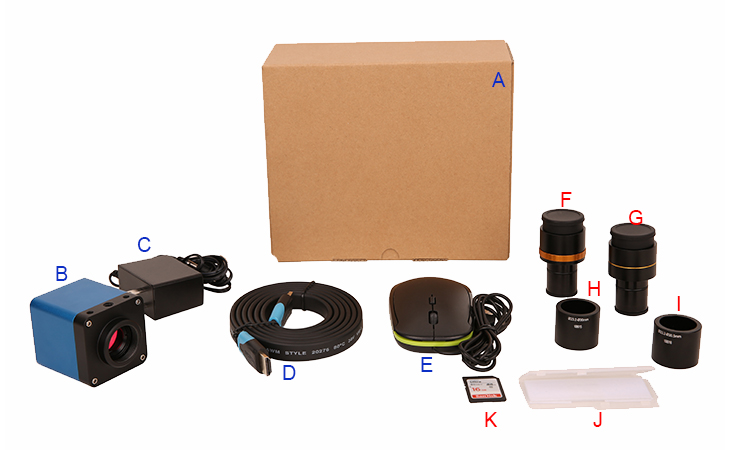

Packing Information

BLC-221 FHD HDMI Camera Packing Information

Standard Packing List
A	Gift box : L:17.5cm W:17.5cm H:8.5cm (1pcs, 0.85kg/ box)
B	BHC4-1080A
C	Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A American standard: Model: GS12U12-P1I 12W/12V/1A: UL/CUL/BSMI/CB/FCC EMI standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338 EMS standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3, class A light industry standard
	European standard:Model:GS12E12-P1I 12W/12V/1A; TUV(GS)/CB/CE/ROHS EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338 EMS standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3, class A light industry standard
D	HDMI cable
E	USB mouse/USB wireless mouse
L	HD1080P133A screen
Optional Accessory
F	Adjustable lens adapter	C-Mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope)	108001/AMA037 108002/AMA050 108003/AMA075
		C-Mount to Dia.31.75mm eyepiece tube (Please choose 1 of them for your telescope)	108008/ATA037 108009/ATA050 108010/ATA075
G	Fixed lens adapter	C-Mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope)	108005/FMA037 108006/FMA050 108007/FMA075
		C-Mount to Dia.31.75mm eyepiece tube (Please choose 1 of them for your telescope)	108011/FTA037 108012/FTA050 108013/FTA075
	Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera), ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application;
H	108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube
I	108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube
J	Calibration kit	106011/TS-M1(X=0.01mm/100Div.); 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)
K	SD card(4G or 8G)

Sample Images

Alfalfa Stem Captured with BLC-221

Top Bud. Captured with BLC-221
