BHC4-1080P8MPB C-mount HDMI+USB Output CMOS Microscope Camera (Sony IMX415 Sensor, 8.3MP)

BHC4-1080P8MPB

Delivery

FOB

minimum order

1 set

Supply Ability

10000set / Month

Country of Origin

Beijing, China

Stock Time

28Day

Quantity

Contact Now

add to cart

Introduction
BHC4-1080P series camera is a multiple interfaces (HDMI+USB2.0+SD card) CMOS camera and it adopts ultra-high performance Sony IMX385 or 415 CMOS sensor as the image-picking device. HDMI+USB2.0 are used as the data transfer interface to HDMI display or computer.
For HDMI output, The XCamView will be loaded and a camera control panel and toolbar are overlaid on the HDMI dsiplayer, in this case, the USB mouse can be used to set the camera, browse and compare the captured image, play the video ital.
For USB2.0 output, unplug the mouse and plug in the USB2.0 cable to the camera and computer, then the video stream can be transfer to computer with the advanced software ImageView.
The included Windows software ImageView offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection.
For Mac and Linux, there is a lite version of the software ImageView which can capture video and still images, and includes limited processing features.

Feature

TheBHC4-1080P series camera’s basic characteristic is as follows:

1. All in 1( HDMI+USB+SD card) C-mount camera with Sony high sensitivity CMOS sensor;

2. Simultaneous HDMI & USB output;

3. Built-in mouse control;

4. Built-in image capture & video record to SD card;

5. Built-in camera control panel, including exposure(manual/auto)/gain, white balance(lockable), color adjustment, sharpness and denoising control;

6. Built-in toolbar including zoom, mirror, comparison, freeze, cross, browser functions;

7. Built-in image & video browsing, display & play;

8. Ultra-Fine color engine with perfect color reproduction capability(USB2.0);

9. Support standard UVC for Windows/Linux/Mac(USB);

10. With advanced video & image processing application ImageView, which including professional image processing such as 2D measurement, HDR, image stitching, EDF(Extended Depth of Focus), image segmentation & count, image stacking, color composite and denoising(USB);

11. With Lite version software to control the camera and capture video or still images, which includes limited processing features;

12. CNC precision machining shell.

Application

The possible applications of BHC4-1080P series camera are as follows:

1. Scientific research, education (teaching, demonstration and academic exchanges);

2. Digital laboratory, medical research;

3. Industrial visual (PCB examination, IC quality control);

4. Medical treatment (pathological observation);

5. Food (microbial colony observation and counting);

6. Aerospace, military (high sophisticated weapons).

Specification

Order Code

Sensor & Size(mm)

Pixel(μm)

G Sensitivity

Dark Signal

FPS/Resolution

Binning

Exposure

BHC4-1080P2MPA

Sony IMX385(C)

1/2"(7.2x4.05)

3.75x3.75

1175mv with 1/30s

0.15mv with 1/30s

60@1920*1080(HDMI)

50@1920*1080(USB)

1x1

0.04~1000

BHC4-1080P8MPB

Sony IMX415(C)

1/2.8"(5.57x3.13)

1.45x1.45

300mv with 1/30s 0.13mv with 1/30s

30@1920*1080(HDMI)

30@3840*2160(USB)

1x1

0.04~1000

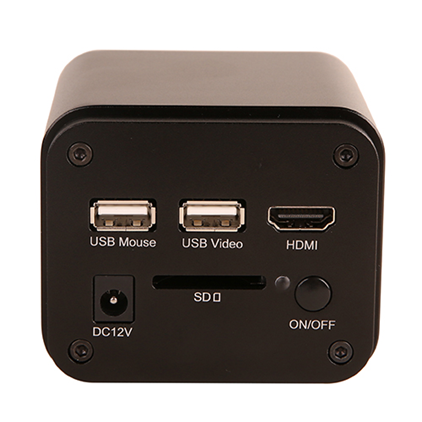

Interface		Function Description
USB Mouse		Connect USB mouse for easy operation with embedded XCamView software;
USB Video		Connect PC or other host device to realize video image transmission;
HDMI		Comply with HDMI1.4 standard. 1080P format video output for standard displayer;
DC12V		Power adapter connection (12V/1A);
SD		Comply with SDIO3.0 standard and SD card could be inserted for video and images storage;
LED		LED status indicator;
ON/OFF		Power switch;
Video Output Interface		Function Description
HDMI Interface		Comply with HDMI1.4 standard; 60fps@1080P;
USB Video Interface		Connecting USB port of PC for video transfer ; MJPEG format video;
Function Name		Function Description
Video Saving		Video format: 1920*1080 H264/H265 encoded MP4 file; Video saving frame rate: 60fps(BHC4-1080P2MPA); 30fps(BHC4-1080P8MPB)
Image Capture		2M (19202160, BHC4-1080P2MPA) JPEG/TIFF image in SD card ; 8M (38402160, BHC4-1080P8MPB) JPEG/TIFF image in SD card ;
Measurement Saving		Measurement information saved in layer mode with image content; Measurement information is saved together with image content in burn in mode.
ISP Function		Exposure(Automatic / Manual Exposure) / Gain, White Balance(Manual / Automatic / ROI Mode), Sharpening, 3D Denoise, Saturation Adjustment, Contrast Adjustment, Brightness Adjustment, Gamma Adjustment, Color to Gray, 50HZ/60HZ Anti-flicker Function
Image Operations		Zoom In/Zoom Out, Mirror/Flip, Freeze, Cross Line, Overlay, Embedded Files Browser, Video Playback, Measurement Function
Embedded RTC(Optional)		To support accurate time on board
Restore Factory Settings		Restore camera parameters to its factory status
Multiple Language Support		English / Simplified Chinese / Traditional Chinese / Korean / Thai / French / German / Japanese / Italian / Russian
	Software Environment under USB Video Output
	White Balance		Auto White Balance
	Color Technique		Ultra-Fine Color Engine
	Capture/Control SDK		Windows/Linux/macOS/Android Multiple Platform SDK (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)
	Recording System		Still Picture or Movie
	Operating System		Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 /10(32 & 64 bit) OSx(Mac OS X) Linux
	PC Requirements		CPU: Equal to Intel Core2 2.8GHz or Higher
			Memory: 4GB or More
			Ethernet Port: RJ45 Ethernet Port
			Display:19” or Larger
			CD-ROM
	OperatingEnvironment
	Operating Temperature (in Centidegree)		-10°~ 50°
	Storage Temperature (in Centidegree)		-20°~ 60°
	Operating Humidity		30~80%RH
	Storage Humidity		10~60%RH
	Power Supply		DC 12V/1A Adapter

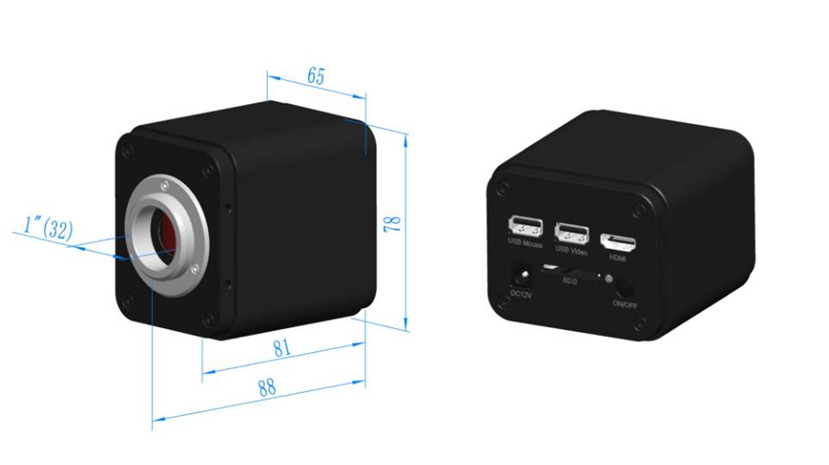

Dimension

Dimension of BHC4-1080P Series Camera

Packing Information

Packing Information of BHC4-1080P Series Camera

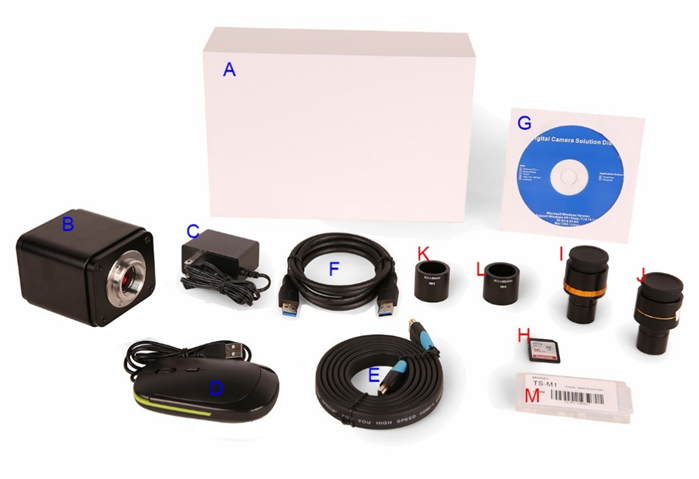

Standard Packing List
A	Gift box: L:25.5cm W:17.0cm H:9.0cm (1pcs,1.47kg/ box)
B	One BHC4-1080P series camera
C	Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A European standard: Model:GS12E12-P1I 12W/12V/1A; TUV(GS)/CB/CE/ROHS American standard: Model: GS12U12-P1I 12W/12V/1A: UL/CUL/BSMI/CB/FCC EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338 EMS Standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3,Class A Light Industry Standard
D	USB Mouse
E	HDMI cable
F	USB2.0 A male to A male gold-plated connectors cable /2.0m
G	CD (Driver & utilities software, Ø12cm)
Optional Accessory
H	SD card(16G or above; Speed: class 10)
I	Adjustable lens adapter	C-Mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope)	108001/AMA037 108002/AMA050 108003/AMA075
J	Fixed lens adapter	C-Mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope)	108005/FMA037 108006/FMA050 108007/FMA075
	Note: For K and L optional items, please specify your camera type(C-mount, microscope camera or telescope camera), engineer will help you to determine the right microscope or telescope camera adapter for your application;
K	108015(Dia.23.2mm to 30.0mm ring)/Adapter rings for 30mm eyepiece tube
L	108016(Dia.23.2mm to 30.5mm ring)/ Adapter rings for 30.5mm eyepiece tube
M	Calibration kit	106011/TS-M1(X=0.01mm/100Div.); 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)

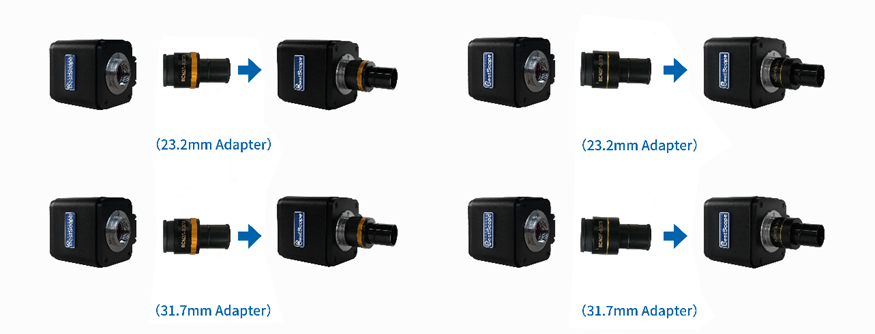

Extension of BHC4-1080P Series Camera

Extension


C-mount Camera

Machine vision; Medical imaging;

Semiconductor equipment; Test instruments;

Document scanners; 2D barcode readers;

Web camera and security video;

Microscope imaging;
