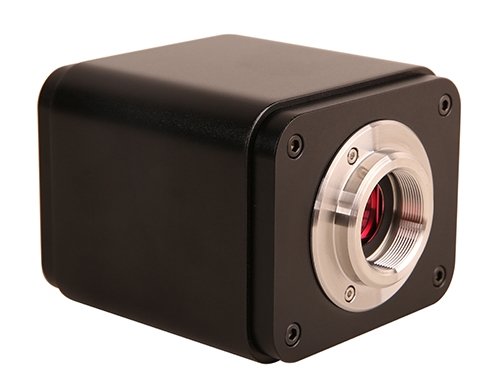

BHC4-1080P2MPA C-Mount HDMI+USB Output CMOS Microscope Camera (Sony IMX385 Sensor, 2.0MP)
Introduction
For HDMI output, The XCamView will be loaded and a camera control panel and toolbar are overlaid on the HDMI dsiplayer, in this case, the USB mouse can be used to set the camera, browse and compare the captured image, play the video ital.
For USB2.0 output, unplug the mouse and plug in the USB2.0 cable to the camera and computer, then the video stream can be transfer to computer with the advanced software ImageView.
The included Windows software ImageView offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection.
For Mac and Linux, there is a lite version of the software ImageView which can capture video and still images, and includes limited processing features.
1.All in 1( HDMI+USB+SD card) C-mount camera with Sony high sensitivity CMOS sensor;
2.Simultaneous HDMI & USB output;
3.Built-in mouse control;
4.Built-in image capture & video record to SD card;
5.Built-in camera control panel, including exposure(manual/auto)/gain, white balance(lockable), color adjustment, sharpness and denoising control;
6.Built-in toolbar including zoom, mirror, comparison, freeze, cross, browser functions;
7.Built-in image & video browsing, display & play;
8.Ultra-Fine color engine with perfect color reproduction capability(USB2.0);
9.Support standard UVC for Windows/Linux/Mac(USB);
10.With advanced video & image processing application ImageView, which including professional image processing such as 2D measurement, HDR, image stitching, EDF(Extended Depth of Focus), image segmentation & count, image stacking, color composite and denoising(USB);
11.With Lite version software to control the camera and capture video or still images, which includes limited processing features;
12.CNC precision machining shell.
Application
1.Scientific research, education (teaching, demonstration and academic exchanges);
2.Digital laboratory, medical research;
3.Industrial visual (PCB examination, IC quality control);
4.Medical treatment (pathological observation);
5.Food (microbial colony observation and counting);
6.Aerospace, military (high sophisticated weapons).
Specification
Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal | FPS/Resolution | Binning | Exposure |
BHC4-1080P2MPA | Sony IMX385(C) 1/2"(7.2x4.05) | 3.75x3.75 | 1175mv with 1/30s 0.15mv with 1/30s | 60@1920*1080(HDMI) 50@1920*1080(USB) | 1x1 | 0.04~1000 |
BHC4-1080P8MPB | Sony IMX415(C) 1/2.8"(5.57x3.13) | 1.45x1.45 | 300mv with 1/30s 0.13mv with 1/30s | 30@1920*1080(HDMI) 30@3840*2160(USB) | 1x1 | 0.04~1000 |
Interface | Function Description |
USB Mouse | Connect USB mouse for easy operation with embedded XCamView software; |
USB Video | Connect PC or other host device to realize video image transmission; |
HDMI | Comply with HDMI1.4 standard. 1080P format video output for standard displayer; |
DC12V | Power adapter connection (12V/1A); |
SD | Comply with SDIO3.0 standard and SD card could be inserted for video and images storage; |
LED | LED status indicator; |
ON/OFF | Power switch; |
Video Output Interface | Function Description |
HDMI Interface | Comply with HDMI1.4 standard; 60fps@1080P; |
USB Video Interface | Connecting USB port of PC for video transfer ; MJPEG format video; |
Function Name | Function Description |
Video Saving | Video format: 1920*1080 H264/H265 encoded MP4 file; Video saving frame rate: 60fps(BHC4-1080P2MPA); 30fps(BHC4-1080P8MPB) |
Image Capture | 2M (1920*2160, BHC4-1080P2MPA) JPEG/TIFF image in SD card ; 8M (3840*2160, BHC4-1080P8MPB) JPEG/TIFF image in SD card ; |
Measurement Saving | Measurement information saved in layer mode with image content; Measurement information is saved together with image content in burn in mode. |
ISP Function | Exposure(Automatic / Manual Exposure) / Gain, White Balance(Manual / Automatic / ROI Mode), Sharpening, 3D Denoise, Saturation Adjustment, Contrast Adjustment, Brightness Adjustment, Gamma Adjustment, Color to Gray, 50HZ/60HZ Anti-flicker Function |
Image Operations | Zoom In/Zoom Out, Mirror/Flip, Freeze, Cross Line, Overlay, Embedded Files Browser, Video Playback, Measurement Function |
Embedded RTC(Optional) | To support accurate time on board |
Restore Factory Settings | Restore camera parameters to its factory status |
Multiple Language Support | English / Simplified Chinese / Traditional Chinese / Korean / Thai / French / German / Japanese / Italian / Russian |
Software Environment under USB Video Output | |
White Balance | Auto White Balance |
Color Technique | Ultra-Fine Color Engine |
Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) |
Recording System | Still Picture or Movie |
Operating System | Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 /10(32 & 64 bit) OSx(Mac OS X) Linux |
PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher |
Memory: 4GB or More | |
Ethernet Port: RJ45 Ethernet Port | |
Display:19” or Larger | |
CD-ROM | |
OperatingEnvironment | |
Operating Temperature (in Centidegree) | -10°~ 50° |
Storage Temperature (in Centidegree) | -20°~ 60° |
Operating Humidity | 30~80%RH |
Storage Humidity | 10~60%RH |
Power Supply | DC 12V/1A Adapter |

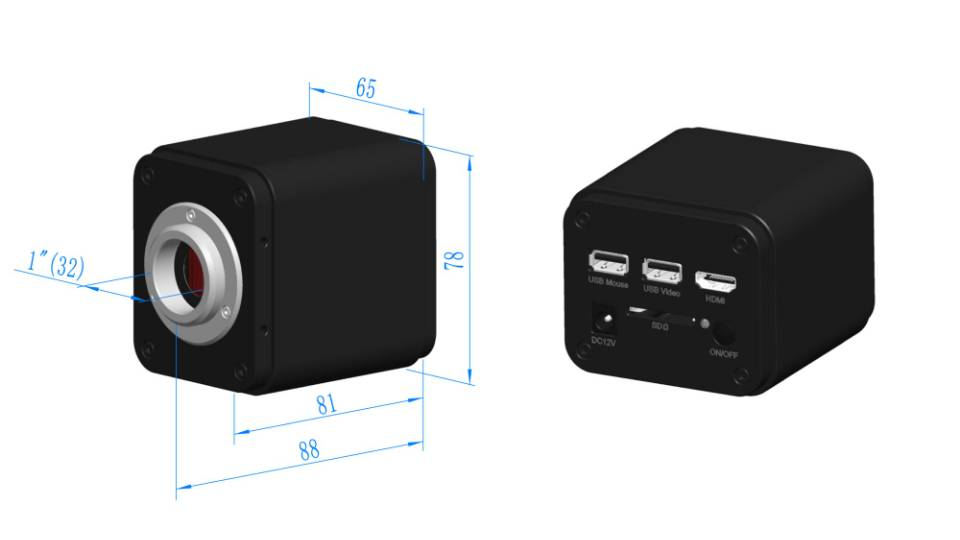

Dimension
Dimension of BHC4-1080P Series Camera

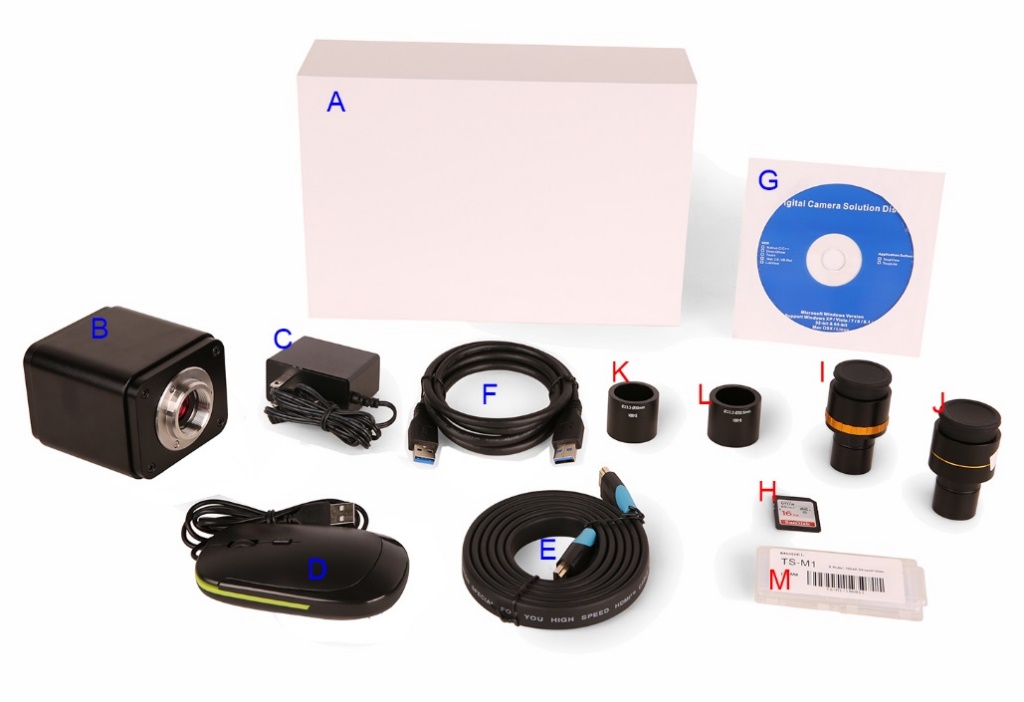

Packing Information
Packing Information of BHC4-1080P Series Camera
Standard Packing List | |||
A | Gift box: L:25.5cm W:17.0cm H:9.0cm (1pcs,1.47kg/ box) | ||
B | One BHC4-1080P series camera | ||
C | Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A European standard: Model:GS12E12-P1I 12W/12V/1A; TUV(GS)/CB/CE/ROHS American standard: Model: GS12U12-P1I 12W/12V/1A: UL/CUL/BSMI/CB/FCC EMI Standard: EN55022, EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338 EMS Standard: EN61000-4-2,3,4,5,6,8,11, EN61204-3, Class A Light Industry Standard | ||
D | USB Mouse | ||
E | HDMI cable | ||
F | USB2.0 A male to A male gold-plated connectors cable /2.0m | ||
G | CD (Driver & utilities software, Ø12cm) | ||
Optional Accessory | |||
H | SD card(16G or above; Speed: class 10) | ||

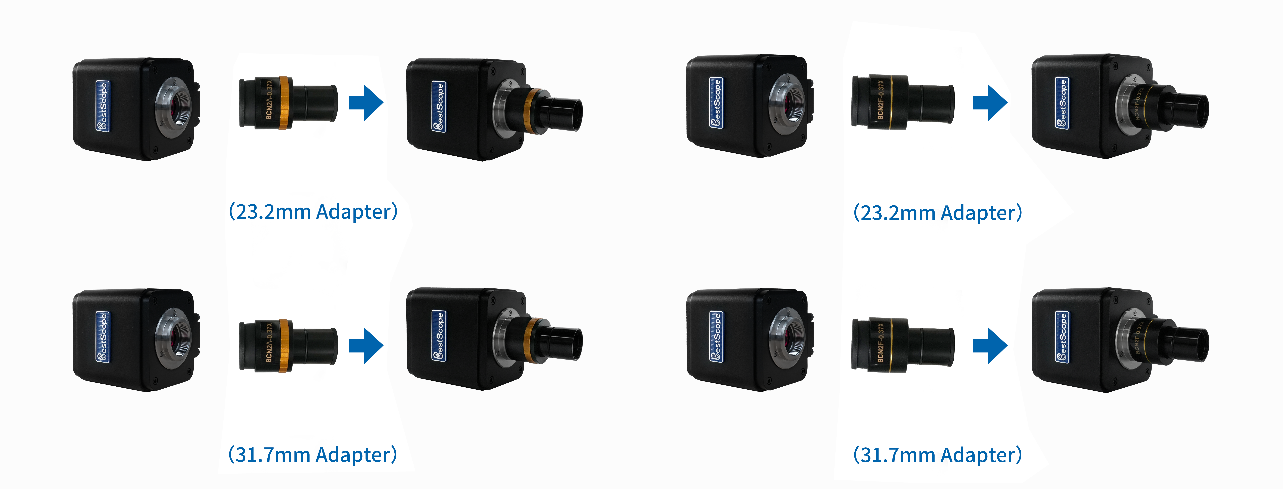

I | Adjustable lens adapter | C-Mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope) | 108001/AMA037 108002/AMA050 108003/AMA075 |
J | Fixed lens adapter | C-Mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope) | 108005/FMA037 108006/FMA050 108007/FMA075 |
Note: For K and L optional items, please specify your camera type(C-mount, microscope camera or telescope camera), engineer will help you to determine the right microscope or telescope camera adapter for your application; | |||
K | 108015(Dia.23.2mm to 30.0mm ring)/Adapter rings for 30mm eyepiece tube | ||
L | 108016(Dia.23.2mm to 30.5mm ring)/ Adapter rings for 30.5mm eyepiece tube | ||
M | Calibration kit | 106011/TS-M1(X=0.01mm/100Div.); 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.) | |
Extension of BHC4-1080P Series Camera
Extension | Picture | |
C-mount Camera |
| Machine vision; Medical imaging; |
Microscope Camera |
| |
Telescope Camera | ||
